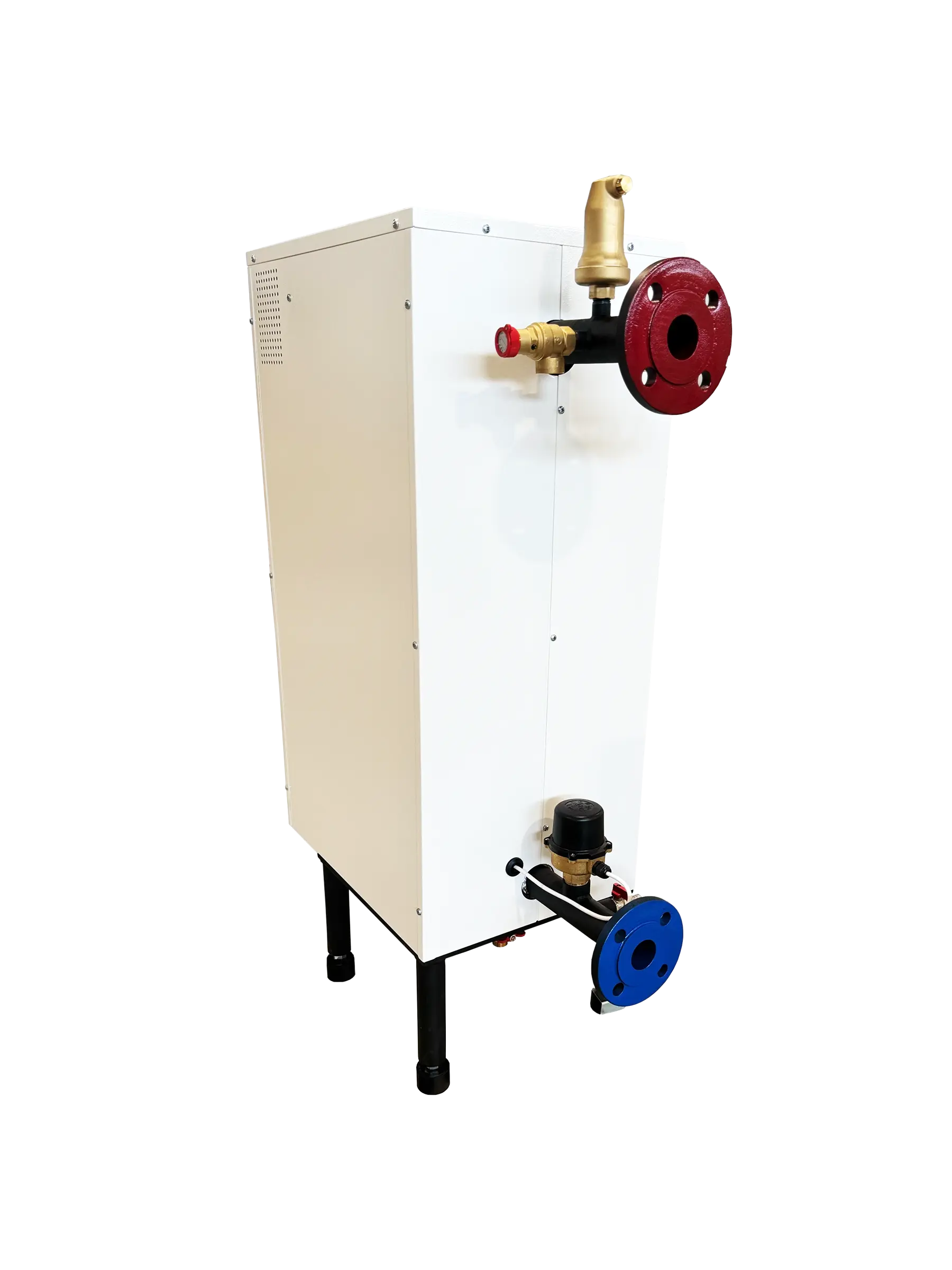

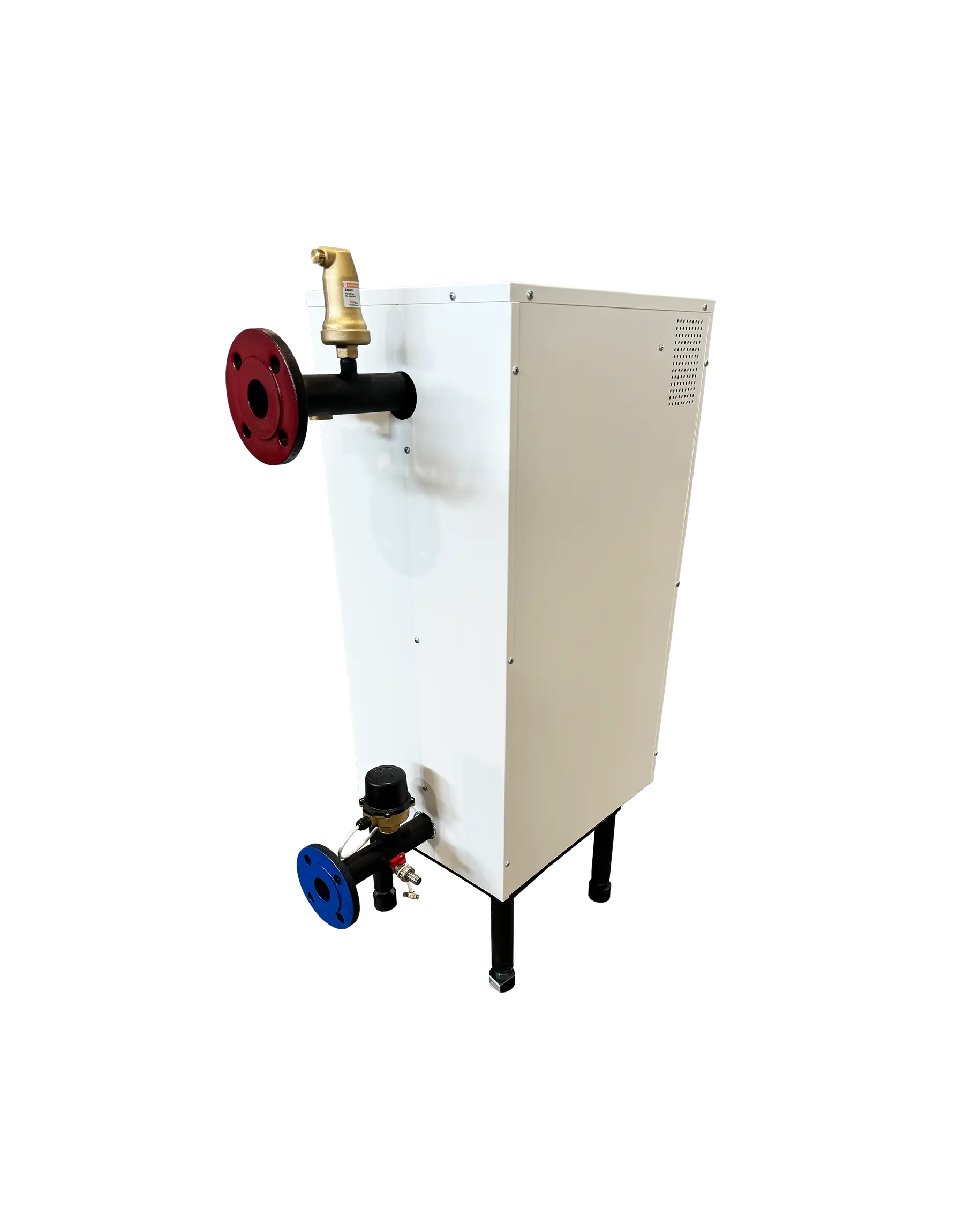

Mikoterm TK-24 Professional - Electric boiler (70 kW, 6 bar)

Mikoterm TK-24 Professional - Electric boiler (70 kW, 6 bar)

Request access

Op nalevering

Item number: 382706
EAN: 8606026612351

70 kW electric boiler for heavy-duty utility/industrial use. Max. working pressure 6 bar (tested 7 bar). 10 kW modules, microprocessor control, cascade-ready. Read more

Other variants

70 kW, 4 bar

Request access

70 kW for high-pressure industrial networks
Max. working pressure 6 bar, tested 7 bar
10 kW modular groups, 3-s intervals
Runtime-sequenced control logic
Cascade-ready, low modification overhead
Reinforced, coated steel construction
Multi-level industrial safety

Compare

Go to comparison

Industrial heating for high-pressure networks

The TK-24 Professional (70 kW, 6 bar) serves production halls, process heat loops and complex district sub-nets requiring high availability.

Maximum working pressure and testing

Reinforced design, pressure-tested to 7 bar and rated for 6 bar max. Powder-coated steel chassis and reinforced flanges ensure durability under load.

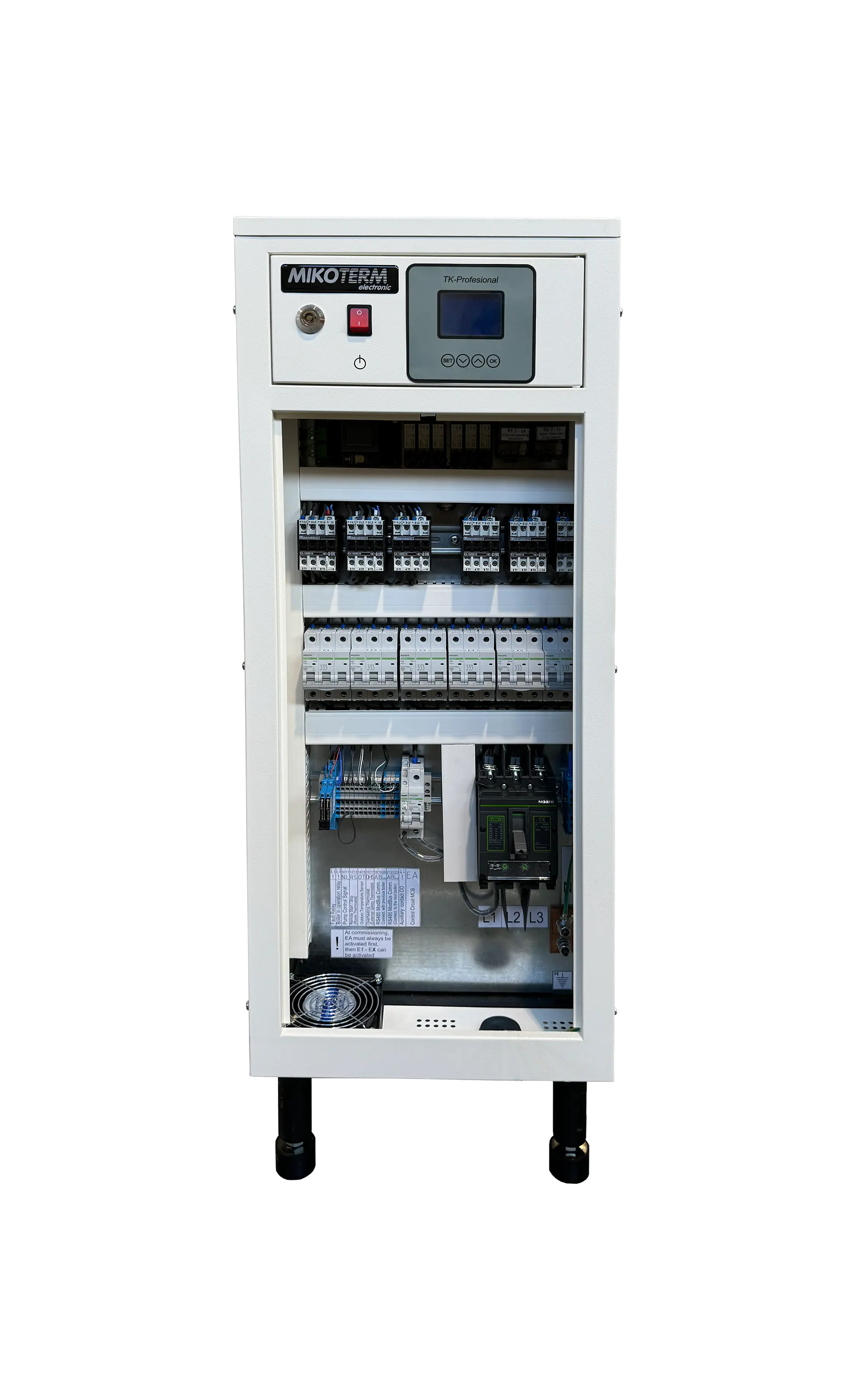

Control architecture and modular output

LCD interface with 10–90 °C in 1 °C steps. 70 kW delivered via 10 kW groups with 3-second intervals; runtime-based sequencing balances wear.

Cascade operation and integration

Ideal for cascade arrays where parallel boilers provide scalable capacity with minimal plant modifications.

Safety and uptime

Real-time pressure/temperature monitoring, staged element shutdowns and full isolation under critical conditions—engineered for 24/7 duty.

Audience and deployment

Professional/industrial use only; not for regular homes. Commissioned by certified contractors.

Support from Hewa

Engineering support, documentation and dependable logistics for on-time commissioning.

Generals
Item number	382706
EAN Code	8606026612351
Sizes ((LxWxH):)	67 x 50 x 122 cm
Specification list
Dimension (W×D×H) mm	500x665x1220 mm
Weight (kg)	130 kg
Water volume in boiler (L)	90 L
Water pipe connection size	G 2" F
Max. concentration of glycol in the medium (%)	30 %
Min. allowable working pressure (software) (bar)	0.4 bar
Max. allowable working pressure (software) (bar)	6 bar
Safety valve (bar)	7 bar
Protection level	IP20
Power supply	3 Ph - 400/230V 50Hz
Power efficiency (%)	99 %
Number of heating elements	7
Power distribution (kW)	7 x 10 kW
Fuses of the heating elements (A)	7 x 3p C25 A
Compact switch (36kA) with voltage release	Noark Ex9M1S 160A (36kA)
Nominal current (A)	3 x 101.5 A
Recommended main fuses (A)	3 x 125 A
Minimum cross-section of the power cable (mm²)	3 x 35 mm²
Minimum cross-section of the protective conductor (mm²)	1 x 25 mm²
Temperature range (°C)	10 - 90 °C
Safety thermostat (°C)	95 °C
Microprocessor thermoregulator (CPU)	EK_CPU_1_5 fw: vs15.03.005
Communication with cascade / protocol	RS485_RTU / ModBus
Communication with BMS / protocol	RS485_RTU / ModBus

Document	Action
Installation guide
Installation manual PDF	Download
Modbus RTU-Handbuch PDF	Download
