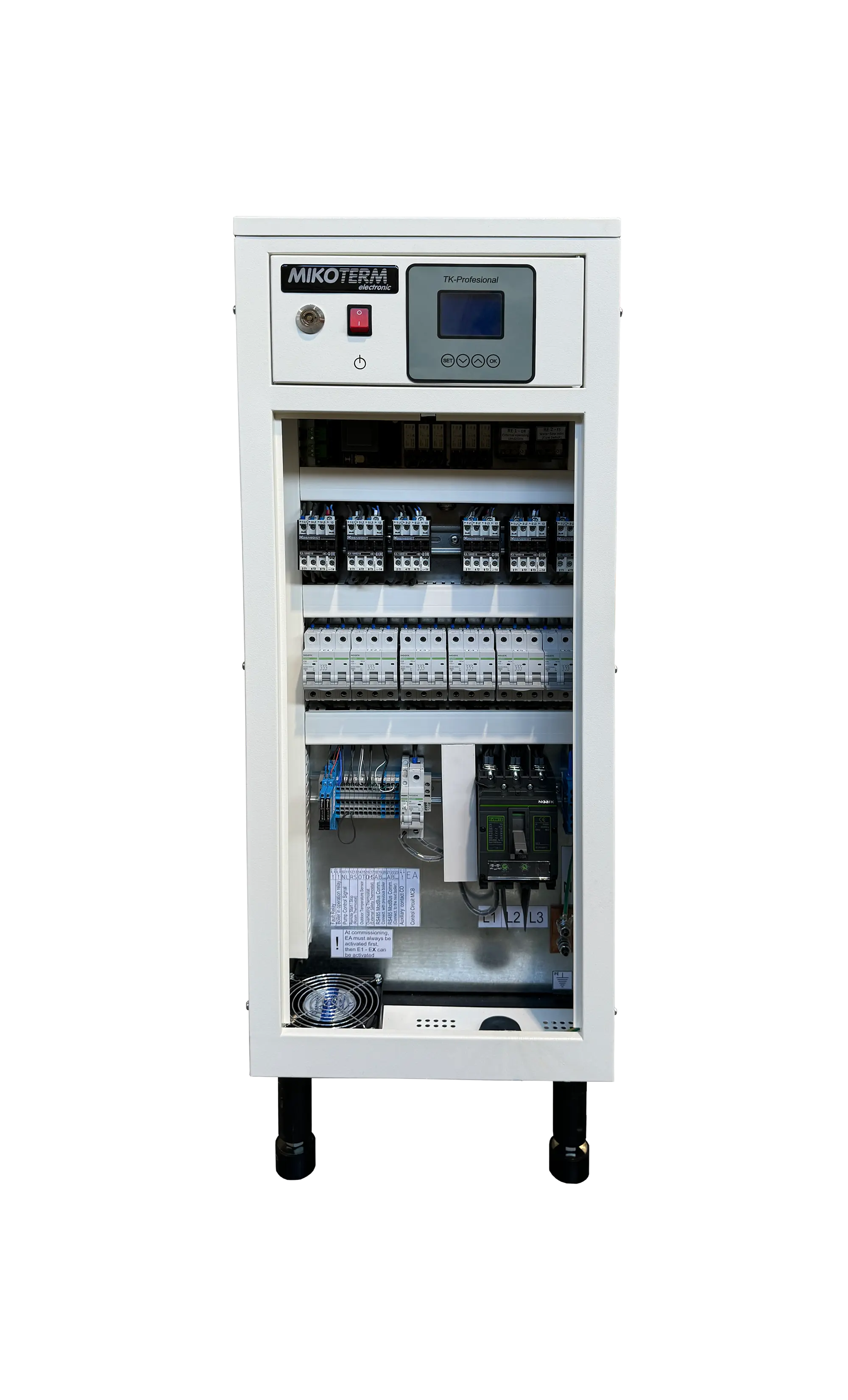

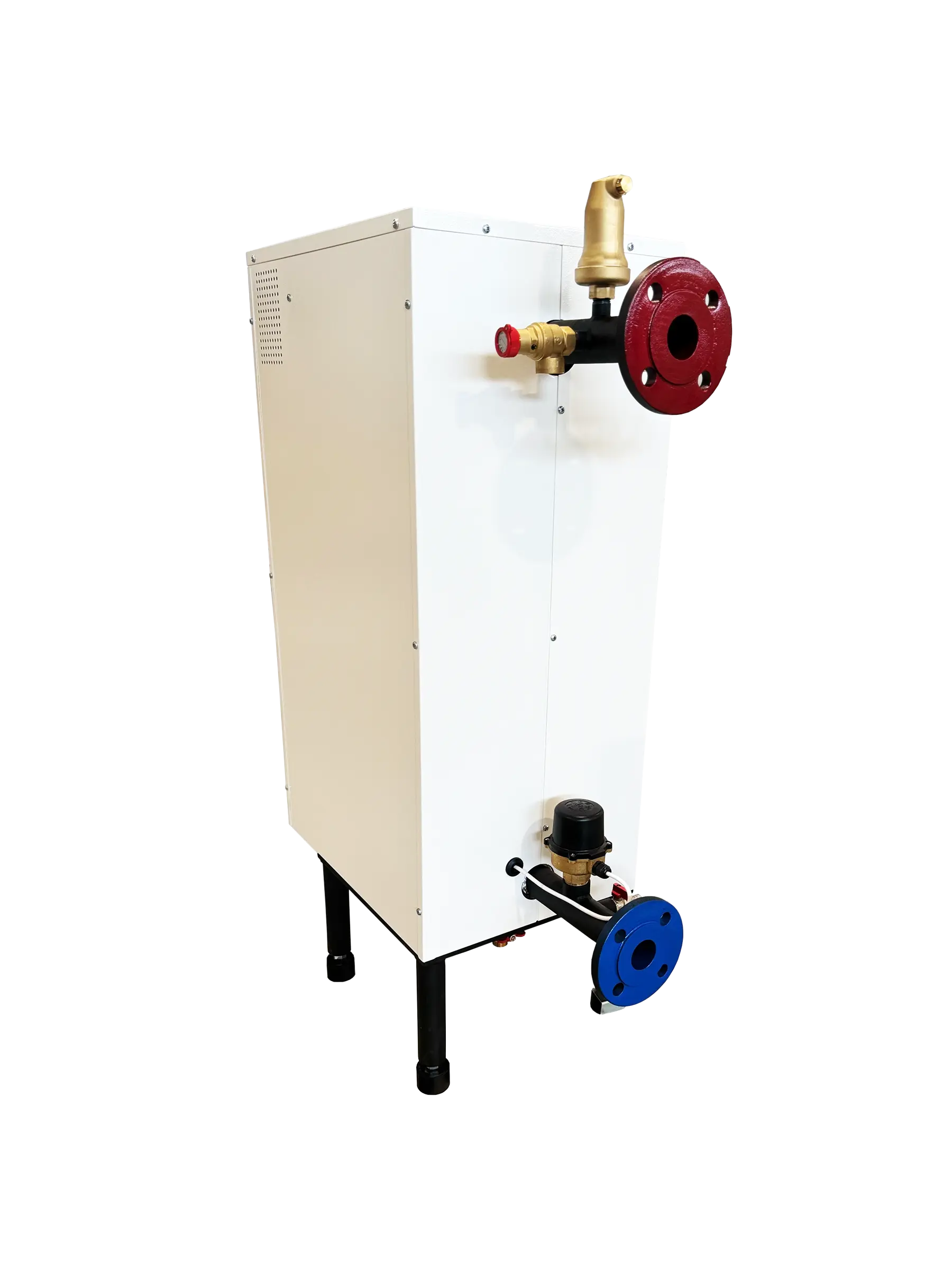

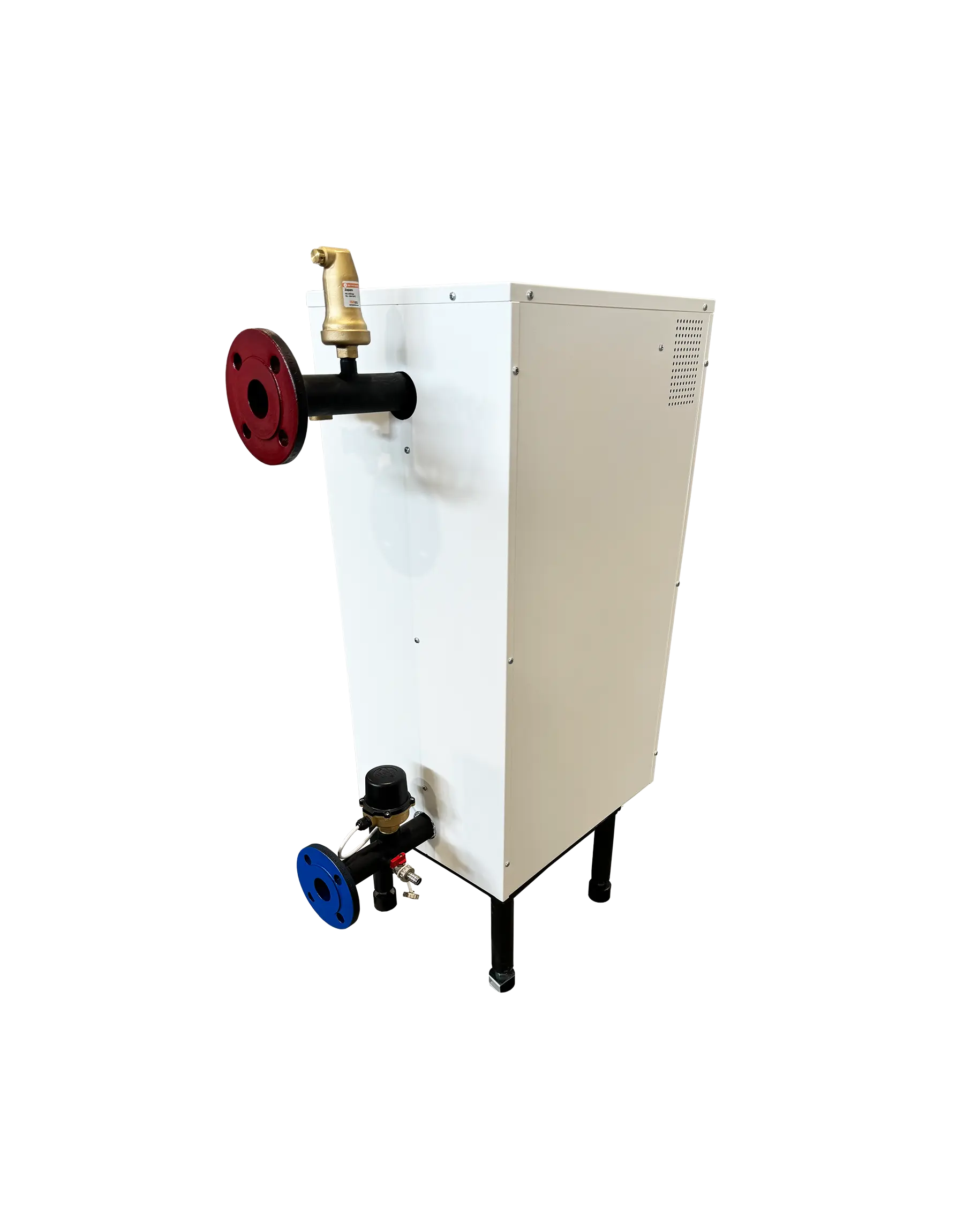

Mikoterm TK-24 Professional - Electric boiler (140 kW, 6 bar)

Mikoterm TK-24 Professional - Electric boiler (140 kW, 6 bar)

Request access

Op nalevering

Item number: 382146
EAN: 8606026612405

140 kW electric boiler (6 bar) for industrial high-pressure systems. Max. working pressure 6 bar (tested 7 bar). RS/Modbus included. Read more

Other variants

140 kW, 4 bar

Request access

140 kW output for chemical, metal and food industries
Max. working pressure 6 bar, tested to 7 bar
Modular 10 kW groups with 3-second switching
RS/Modbus-ready for SCADA integration
Cascade operation with redundancy options
Heavy-duty construction for high-pressure networks
Designed for 24/7 continuous operation

Compare

Go to comparison

Heating solution for energy-intensive industries

The Mikoterm TK-24 Professional (140 kW, 6 bar) is designed for demanding applications in the chemical, metal and food sectors. With 140 kW output and a maximum pressure of 6 bar, it ensures reliable heating for critical processes.

Maximum working pressure and testing

Pressure-tested up to 7 bar and rated for continuous use at 6 bar. Reinforced steel housing and flanges guarantee safe operation in high-pressure networks.

Modular power management

140 kW divided into 10 kW groups, switched in 3-second intervals. LCD microprocessor allows precise adjustment between 10 and 90 °C.

RS and Modbus integration

Equipped with RS and Modbus protocols for seamless integration into SCADA and energy management systems. Central monitoring and real-time control improve process reliability.

Cascade and redundancy

Cascade-ready for large-scale clusters. Redundancy ensures reliability even in case of unit failure.

Safety and continuous operation

Multi-level safety with pressure and temperature monitoring. Fail-safe shutdown provides secure performance for continuous 24/7 use.

Support from Hewa

Hewa supplies the TK-24 Professional (140 kW, 6 bar) with full documentation, Modbus setup and engineering support.

Generals
Item number	382146
EAN Code	8606026612405
Sizes ((LxWxH):)	67 x 61 x 147 cm
Specification list
Dimension (W×D×H) mm	605x665x1470 mm
Weight (kg)	200 kg
Water volume in boiler (L)	165 L
Water pipe connection size	G 2 1/2" F
Max. concentration of glycol in the medium (%)	30 %
Min. allowable working pressure (software) (bar)	0.4 bar
Max. allowable working pressure (software) (bar)	6 bar
Safety valve (bar)	7 bar
Protection level	IP20
Power supply	3 Ph - 400/230V 50Hz
Power efficiency (%)	99 %
Number of heating elements	7
Power distribution (kW)	7 x 20 kW
Fuses of the heating elements (A)	7 x 3p C40 A
Compact switch (36kA) with voltage release	2x Noark Ex9M1S 160A (36kA)
Nominal current (A)	3 x 203 A
Recommended main fuses (A)	3 x 250 A
Minimum cross-section of the power cable (mm²)	3 x 35 mm² (2x)
Minimum cross-section of the protective conductor (mm²)	1 x 16 mm²
Temperature range (°C)	10 - 90 °C
Safety thermostat (°C)	95 °C
Microprocessor thermoregulator (CPU)	EK_CPU_1_5 fw: vs15.03.005
Communication with cascade / protocol	RS485_RTU / ModBus
Communication with BMS / protocol	RS485_RTU / ModBus

Document	Action
Installation guide
Installation manual PDF	Download
Modbus RTU-Handbuch PDF	Download
