Complete Solar Water Heating Set 1x 30HP + Hot Water Tank with 2 Heat Exchangers (300L)

Complete solar solution for hot water

The Complete Solar Water Heating Set – 1x 30HP + 300L Tank with 2 Heat Exchangers provides an efficient and environmentally friendly way to produce domestic hot water using solar energy. This package includes all essential components built to European quality standards, offering reliable and energy-efficient performance.

High efficiency with 30-tube solar collector

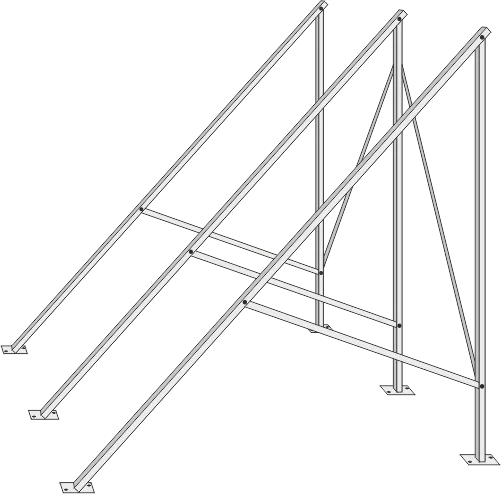

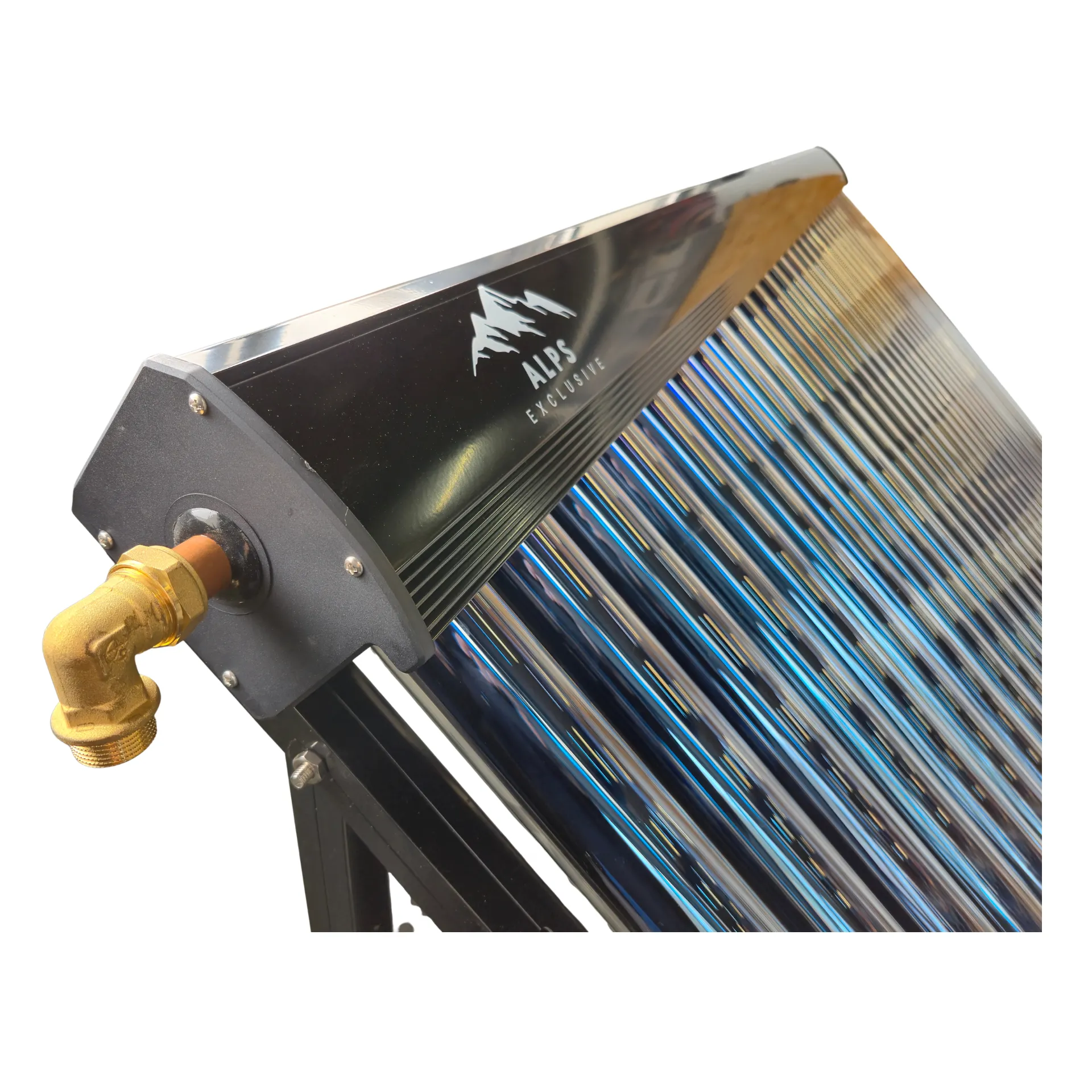

The included AE-00030-HP(V2) solar collector features 30 evacuated tubes with advanced heat pipe technology. It converts sunlight into heat efficiently, even under low or diffuse light conditions. With a durable aluminium frame and weather-resistant design, it can be mounted on flat or pitched roofs.

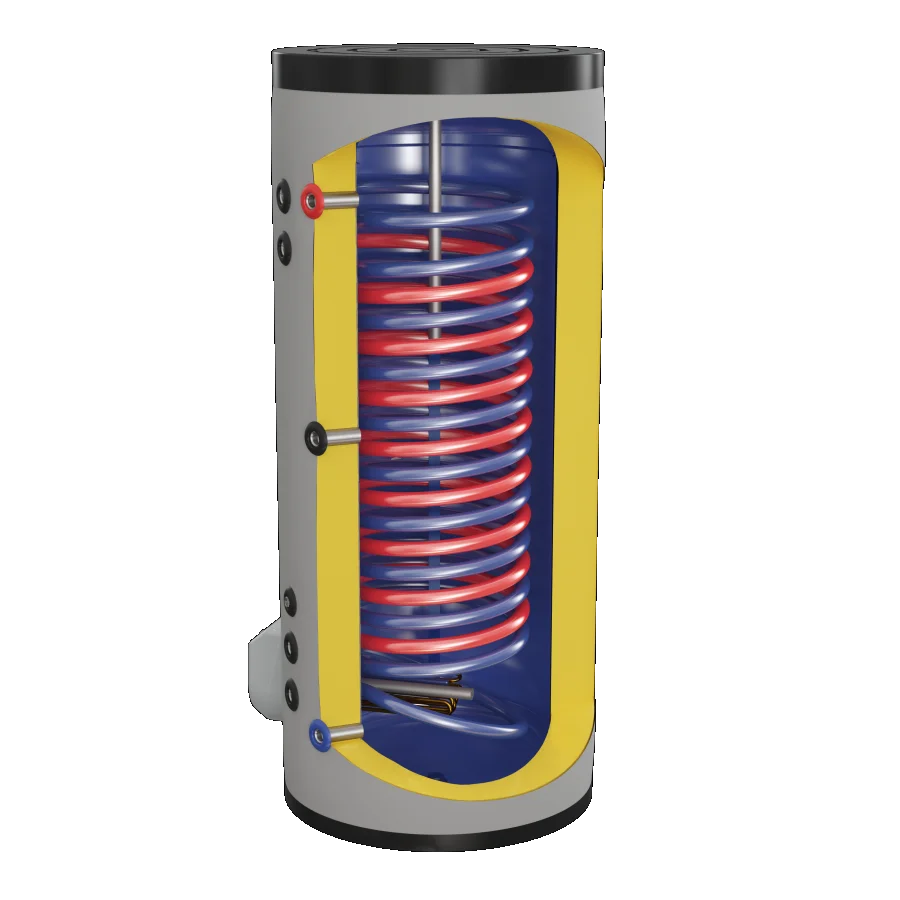

300L hot water tank with dual heat exchangers

The 300-litre tank includes two integrated heat exchangers that transfer solar energy efficiently to the water. A second coil can be connected to a central heating boilers or heat pumps for additional heating support, creating a fully integrated, hybrid-ready system.

Easy to install and low maintenance

The set includes a complete pump and controller unit with sensors, an expansion vessel and pre-mixed solar fluid. The insulated stainless steel hoses simplify installation and reduce heat loss. With minimal maintenance requirements, this system is built for long-term, trouble-free operation.

Energy savings and sustainability

By using renewable solar energy, this system lowers your heating costs and reduces CO₂ emissions. It is a smart, future-proof investment that pays for itself over time through energy savings and sustainability benefits.

Set components

• 1x AE-00030-HP(V2) solar collector (240 cm wide x 200 cm high, 92 kg)
• 1x 300L hot water tank with 2 heat exchangers (height: 158 cm, Ø 66 cm)
• 1x Safety and inlet combination set
• 1x Expansion vessel 18L
• 1x 20L solar heat transfer fluid

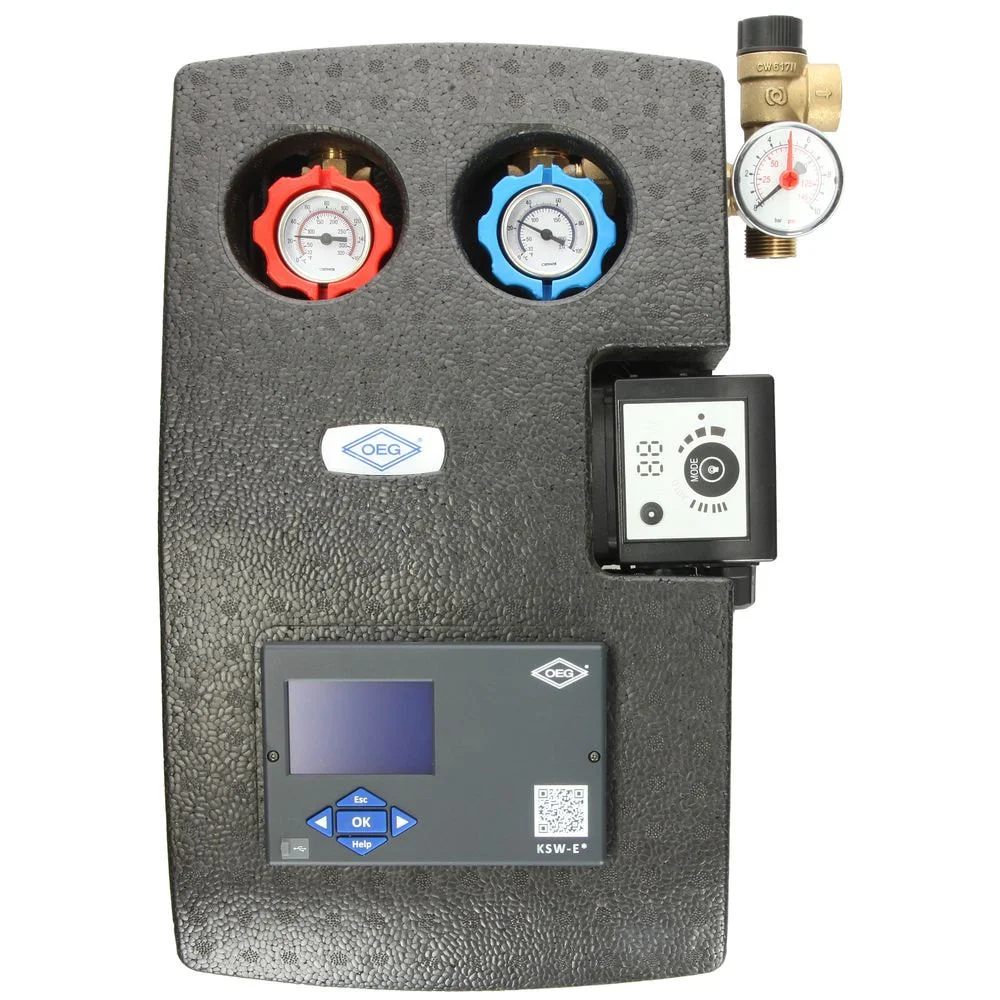

• 1x OEG controller and pump unit with sensors
• 1x 10m stainless steel solar hose with insulation and fittings

Technical specifications

• Collector area: 4.8 m²
• Max. working pressure: 8 bar
• Insulation: 30 mm polyurethane foam + 20 mm mineral wool

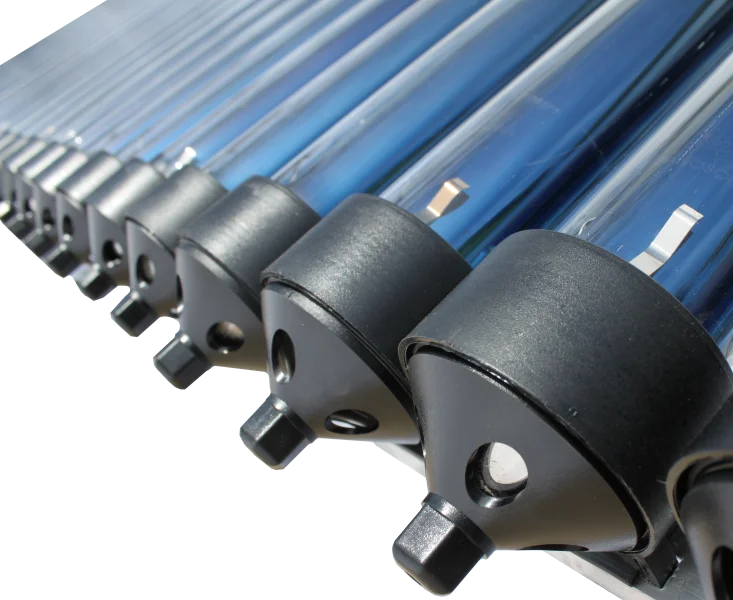

• Vacuum tubes: borosilicate glass 58x1800 mm
• Tank: steel with anti-corrosion coating
• Suitable for solar and heating integration
