Complete Solar Heating Set 3x 30HP + Buffer Tank with DHW Coil and 2 Heat Exchangers (1000L)

Complete Solar Heating Set 3x 30HP + Buffer Tank with DHW Coil and 2 Heat Exchangers (1000L)

Price excl. VAT€ 5.867,73Price incl. VAT€ 7.099,95

Op nalevering

Subsidy: € 2.036,00
ISDE subsidy code: KA20707
Item number: ZB18330102

Solar heating system with 3x 30-tube collectors and 1000L buffer tank with DHW coil and 2 heat exchangers. Sustainable, powerful and efficient. Read more

Complete solar heating system with 3 collectors and 1000L buffer tank
Stainless steel DHW coil for direct hot water supply
Two integrated heat exchangers for maximum efficiency
Stores surplus solar heat for heating support
Suitable for residential and commercial use
European-quality components, easy to install

Compare

Go to comparison

Powerful solar system for domestic hot water and heating

The Complete Solar Heating Set – 3x 30HP + 1000L Buffer Tank with DHW Coil and 2 Heat Exchangers provides an advanced, energy-efficient solution for hot water and central heating. Ideal for households and commercial buildings with high heat demand.

High output with three 30-tube collectors

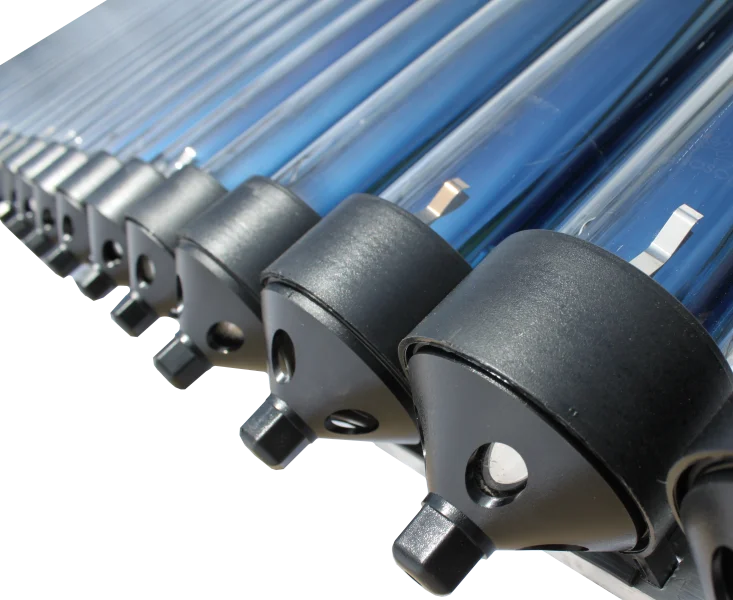

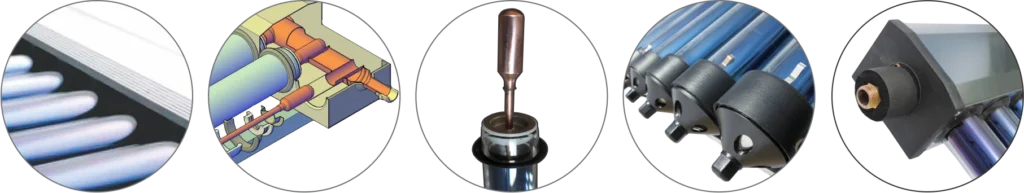

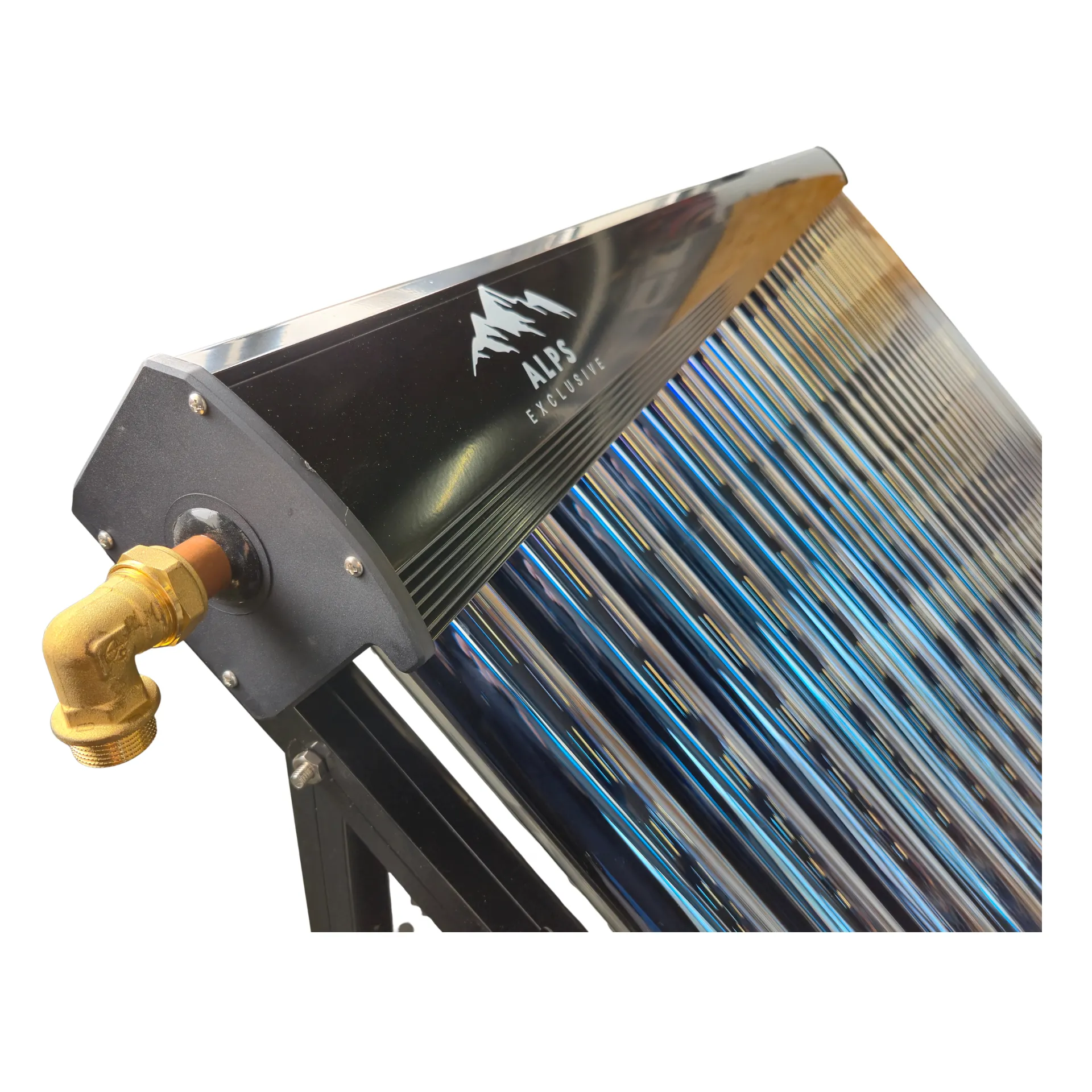

The set includes three AE-00030-HP(V2) solar collectors, each equipped with 30 evacuated tubes and heat pipe technology. These collectors deliver high efficiency even under low solar radiation. The robust aluminium frame ensures reliable installation on flat or pitched roofs.

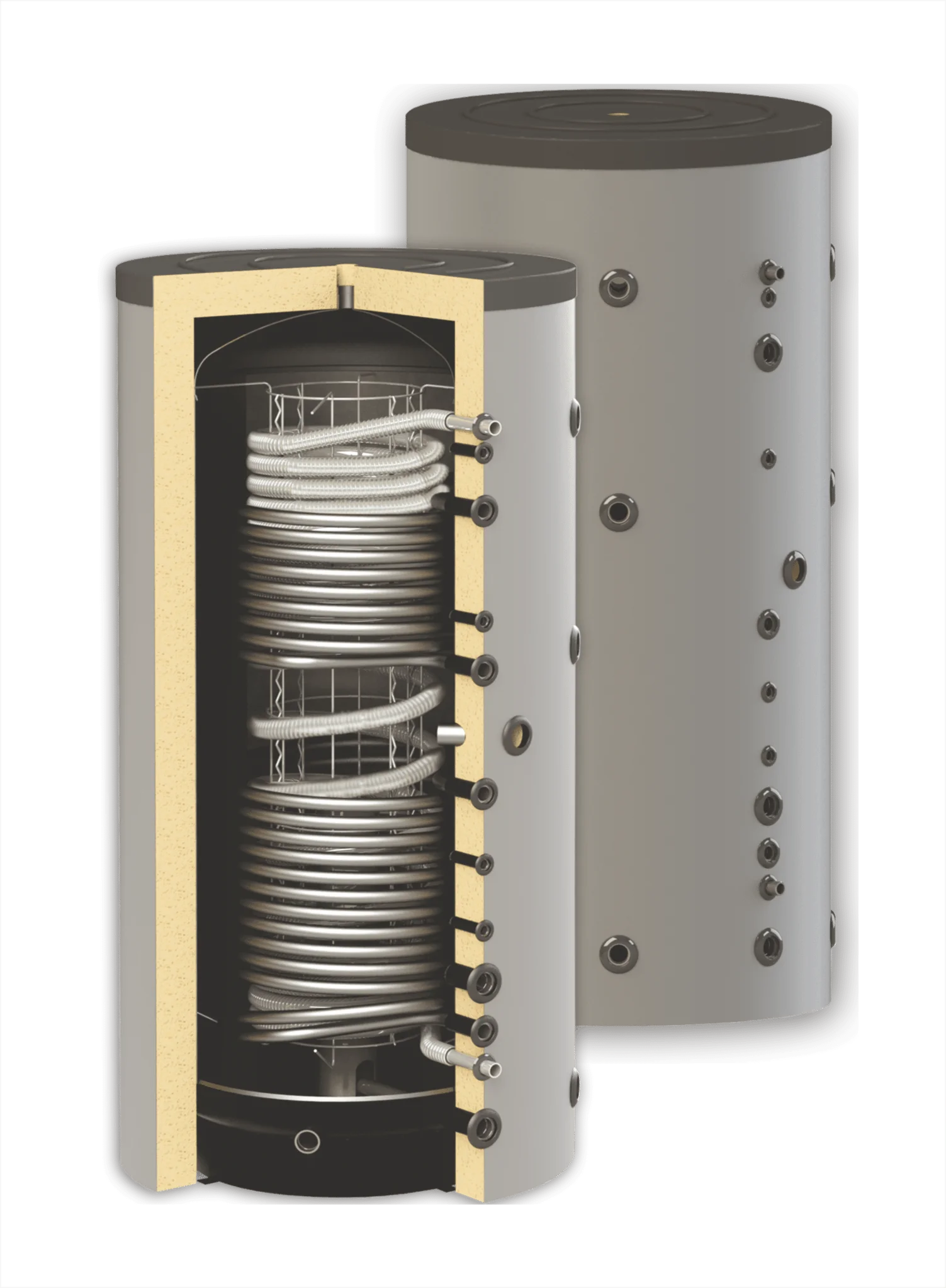

1000L buffer tank with stainless steel DHW coil

The 1000-litre buffer tank stores heated water for both domestic hot water and heating systems. Its stainless steel DHW coil provides instant hygienic hot water, while the dual heat exchangers ensure efficient heat transfer and minimal losses.

Efficient and environmentally friendly

By utilising solar energy, this system reduces fossil fuel consumption and energy costs. It qualifies for the ISDE subsidy of €2036 (code KA20707), making it an economical and sustainable investment.

Easy installation and reliable operation

The set includes all essential components – pump and controller unit, sensors, expansion vessels, solar fluid and pre-insulated stainless steel hoses. This ensures quick installation, long lifespan and minimal maintenance.

Set components

3x AE-00030-HP(V2) solar collectors (240 cm wide x 200 cm high, 92 kg each)
1x 1000L buffer tank with stainless steel DHW coil and 2 heat exchangers (height: 209 cm, Ø 99 cm)
1x inlet combination set
1x expansion vessel 18L + 1x 100L

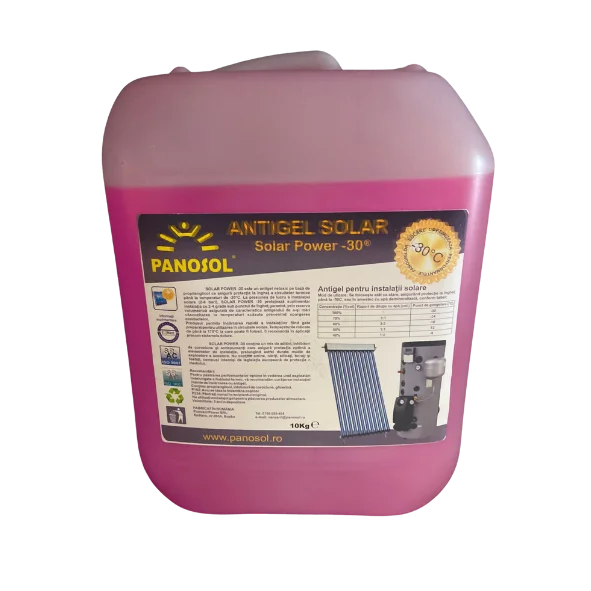

1x 20L solar heat transfer fluid

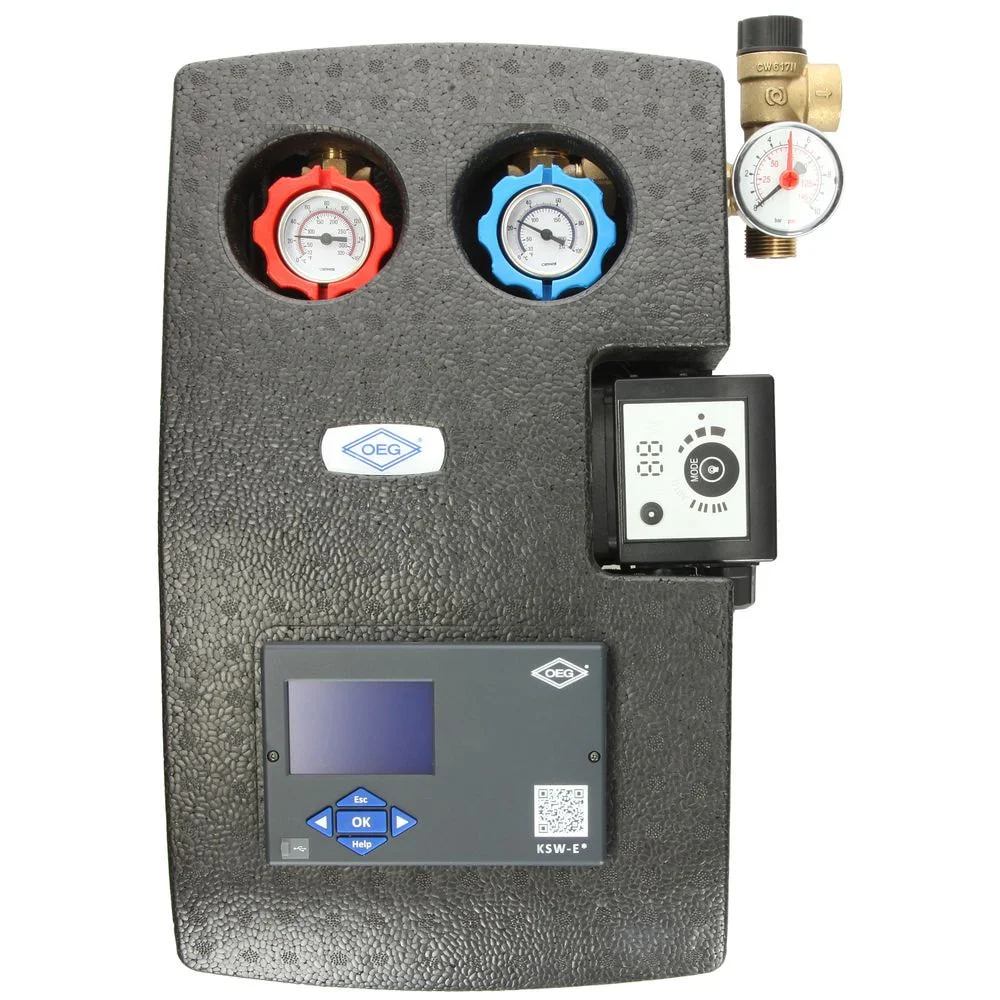

1x OEG controller set with pump and sensors
1x 10m stainless steel solar hose with insulation and fittings

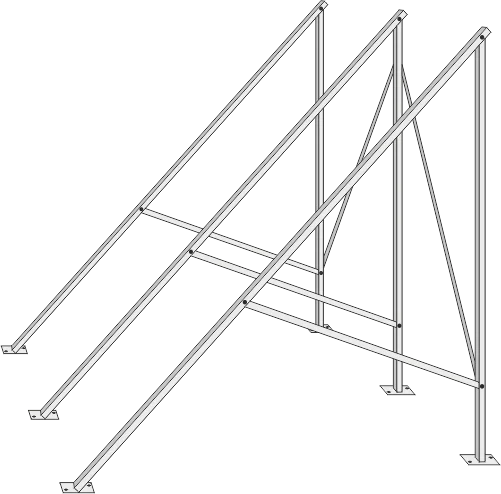

3x roof mounting kits (flat or tiled roof – specify preference)

Technical specifications

Total collector area: 14.4 m²
Max. working pressure: 8 bar
Tank insulation: 100 mm PU foam with PVC cover
DHW coil: stainless steel
ISDE subsidy: €2036 (code KA20707)

The Hewa advantage

At Hewa, we provide complete solar systems with technical documentation, expert support and fast delivery. Looking to combine this system with heat pumps or a hybrid-installation? Get in touch with Hewa for tailored advice or a detailed quotation.

Generals
Item number	ZB18330102
Price excl. VAT	€ 5.867,73
Price incl. VAT	€ 7.099,95
Sizes ((LxWxH):)	100 x 120 x 210 cm
Specification list
Dimensions (D x W x H)	2400 x 1990 x 125 mm
Weight	92 kg
Absorption surface area	2.98 m²
Total surface area	4.78 m²
Liquid capacity	2500 ml
Maximum pressure	800kpa/116Psi
Heat pipe stagnation temperature	180°C
Vacuum tube stagnation temperature:	280°C
Maximum power	1940 W / 6630 Btu
Ideal flow rate	2.5 L/min
Pressure drop at ideal flow rate	1.6 KPa (16 mbar)
Maximum flow rate	18 L/min
Daily heating capacity (Δ40°C)	210-300 L
