Complete Solar Heating Set - 2x 30HP + Buffer Tank with DHW Coil and 2 Heat Exchangers (500L)

Complete Solar Heating Set - 2x 30HP + Buffer Tank with DHW Coil and 2 Heat Exchangers (500L)

Price excl. VAT€ 4.544,63Price incl. VAT€ 5.499,00

Op nalevering

Subsidy: € 1.645,00
ISDE subsidy code: KA29494
Item number: ZB18230501

Solar heating set with 2×30-tube collectors and 500L buffer tank with stainless steel DHW coil and 2 heat exchangers. Heating support included. ISDE €1645. Read more

Complete system with 2 solar collectors and 500L buffer tank
Stainless steel DHW coil for instant, hygienic hot water
2 heat exchangers for efficient transfer and heating support
High output even in diffuse light conditions
European-quality components, easy installation
Low-maintenance and future-proof

Compare

Go to comparison

Sustainable, high-yield system for DHW and heating support

The Complete Solar Heating Set - 2x 30HP + 500L Buffer Tank with DHW Coil and 2 Heat Exchangers maximises solar energy for reliable domestic hot water and space-heating support. Want lower energy bills and reduced CO₂ emissions? This is your next step.

Strong output with two 30-tube collectors

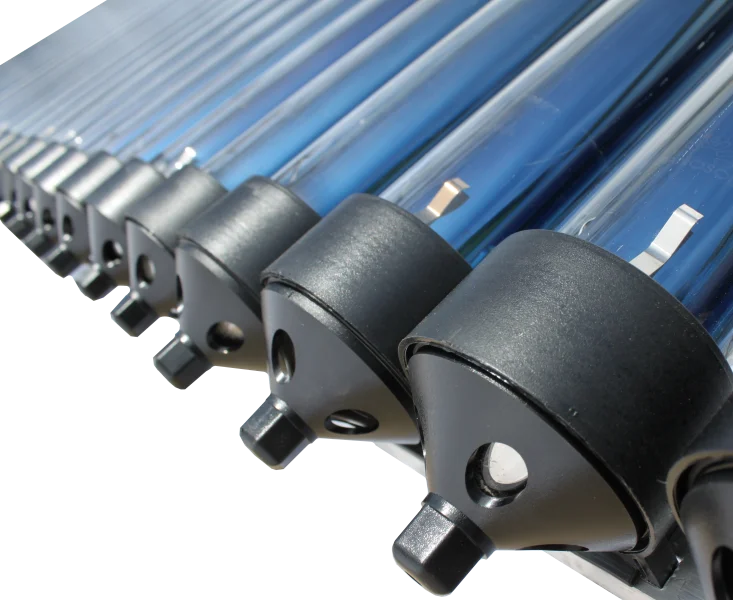

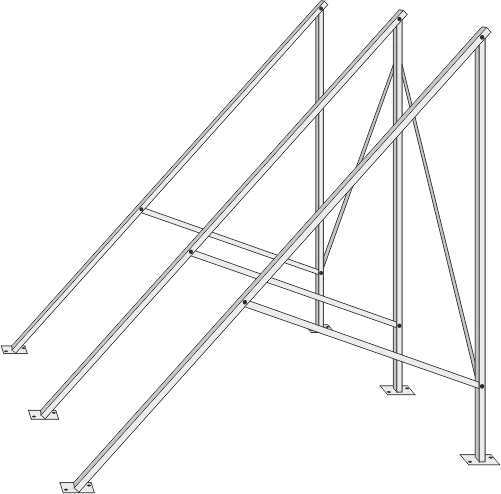

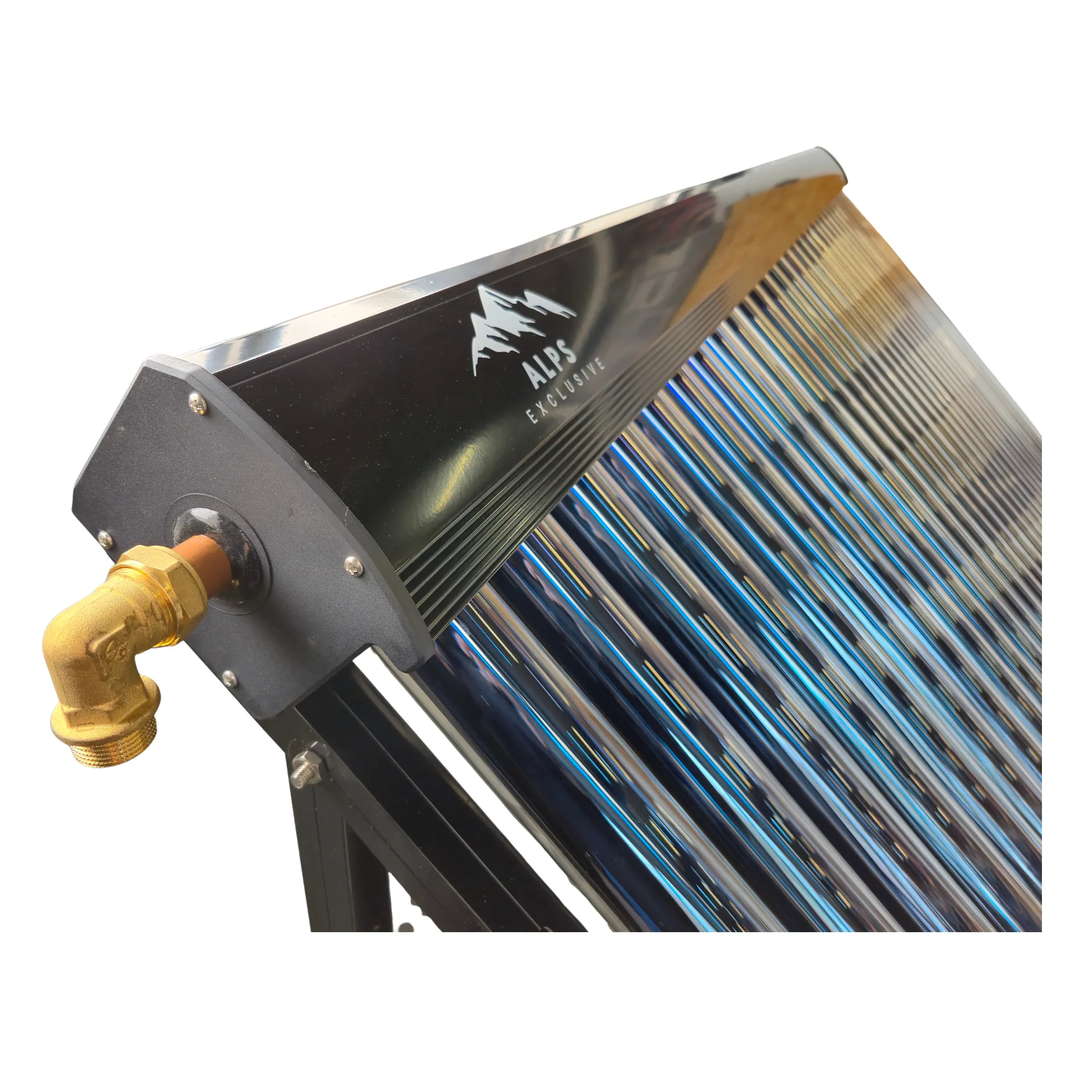

Includes 2 AE-00030-HP(V2) collectors (30 evacuated tubes each, heat-pipe design) for efficient conversion of sunlight into heat, even under cloudy conditions. The sturdy aluminium frame suits both flat roofs and pitched roofs.

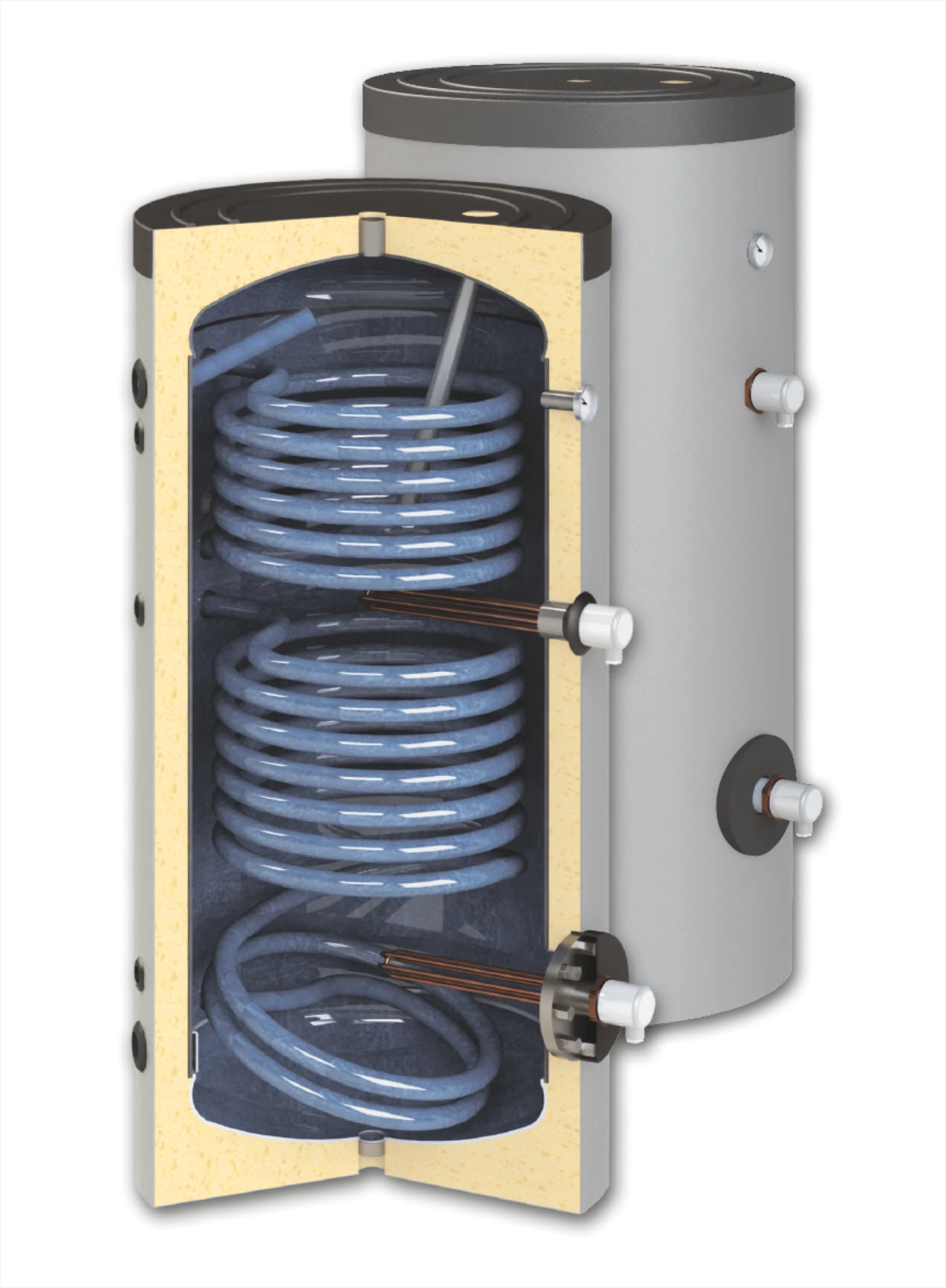

500L buffer tank with stainless steel DHW coil

The 500-litre buffer tank stores heat for DHW and heating circuits. Its stainless steel DHW coil ensures hygienic hot water on demand, while the dual integrated heat exchangers deliver efficient transfer and easy integration with a central heating boiler or hybrid setup.

Subsidy benefit & quick payback

This system is ISDE-eligible with a subsidy of €1645 (code KA29494). Combined with energy savings, this reduces total cost of ownership and shortens payback time.

Set components

2x AE-00030-HP(V2) solar collectors (approx. 240 × 200 cm, 92 kg each)
1x 500L buffer tank with stainless steel DHW coil and 2 heat exchangers (height: 177 cm, Ø 80 cm)
1x inlet/safety combination set
1x 18L expansion vessel + 1x 50L expansion vessel

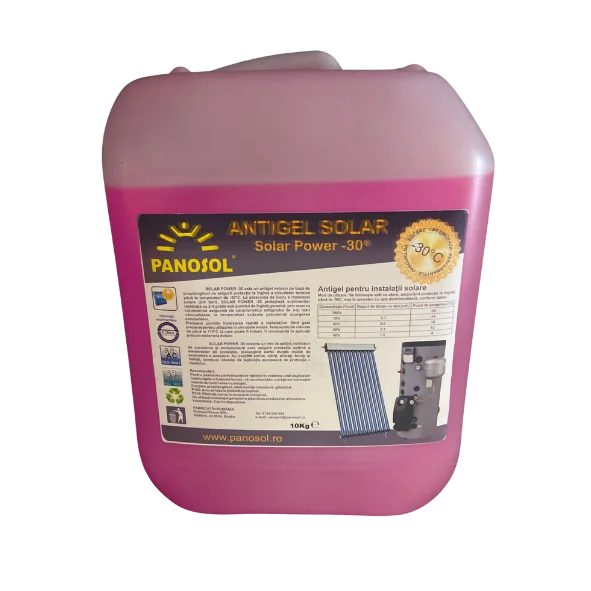

1x 20L solar heat transfer fluid

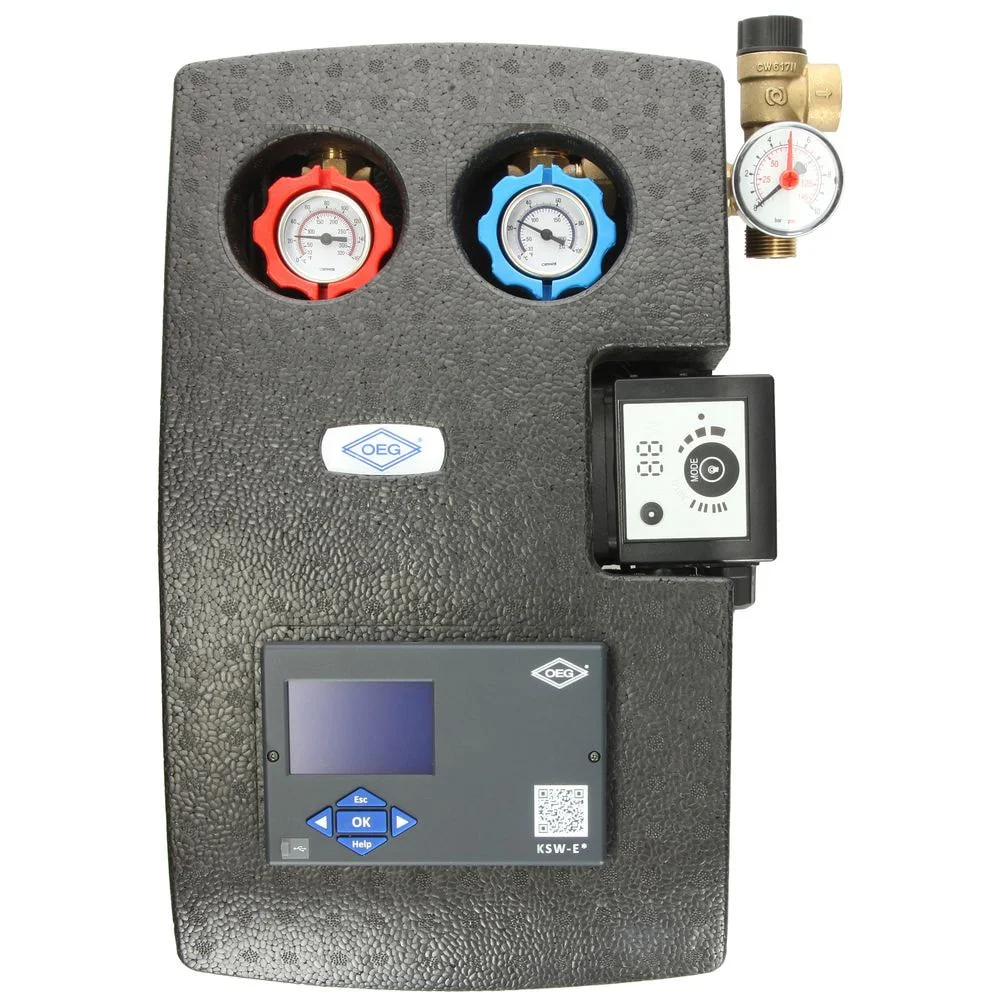

1x OEG controller & pump unit with sensors
1x 10 m stainless steel solar hose with insulation + fittings

Technical specifications

Total collector area (indicative): ~9.6 m²
Max. working pressure: 8 bar
Tank: steel with premium thermal insulation
DHW coil: stainless steel
Integration: solar + connection to central heating boilers
ISDE subsidy: €1645 (code KA29494)

The Hewa advantage

Hewa delivers complete solar systems with clear documentation, expert guidance and fast delivery. Unsure whether you need more collector area or a larger buffer tank?

Generals
Item number	ZB18230501
Price excl. VAT	€ 4.544,63
Price incl. VAT	€ 5.499,00
Sizes ((LxWxH):)	100 x 120 x 210 cm
Specification list
Dimensions (D x W x H)	2400 x 1990 x 125 mm
Weight	92 kg
Absorption surface area	2.98 m²
Total surface area	4.78 m²
Liquid capacity	2500 ml
Maximum pressure	800kpa/116Psi
Heat pipe stagnation temperature	180°C
Vacuum tube stagnation temperature:	280°C
Maximum power	1940 W / 6630 Btu
Ideal flow rate	2.5 L/min
Pressure drop at ideal flow rate	1.6 KPa (16 mbar)
Maximum flow rate	18 L/min
Daily heating capacity (Δ40°C)	210-300 L
