Complete Solar Heating Set 2x 30HP + Hot Water Tank with 2 Heat Exchangers (500L)

High-efficiency solar system for hot water and heating

The Complete Solar Heating Set – 2x 30HP + 500L Tank with 2 Heat Exchangers offers an advanced, eco-friendly and energy-saving solution for domestic hot water and space heating. It’s ideal for households and buildings with higher energy demand.

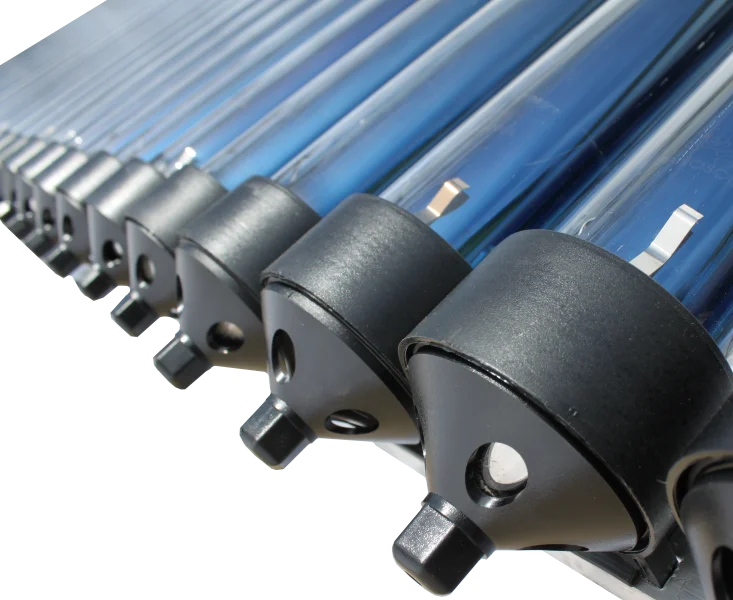

Dual 30-tube collectors for maximum efficiency

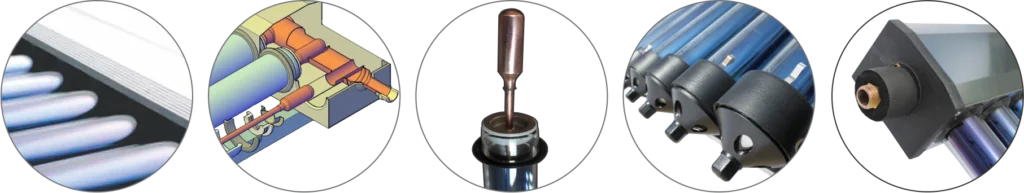

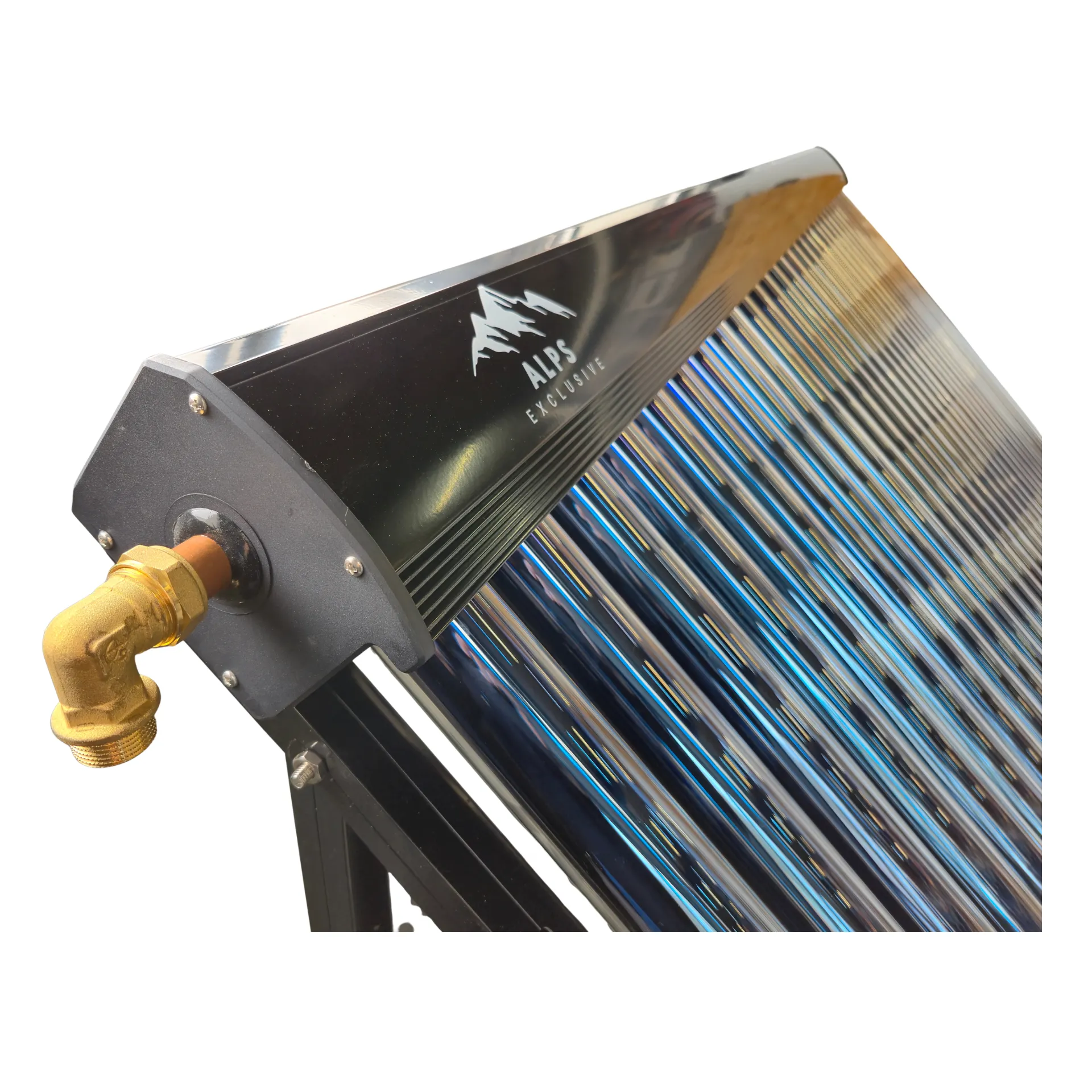

The set includes two AE-00030-HP(V2) solar collectors, each featuring 30 evacuated tubes with heat pipe technology. These collectors achieve high output even under cloudy or diffuse sunlight conditions. The durable aluminium frame is suitable for both flat and pitched roofs.

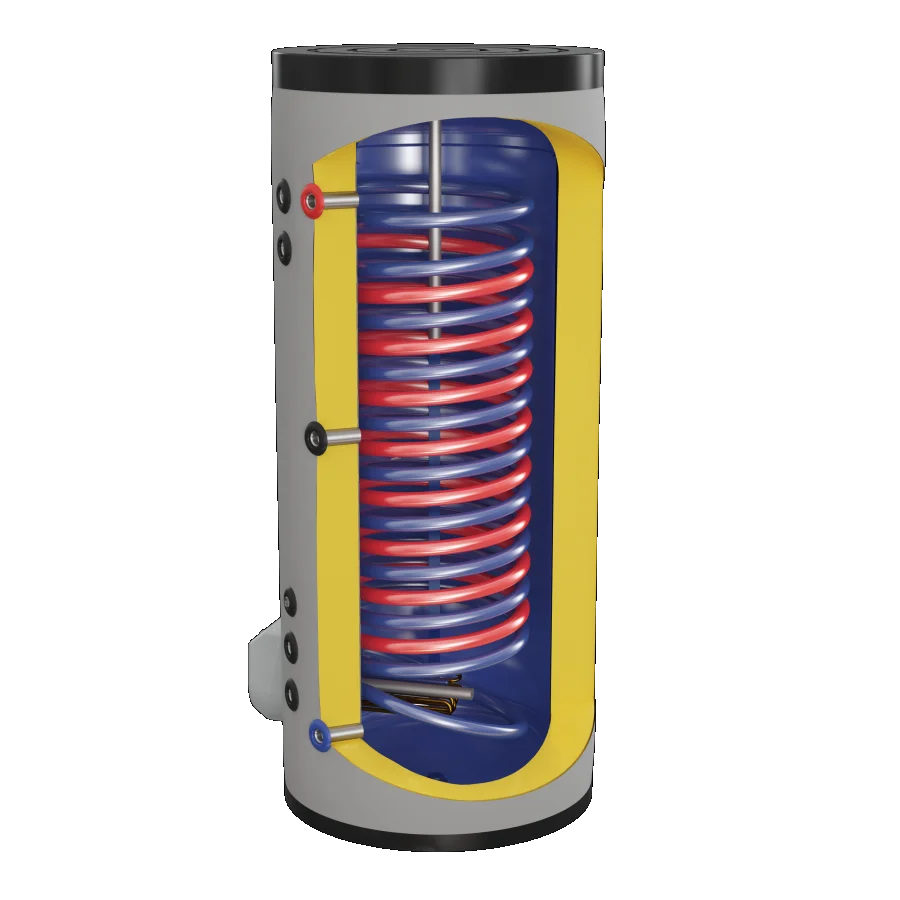

500L hot water tank with heating support

The 500-litre tank is equipped with two integrated heat exchangers for optimal heat transfer. One coil transfers solar energy to the water, while the second can be connected to a central heating boilers or heat pumps for additional heating support.

Energy savings with subsidy benefit

This system significantly reduces energy consumption and CO₂ emissions. It qualifies for the ISDE subsidy of €1645 (code KA29494), making it a financially smart and sustainable investment.

Simple installation and reliable operation

The set comes complete with a controller and pump unit, sensors, expansion vessel, solar fluid and pre-insulated stainless steel hoses. All components are built for long-term durability and minimal maintenance.

Set components

• 2x AE-00030-HP(V2) solar collectors (240 cm wide x 200 cm high, 92 kg each)
• 1x 500L Domestic hot water tank with 2 heat exchangers (height: 187 cm, Ø 75 cm)
• 1x inlet combination set
• 1x 18L expansion vessel

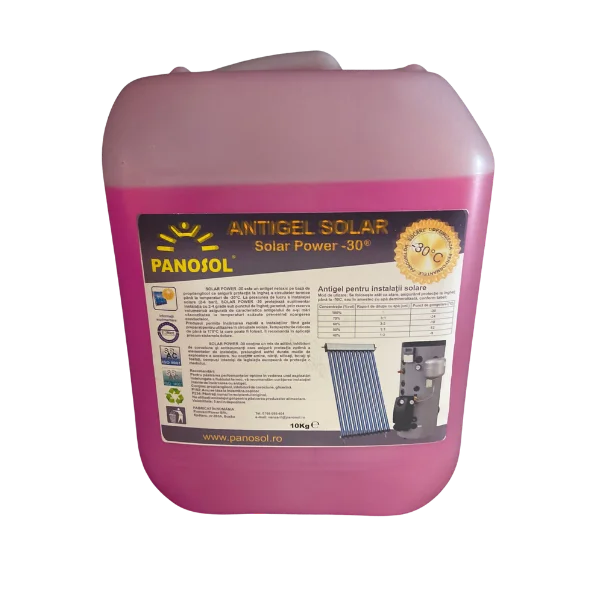

• 1x 20L solar heat transfer fluid

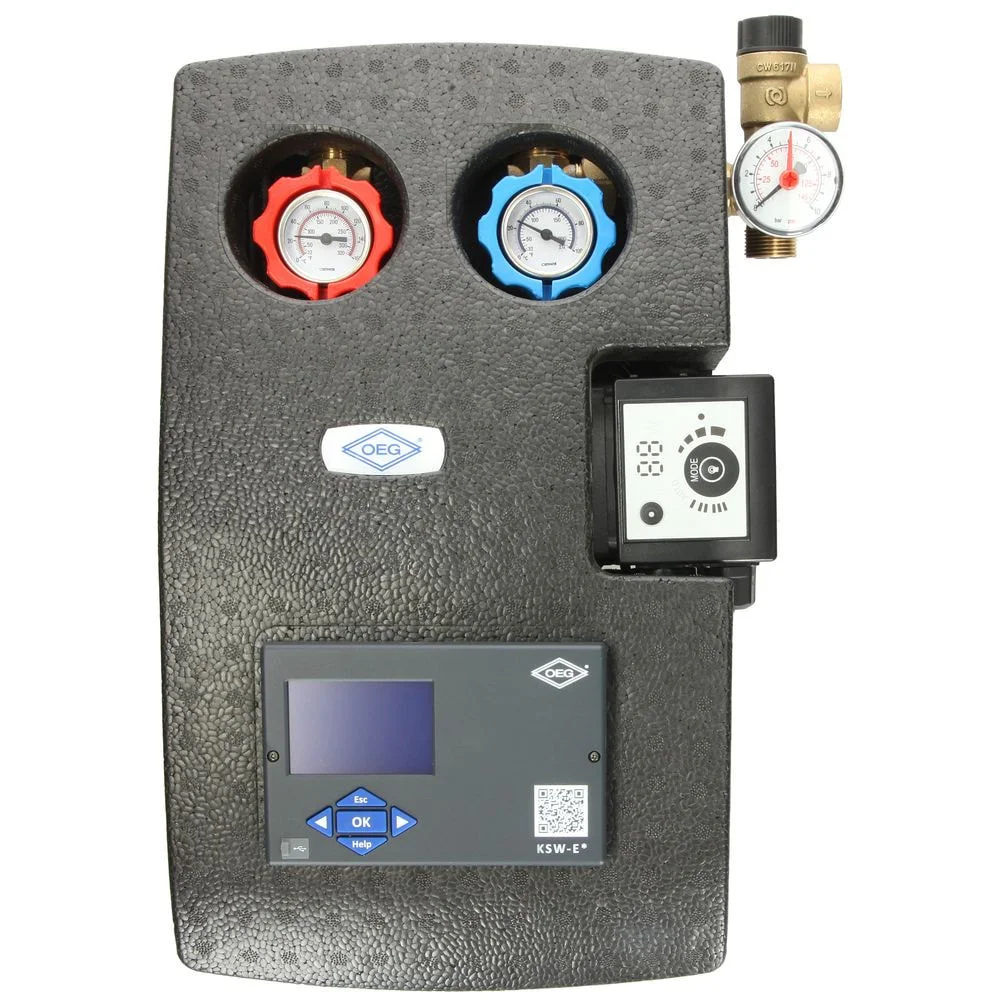

• 1x OEG controller with pump and sensors
• 1x 10m stainless steel solar hose with insulation and fittings

Technical specifications

• Total collector area: 9.6 m²
• Max. working pressure: 8 bar
• Tank insulation: 50 mm PU foam with PVC cover
• Max. collector temperature: 190 °C
• ISDE subsidy: €1645 (code KA29494)

The Hewa advantage

Hewa provides complete solar energy systems with expert advice, fast delivery and full documentation. Looking to combine this set with buffer tanks or heat pumps, or apply for the ISDE? Get in touch with Hewa for technical support or a custom quotation.
