Complete Solar Heating Set - 1x 30HP + Buffer Tank with DHW Coil and 1 Heat Exchanger (200L)

Compact solar package for DHW and heating support

The Complete Solar Heating Set – 1x 30HP + 200L Buffer Tank pairs a high-efficiency collector with a buffer tank featuring a stainless steel DHW coil and one heat exchanger. It produces hygienic hot water and stores solar heat that can support your space heating. Looking for a compact, low-maintenance system with solid returns?

High output with a single 30-tube collector

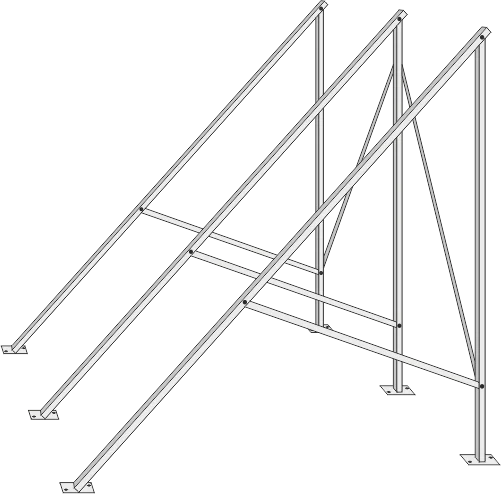

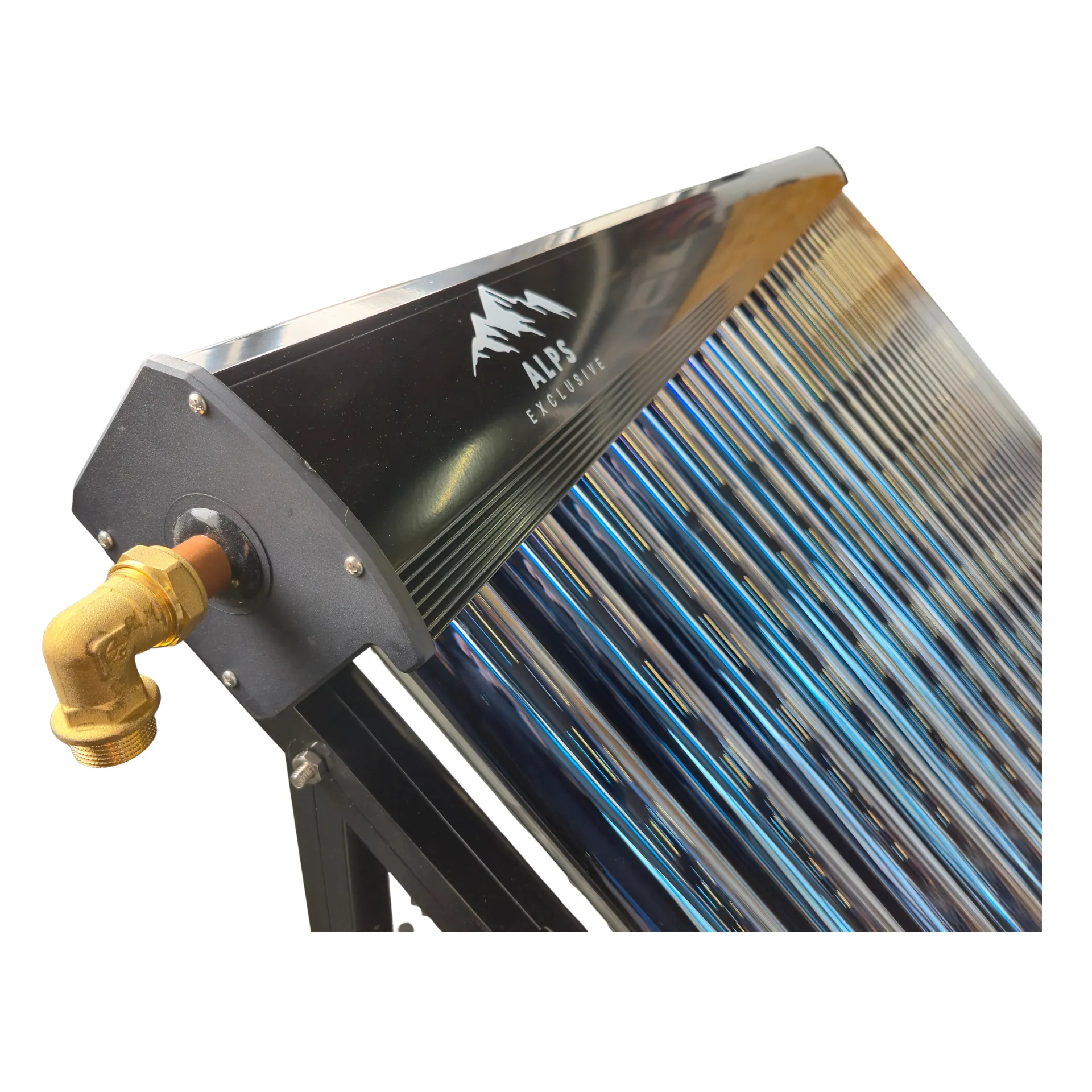

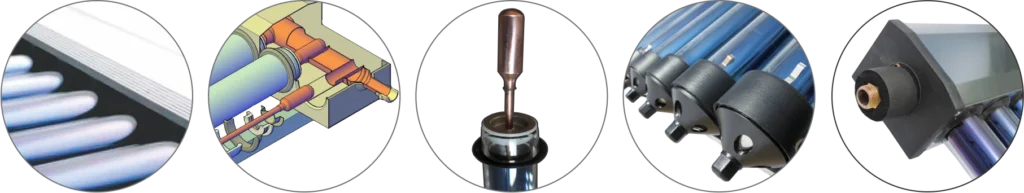

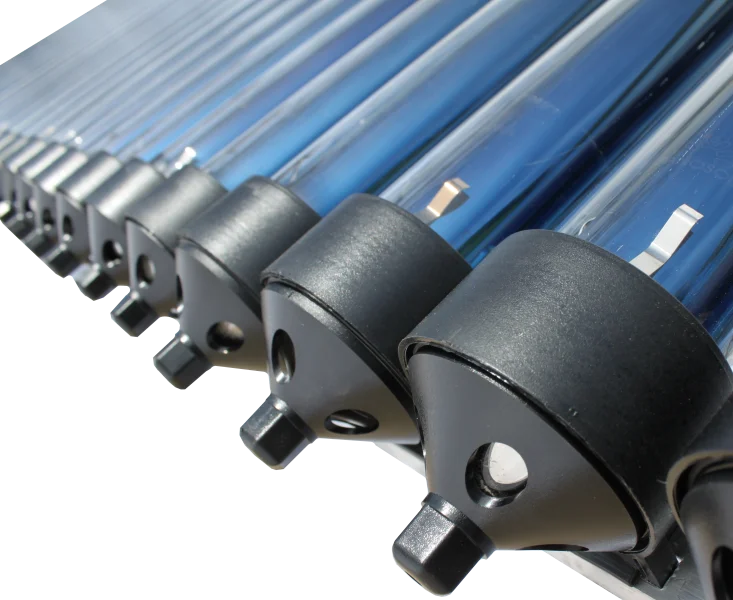

The AE-00030-HP(V2) collector (30 evacuated heat-pipe tubes) delivers dependable performance even in low-light conditions. Its durable frame suits flat-roofs and tiled-roofs and is built to last.

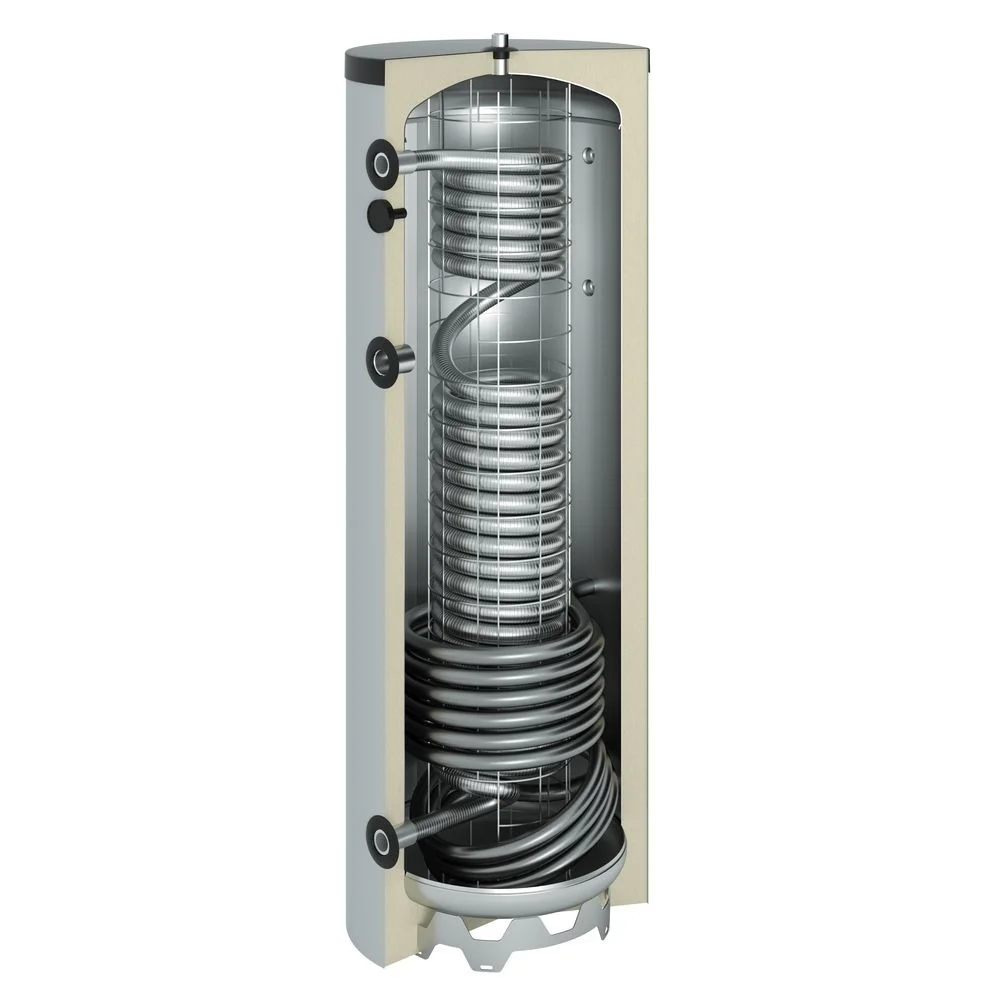

200L buffer tank with stainless DHW coil

The 200-litre buffer stores solar heat as heating water. The stainless steel DHW coil provides on-demand, legionella-safe hot water, while the single heat exchanger efficiently transfers solar energy into the tank.

Subsidy and quick installation

Eligible for the ISDE subsidy of €1542 (code KA29491). With all key components included, installation is straightforward and fast.

Set components

• 1× 30-tube solar collector AE-00030-HP(V2) (approx. 240 × 200 cm, 92 kg)
• 1× 200L buffer tank with stainless DHW coil and 1 heat exchanger (height: 127 cm, Ø 62 cm)
• 1× inlet/safety combination set
• 2× expansion vessels: 18L + 25L

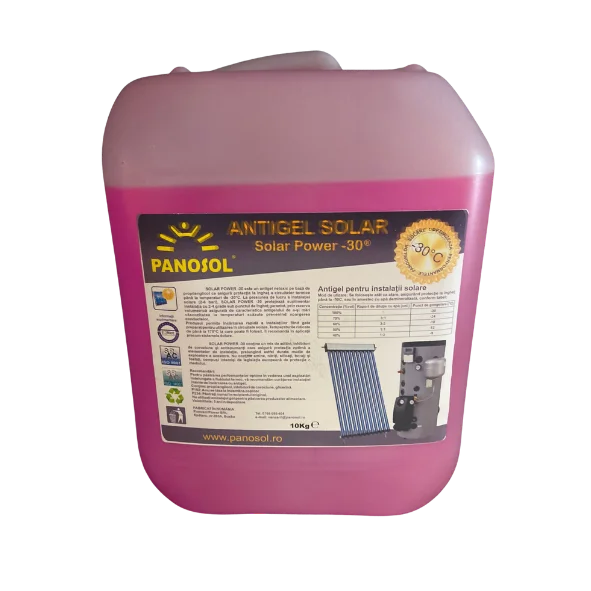

• 1× 20L solar fluid

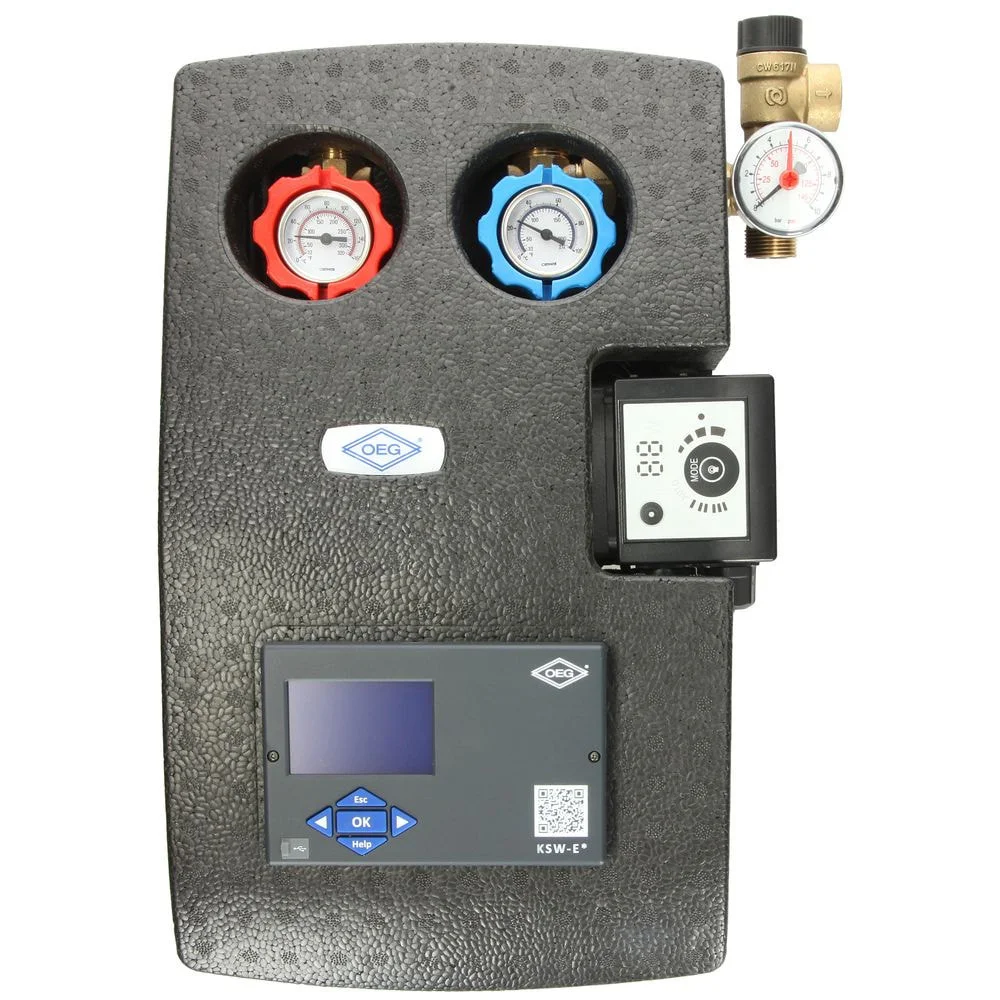

• 1× OEG controller & pump unit with sensors
• 1× 10 m stainless steel solar hose with insulation + fittings

Technical specifications

• Collector area (indicative): 4.8 m²
• Tank: steel buffer with thermal insulation
• DHW: stainless steel flow coil
• Heat exchangers: 1 (solar circuit)
• Max. working pressure: 8 bar
• ISDE subsidy: €1542 (code KA29491)

The Hewa advantage

Hewa supplies ready-to-install solar packages with documentation and expert support. Not sure if extra collector area or a larger buffer suits your project? Get in touch — we’ll size the system with you.
