Complete Solar Heating Set - 1x 30HP + Buffer Tank with DHW Coil and 1 Heat Exchanger (300L)

Complete Solar Heating Set - 1x 30HP + Buffer Tank with DHW Coil and 1 Heat Exchanger (300L)

Price excl. VAT€ 3.230,58Price incl. VAT€ 3.909,00

Op nalevering

Subsidy: € 1.587,00
ISDE subsidy code: KA29492
Item number: ZB18130311

Complete solar set with 1×30HP collector and 300L buffer tank with stainless DHW coil and 1 heat exchanger. Efficient and ISDE-subsidy eligible. Read more

Complete solar system with 1 collector and 300L buffer tank
Stainless steel DHW coil for hygienic hot water
1 integrated heat exchanger for solar circuit connection
Efficient, high-yield design even in cloudy weather
European-quality components, easy to install
Low maintenance and long-lasting performance

Compare

Go to comparison

Reliable solar energy for hot water and heating support

The Complete Solar Heating Set – 1x 30HP + 300L Buffer Tank with DHW Coil and 1 Heat Exchanger is designed for households and small commercial buildings seeking a cost-effective solar heating solution. Its larger capacity offers more stored energy for domestic hot water and heating support.

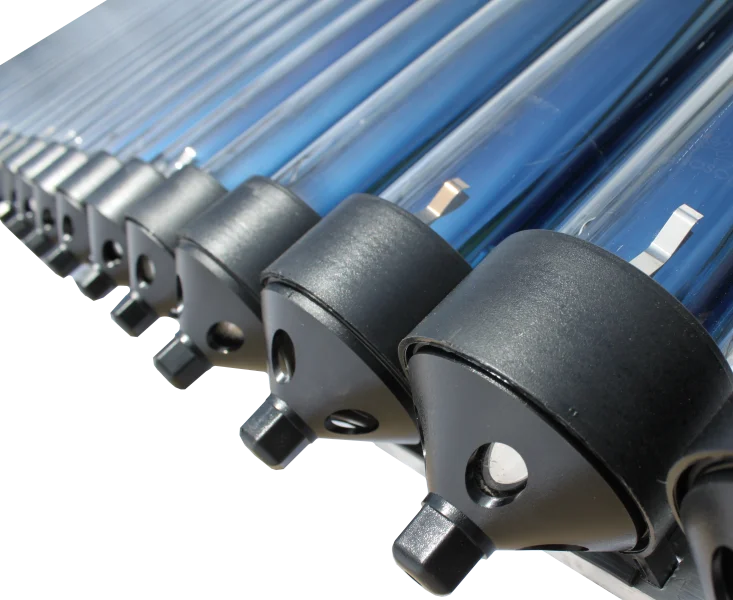

High efficiency with a 30-tube solar collector

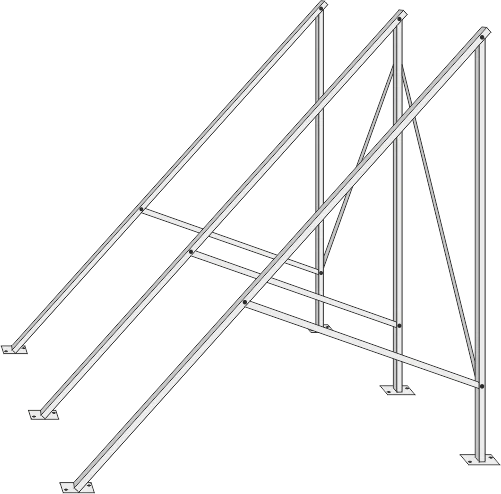

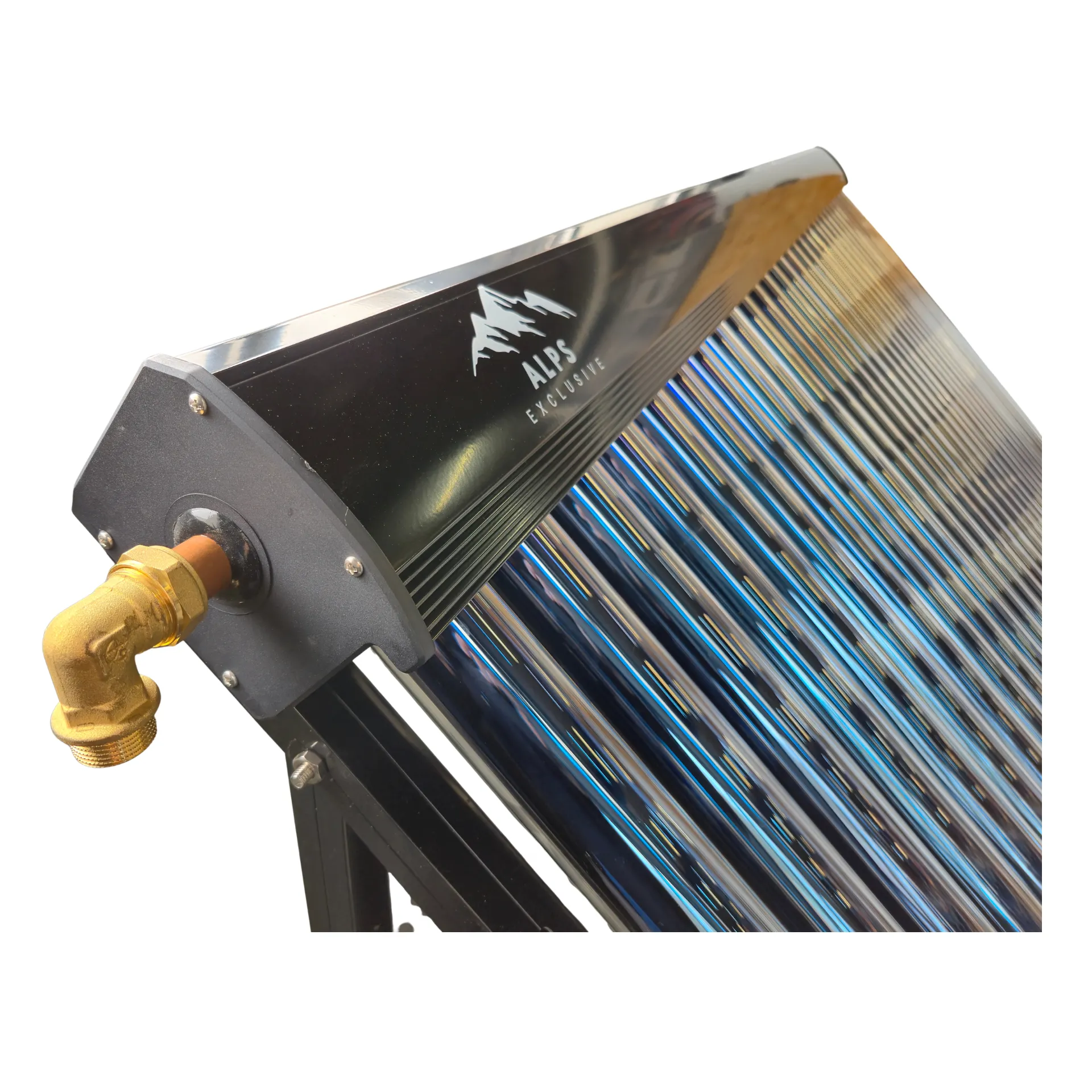

The AE-00030-HP(V2) collector uses 30 evacuated heat-pipe tubes to efficiently convert sunlight into heat. Even under diffuse or low-light conditions, the system maintains consistent performance. The robust aluminium frame is suitable for flat-roofs and tiled-roofs.

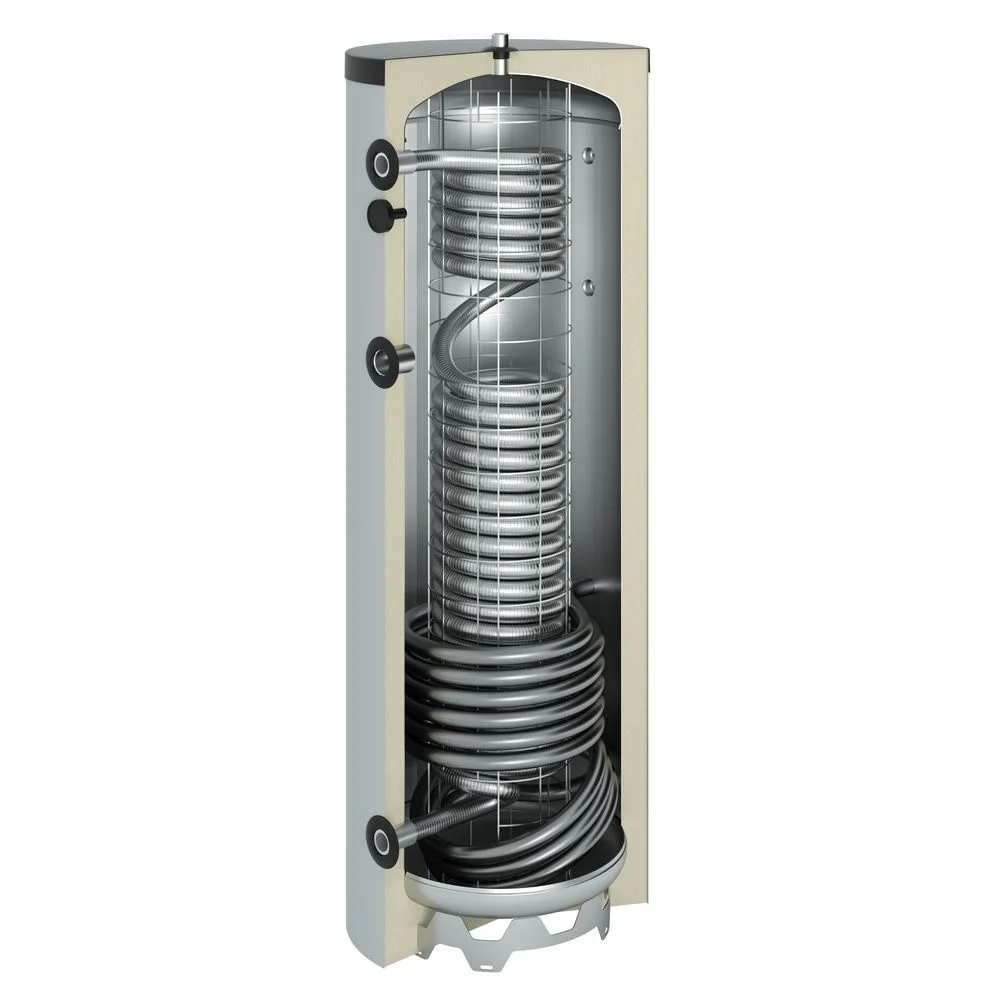

300L buffer tank with stainless DHW coil

The 300-litre buffer tank stores solar heat for both domestic hot water and heating applications. Its stainless steel DHW coil ensures safe and hygienic water supply, while the integrated heat exchanger transfers solar energy efficiently to the system.

Subsidy and sustainability

The system qualifies for the ISDE subsidy of €1587 (code KA29492). It reduces energy consumption and CO₂ emissions, offering long-term financial and environmental benefits.

Set components

1×AE-00030-HP(V2) solar collector (240 cm × 200 cm, 92 kg)
1× 300L buffer tank with stainless DHW coil and 1 heat exchanger (height: 175 cm, Ø 62 cm)
1× inlet/safety combination set
1× 18L expansion vessel + 1× 25L expansion vessel

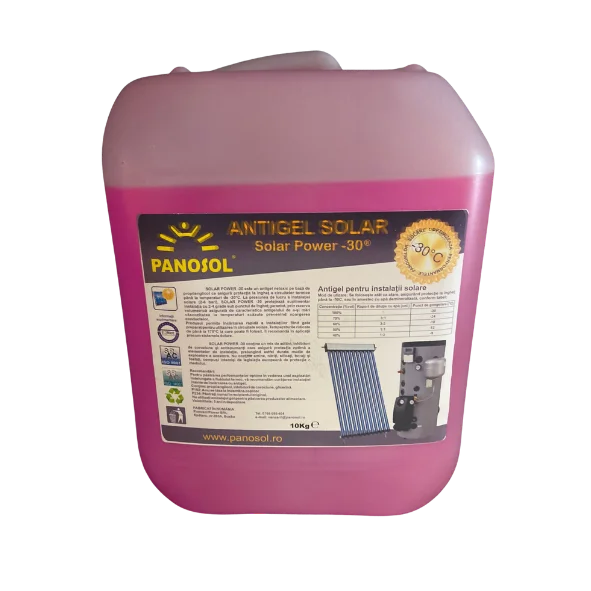

1× 20L solar fluid

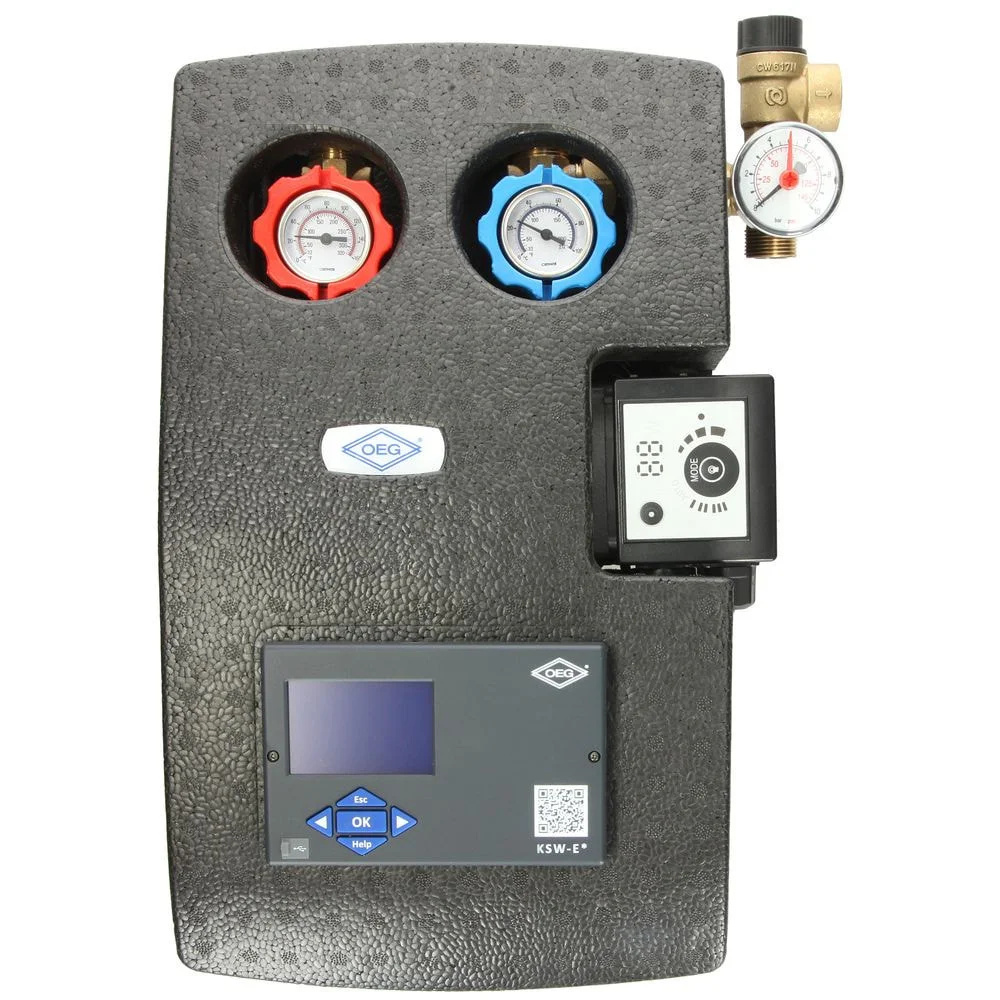

1× OEG controller & pump unit with sensors
1× 10 m stainless steel solar hose with insulation + fittings

Technical specifications

Collector area: 4.8 m²
Buffer volume: 300 litres
DHW coil: stainless steel
Heat exchangers: 1 integrated
ISDE subsidy: €1587 (code KA29492)

The Hewa advantage

Hewa provides complete solar energy systems with fast delivery, documentation and expert advice. Looking to combine this set with heat pumps or extend it with an extra collector? Contact Hewa for tailored recommendations.

Generals
Item number	ZB18130311
Price excl. VAT	€ 3.230,58
Price incl. VAT	€ 3.909,00
Sizes ((LxWxH):)	200 x 193 x 13 cm
Specification list
Dimensions (D x W x H)	2400 x 1990 x 125 mm
Weight	92 kg
Absorption surface area	2.98 m²
Total surface area	4.78 m²
Liquid capacity	2500 ml
Maximum pressure	800kpa/116Psi
Heat pipe stagnation temperature	180°C
Vacuum tube stagnation temperature:	280°C
Maximum power	1940 W / 6630 Btu
Ideal flow rate	2.5 L/min
Pressure drop at ideal flow rate	1.6 KPa (16 mbar)
Maximum flow rate	18 L/min
Daily heating capacity (Δ40°C)	210-300 L
