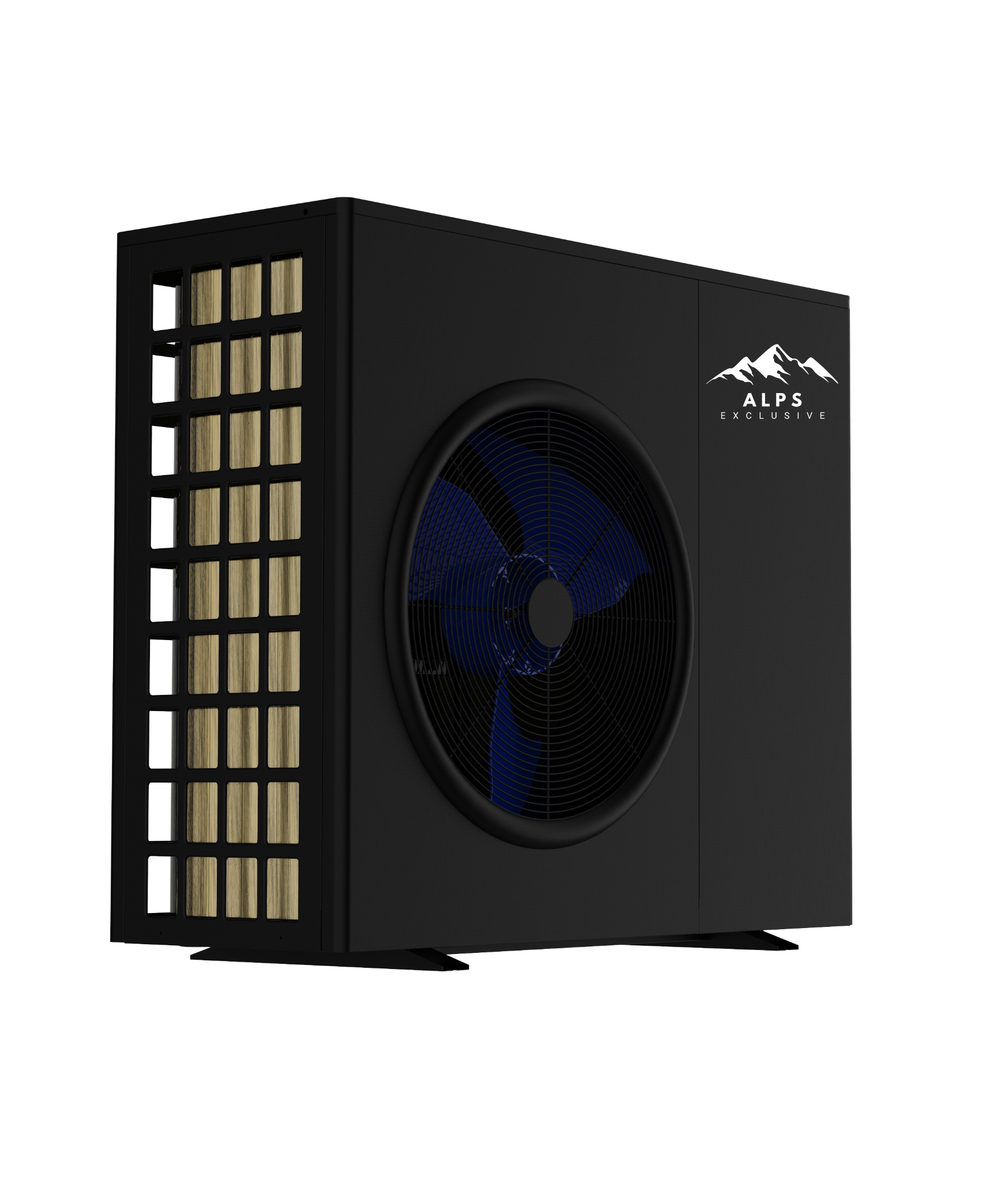

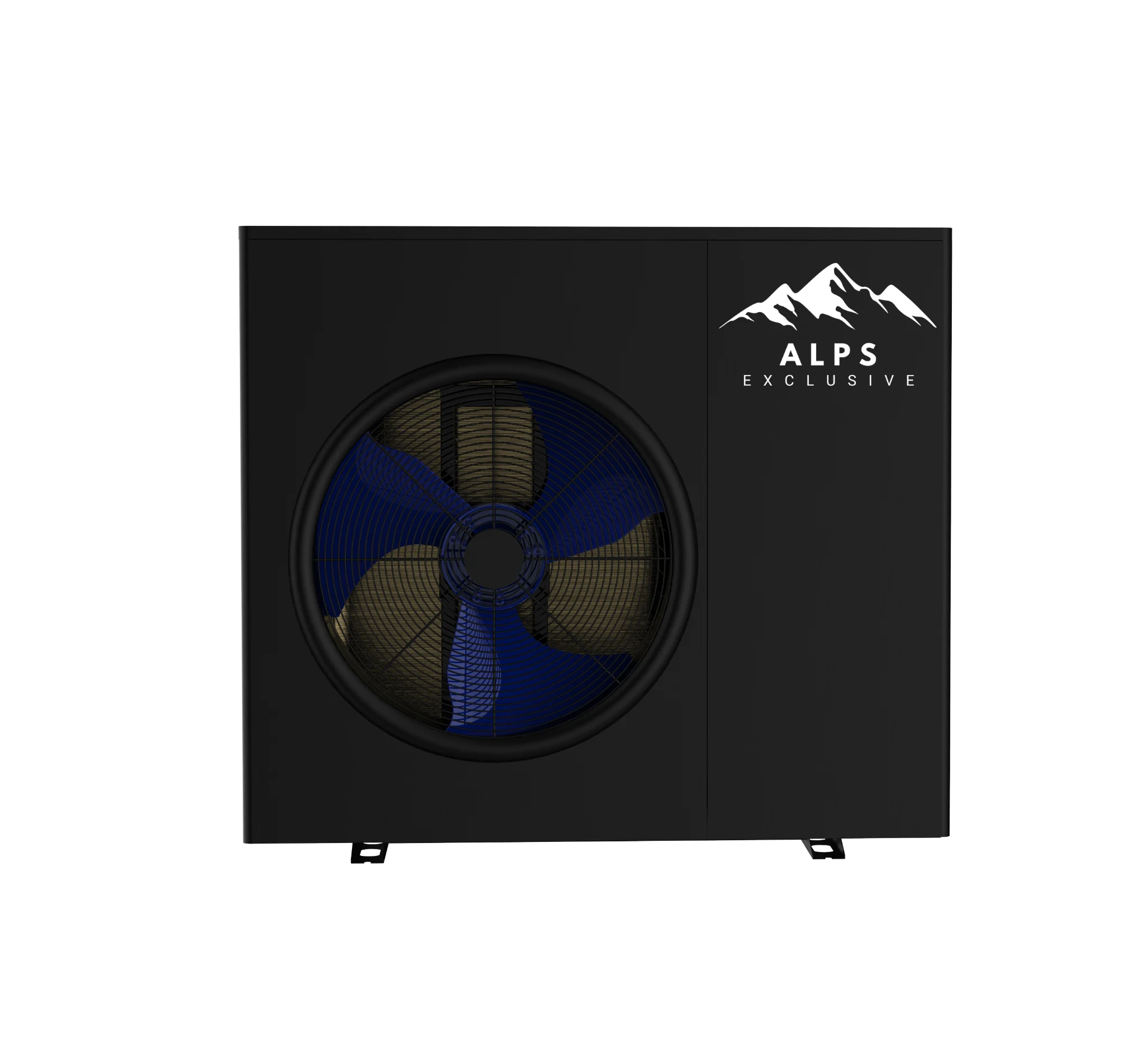

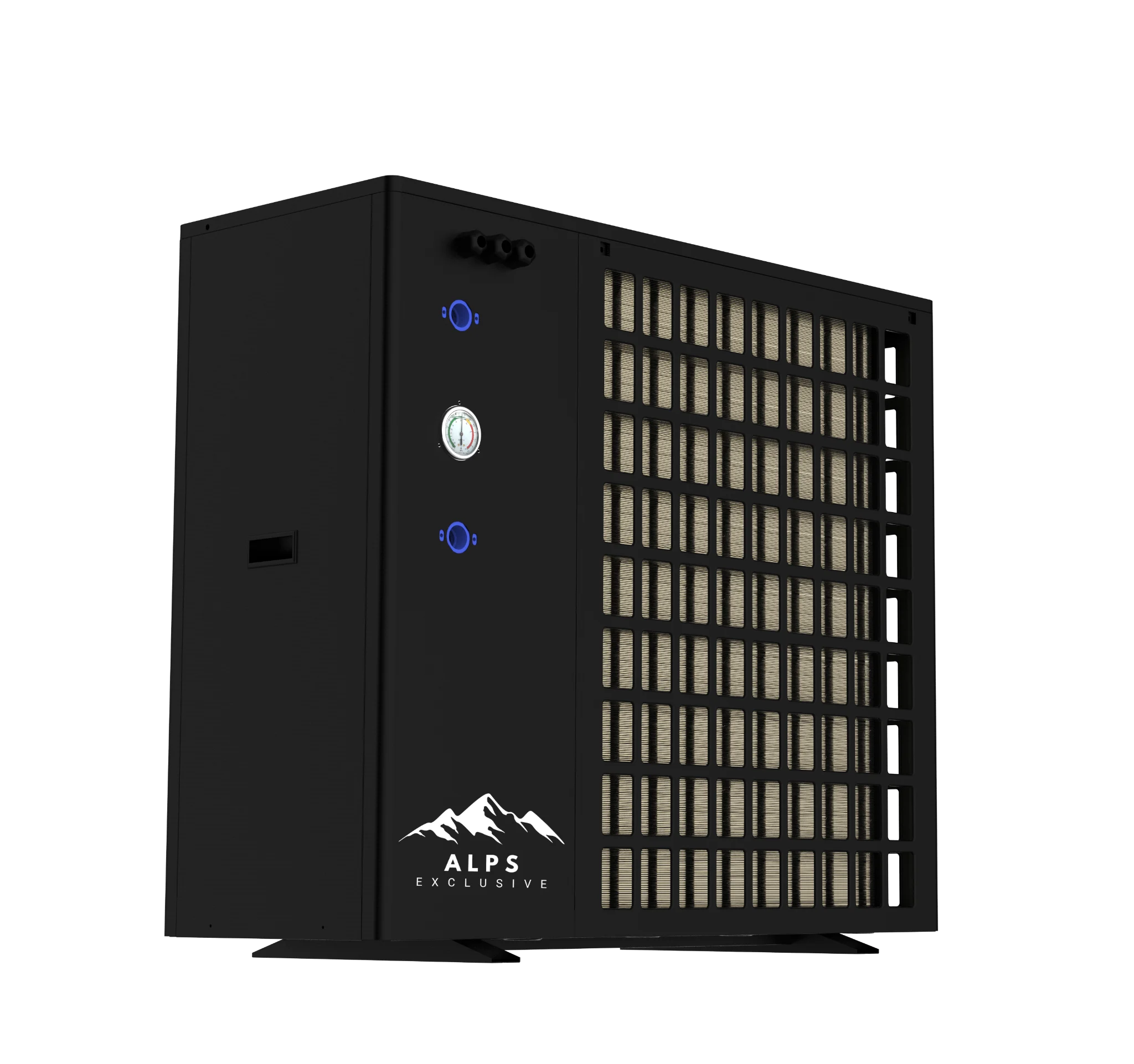

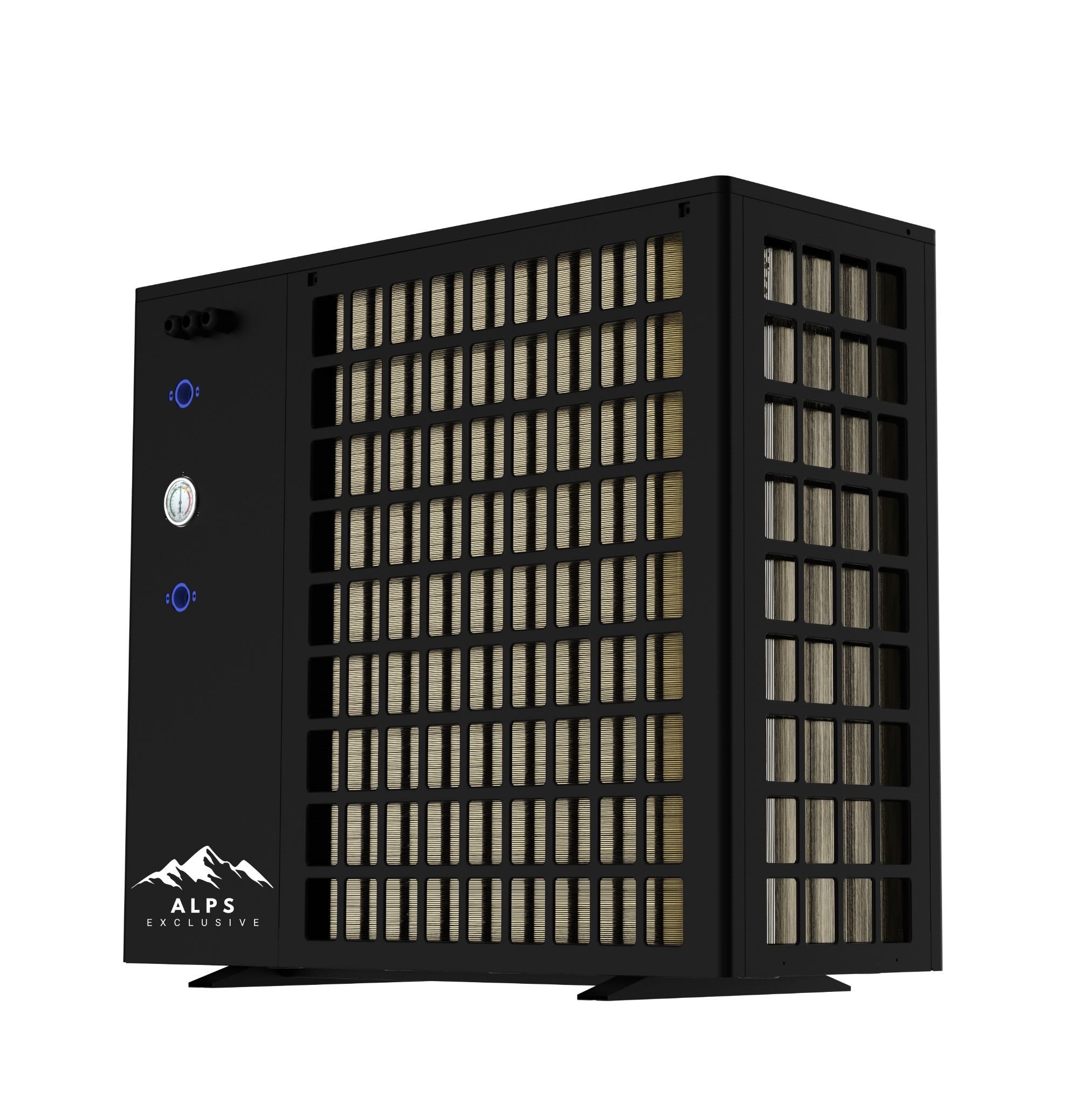

ALPS EXCLUSIVE AE-08401-MO - monoblock air to water heat pump (8.4 kW)
- All-electric monoblock heat pump
- Heating, cooling and hot water
- Operates down to -30 °C
- Energy efficiency up to A+++
- Panasonic inverter compressor
- Compact monoblock design
- Efficient R32 refrigerant
Efficient, quiet and ready for the future
The AE-08401-MO from ALPS EXCLUSIVE is a powerful all-electric monoblock heat pump with an output of 8.4 kW. It is designed for homes and small commercial projects where performance, installation convenience and sustainability come together. Thanks to the R32 refrigerant, this heat pump is not only efficient, but also future-ready within the energy transition.
Sustainable efficiency with R32
The R32 refrigerant supports efficient performance and helps reduce environmental impact. Even at low outdoor temperatures, the heat pump continues to deliver reliable output. Combined with an A+++ energy rating at 35 °C, this results in high efficiency that can be directly reflected in lower energy costs.
Versatile climate solution
With this heat pump, you can heat underfloor heating or low-temperature radiators, produce domestic hot water up to 60 °C and benefit from active cooling in summer. Thanks to modulating inverter technology, the system automatically adjusts its output to the current heat demand. This means: no unnecessary peak consumption, less wear and lasting comfort. Would you like to know how this system works in combination with a buffer tank?
Compact and installation-friendly
The AE-08401-MO is designed as a complete monoblock unit. The refrigerant circuit is located in the outdoor unit, so no separate indoor unit is required. This shortens installation time, reduces pipework and makes the system ideal for renovation projects or locations with limited technical space.
Quiet and suitable for urban environments
With a sound pressure level of only 53 dB(A), this system operates quietly. This makes it suitable for densely built residential areas or projects where noise requirements apply. Do you have a project where sound is a critical factor? We are happy to help you think through the optimal setup.
Hewa: your partner from advice to delivery
Hewa has been supplying reliable heating and cooling systems to installers, business customers and DIY users for more than six years. We offer:
- Technical advice when selecting the right heat pump
- Preconfigured sets for faster installation
- Fast delivery and up-to-date stock information
- Support with R32 applications and subsidy options
Ready to make your project more sustainable?
Imagine one system that heats, cools and supplies domestic hot water for your property without a gas connection. Would you like to know whether the AE-08401-MO fits your situation? Or are you looking for a solution that can be combined with, for example, a domestic hot water cylinder? Contact Hewa today for personal advice and competitive project pricing.
| Generals | |
|---|---|
| Item number | 390084 |
| EAN Code | 8721082877008 |
| Price excl. VAT | € 2.313,00 |
| Price incl. VAT | € 2.798,73 |
| Sizes ((LxWxH):) | 48 x 97 x 84 cm |
| Specification list | |
| Heating capacity range (kW) | 1.57 - 8.40 kW |
| Heating power input range (kW/h) | 0.32 ~ 1.87 kW/u |
| COP | 4.49 ~ 4.91 |
| Cooling capacity range (kW) | 0.99 ~ 6.22 kW |
| Cooling power input range (kW/h) | 0.29 ~ 2.18 kW/u |
| EER range | 2.85 ~ 3.41 |
| ErP level (35°C) | A+++ |
| ErP level (55°C) | A++ |
| Refrigerant | R32 |
| Power supply | 230 VAC / 1 Ph / 50 Hz - 60 Hz |
| Max. power input (kW/h) | 2.5 kW/h |
| Max. current (A) | 11.5 A |
| Minimum fuse or circuit breaker (A) | 16 A |
| Wire diameter (mm²) | 2.5mm² |
| Pipe connection size | DN25 |
| Max. head (m) | 9 m |
| Noise dB (A) | ≤53 dB |
| Net weight (kg) | 110 / 120 kg |
| Dimension (W×D×H) mm | 970 × 475 × 835 mm |
| Operation ambient temperature (°C) | -30 ~ 43 °C |
| Operating water temperature heating (°C) | 9 ~ 50 °C |
| Operating water temperature cooling (°C) | 7 ~ 35 °C |
| Operating water temperature domestic hot water (°C) | 9 ~ 60 °C |
| Subject | Action |
|---|---|
| ER01 - Incorrect phase protection Error code | View |
| ER03 - Blockage in the water flow Error code | View |
| ER04 - Anti-freeze protection Error code | View |
| ER05 - High pressure fault Error code | View |
| ER06 - Low pressure fault Error code | View |
| ER10 - Frequency converter module communication fault Error code | View |
| ER12 - Exhaust gas temperature protection too high Error code | View |
