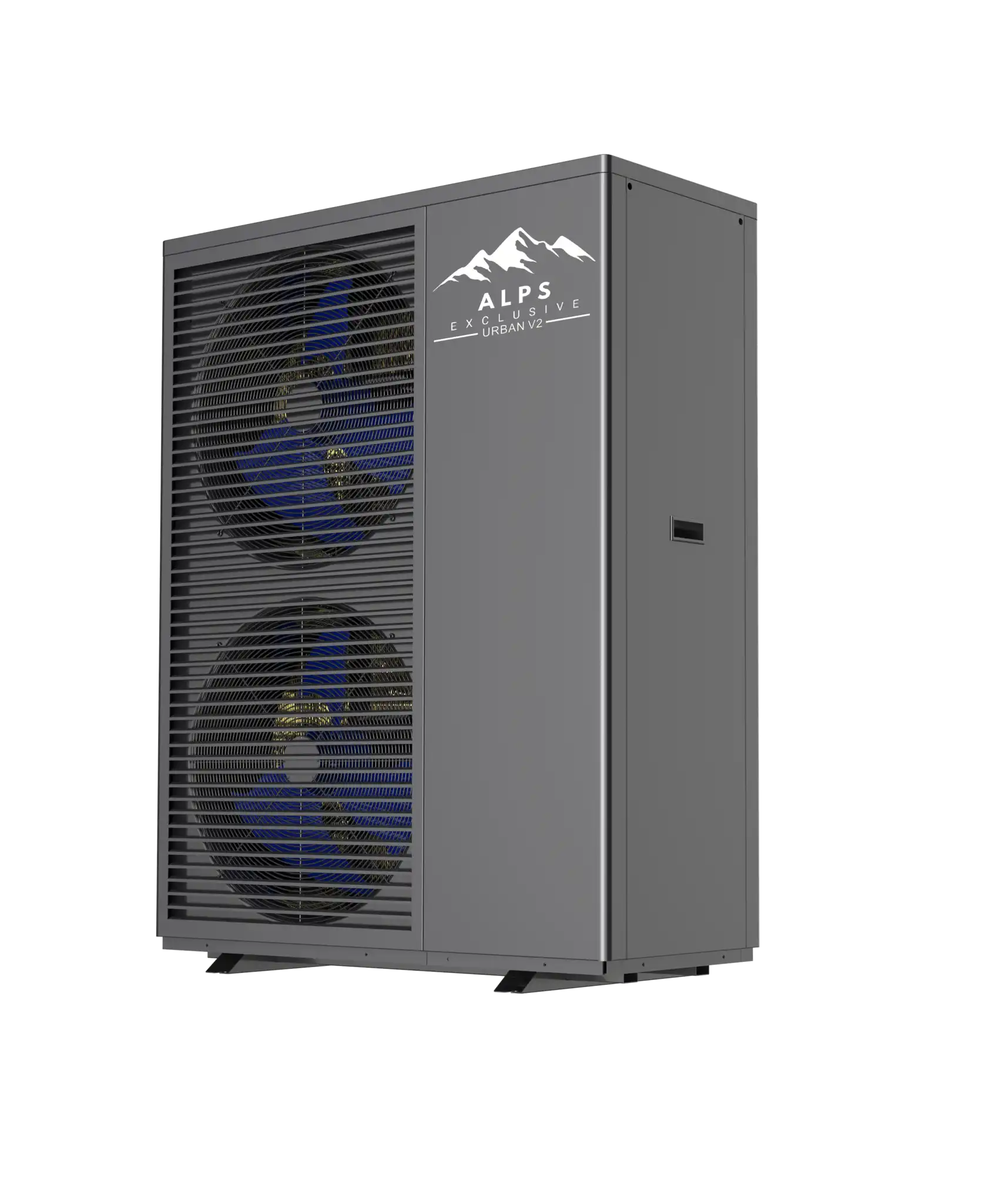

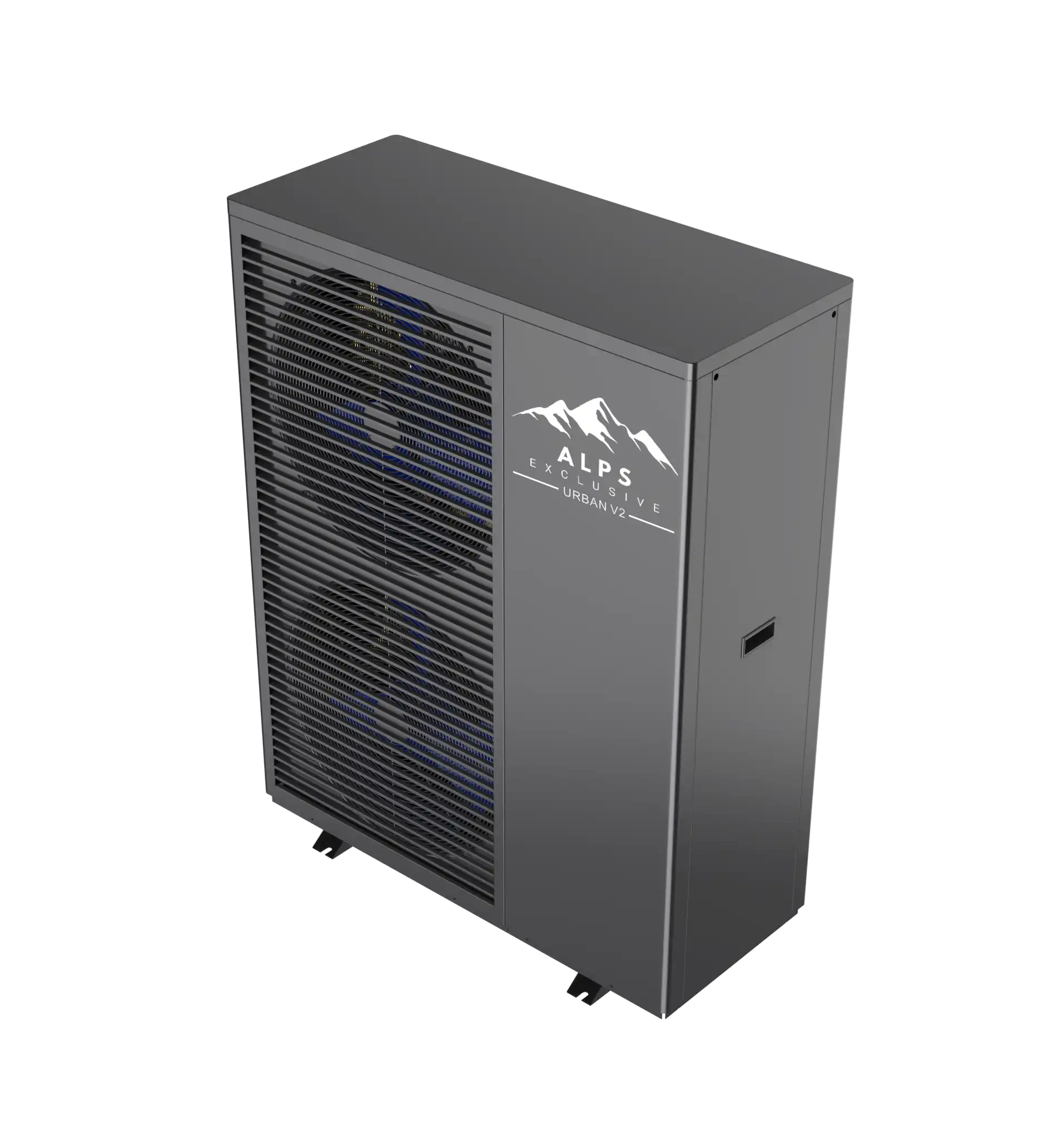

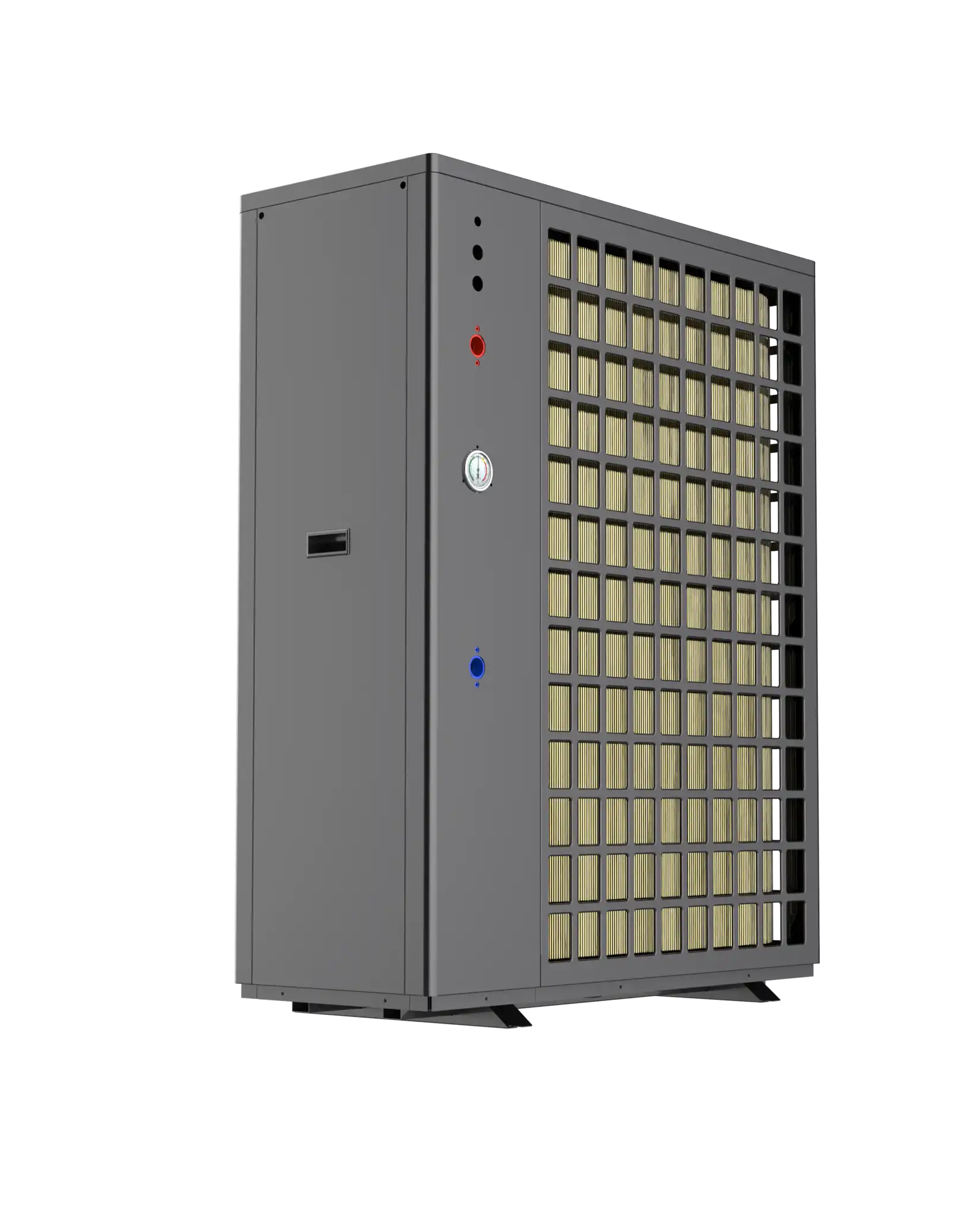

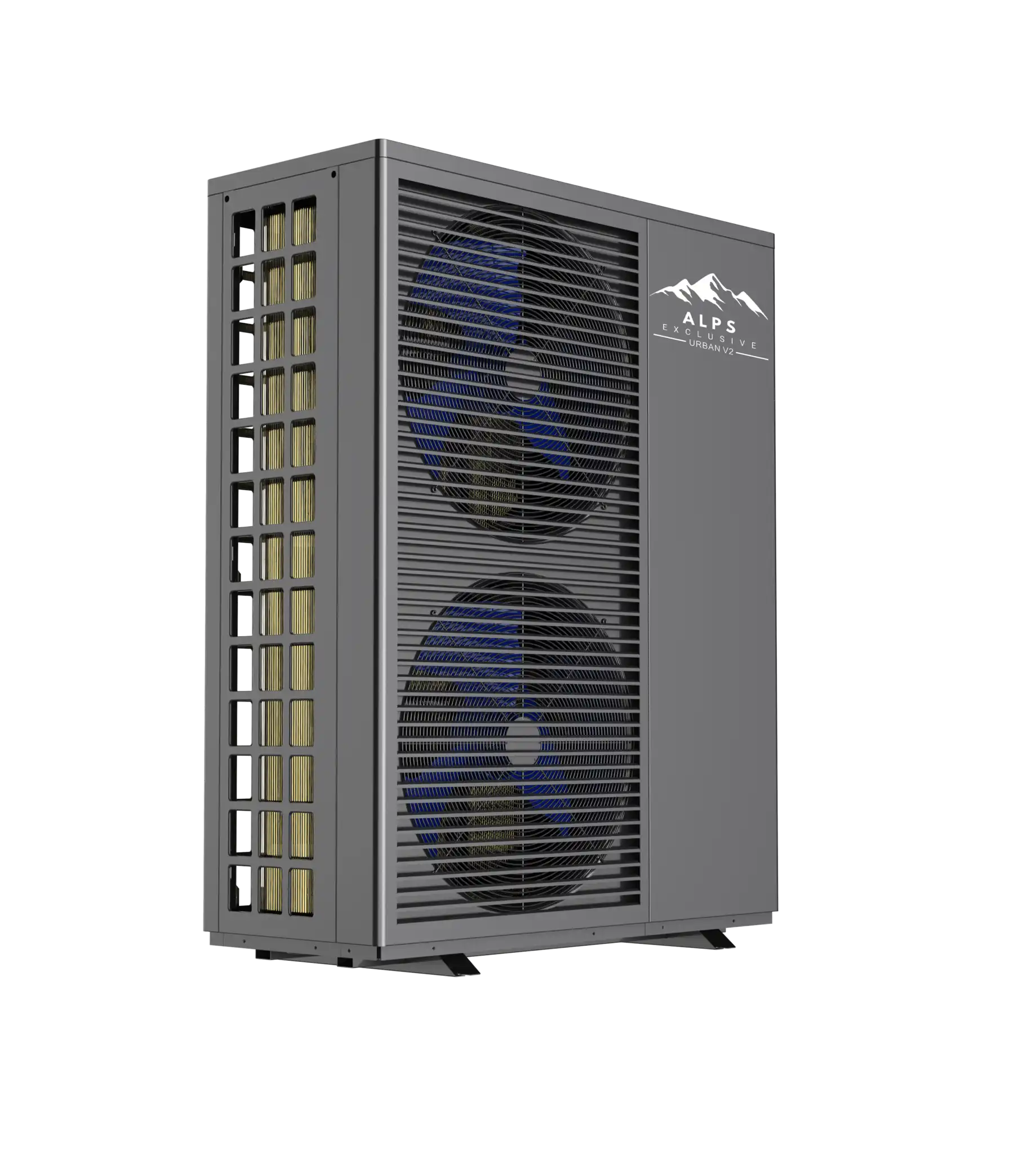

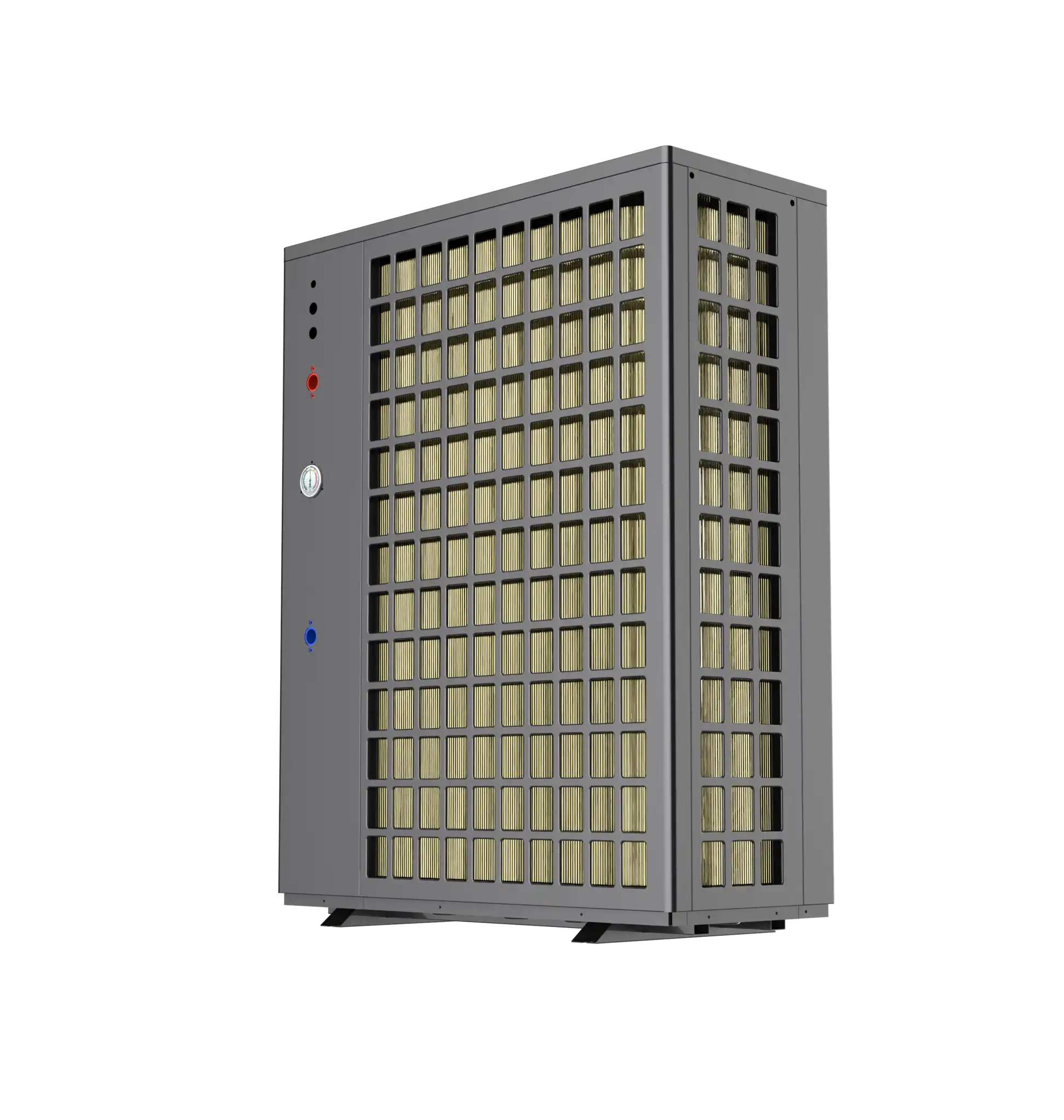

ALPS EXCLUSIVE AE-22003-MO-V2 - Monoblock air/water heat pump (22 kW)
- 22 kW heating capacity for large homes and commercial buildings
- Energy class A+++ (35 °C) for maximum efficiency
- Monoblock design – no indoor unit required
- Robust, low-maintenance outdoor unit
Very high capacity, quiet operation and maximum comfort for large projects
The ALPS EXCLUSIVE AE-22003-MO-V2 is a powerful all-electric monoblock heat pump with a heating capacity of 22 kW. Specially developed for medium to large homes, commercial buildings and industrial premises where high performance and reliability are essential. This model delivers stable comfort all year round, from harsh winter days to hot summers, and uses the natural refrigerant R290 (propane) for maximum sustainability.
Sustainable and efficient with R290
The refrigerant R290 has an extremely low GWP value, which significantly reduces greenhouse gas emissions. It also offers excellent thermodynamic performance, enabling the AE-22003-MO-V2 to heat efficiently even at low outdoor temperatures. The result? Lower energy costs and a smaller ecological footprint. Would you like to know more about the advantages of R290? Then read our page R290 heat pumps.
Versatile applications
With 22 kW of power, this heat pump is ideal for:
- Large detached homes with high heat demand
- Commercial premises, offices and utility buildings
- New-build projects that are prepared for gas-free use
- Renovations where high capacity and sustainability are key
The AE-22003-MO-V2 supports underfloor heating, low-temperature radiators and hot water supply. It can also actively cool in summer, ensuring a pleasant indoor climate in all seasons.
Full inverter technology for optimum efficiency
The stepless control via full inverter technology precisely adjusts the output to the current heat demand. This keeps the indoor temperature constant, prevents peak loads and allows the system to run more quietly – which extends the service life of the components and reduces energy consumption.
Smart control and integration
The AE-22003-MO-V2 is easy to operate via a clear display or optional remote control. Integration into smart building management systems is possible, allowing you to monitor and optimise energy consumption accurately. Would you like to know how best to combine this heat pump with a buffer tank or indirect water heater? We will be happy to advise you on the optimal configuration.
Installation-friendly monoblock design
Because the entire cooling circuit is contained in the outdoor unit, no indoor unit is required. This saves installation space, reduces piping and makes the system attractive for projects with tight schedules. The robust outdoor unit can withstand various weather conditions and requires little maintenance.
Low noise, even in high power classes
Despite its high capacity, the AE-22003-MO-V2 operates remarkably quietly, making it suitable for both residential environments and business locations where noise reduction is important.
Hewa – your partner for large-scale heating projects
With more than six years of experience, Hewa not only supplies high-quality products, but also the knowledge and support to make your project a success:
- Technical advice on sizing and system selection
- Customised configurations with buffer tank or boiler
- Fast delivery from stock
- Support with installation and commissioning
Ready for maximum capacity and sustainability?
Imagine: a single system that easily heats, cools and supplies hot water to a large building – completely electric and environmentally friendly. Would you like to know if the AE-22003-MO-V2 is suitable for your project? Or are you looking for a powerful solution with quiet operation?
Contact Hewa today for technical advice, pricing information and a customised quote.
| Generals | |
|---|---|
| Item number | 390220 |
| EAN Code | 8721082877091 |
| Price excl. VAT | € 4.165,70 |
| Price incl. VAT | € 5.040,50 |
| Sizes ((LxWxH):) | 48 x 108 x 137 cm |
| Specification list | |
| Heating capacity range (kW) | 8.8 - 22 kW |
| Heating power input range (kW/h) | 1.68 - 5.77 kW/h |
| COP | 3.81 - 5.22 |
| Cooling capacity range (kW) | 5.6 - 14.1 kW |
| Cooling power input range (kW/h) | 1.99 - 5.68 kW/u |
| EER range | 2.73 - 3.12 |
| ErP level (35°C) | A+++ |
| ErP level (55°C) | A++ |
| Refrigerant | R290 |
| Power supply | 380 VAC / 3 Ph / 50 Hz - 60 Hz |
| Max. power input (kW/h) | 7.6 kW/h |
| Max. current (A) | 14.3 A |
| Minimum fuse or circuit breaker (A) | 20 A |
| Wire diameter (mm²) | 4 mm² |
| Pipe connection size | DN 25 / G 1" F |
| Max. head (m) | 12 m |
| Noise dB (A) | ≤53 dB |
| Net weight (kg) | 170 kg |
| Dimension (W×D×H) mm | 1080x480x1372 mm |
| Operation ambient temperature (°C) | -25 ~ 43 ℃ |
| Operating water temperature heating (°C) | 15 ~ 70 ℃ |
| Operating water temperature cooling (°C) | 7 ~ 35 ℃ |
| Operating water temperature domestic hot water (°C) | 28 ~ 65 ℃ |
| Subject | Action |
|---|---|
| ER01 - Incorrect phase protection Error code | View |
| ER03 - Blockage in the water flow Error code | View |
| ER04 - Anti-freeze protection Error code | View |
| ER05 - High pressure fault Error code | View |
| ER06 - Low pressure fault Error code | View |
| ER10 - Frequency converter module communication fault Error code | View |
| ER12 - Exhaust gas temperature protection too high Error code | View |
| ER14 - Water tank temperature sensor fault Error code | View |
| ER15 - Inlet water temperature sensor fault Error code | View |
| ER16 - Evaporator coil temperature sensor fault Error code | View |
| ER18 - Exhaust temperature sensor fault Error code | View |
| ER21 - Ambient temperature sensor fault Error code | View |
| ER23 - Cooling outlet water temperature ultra-cold protection Error code | View |
| ER26 - Radiator overheat fault Error code | View |
| ER27 - Outlet water temperature sensor fault Error code | View |
| ER29 - Return gas temperature sensor fault Error code | View |
| ER32 - Heating outlet water temperature high protection Error code | View |
| ER33 - Coil temperature is too high Error code | View |
| ER34 - Frequency converter module temperature too high Error code | View |
| ER42 - Cooling pipe temperature sensor fault Error code | View |
| ER62 - Economizer inlet temperature sensor fault Error code | View |
| ER63 - Economizer outlet temperature sensor fault Error code | View |
| ER64 - DC fan 1 fault Error code | View |
| ER66 - DC fan 2 fault Error code | View |
| ER67 - Low pressure switch fault Error code | View |
| ER68 - High pressure switch fault Error code | View |
| ER69 - Low pressure protection Error code | View |
| ER70 - High pressure protection Error code | View |
