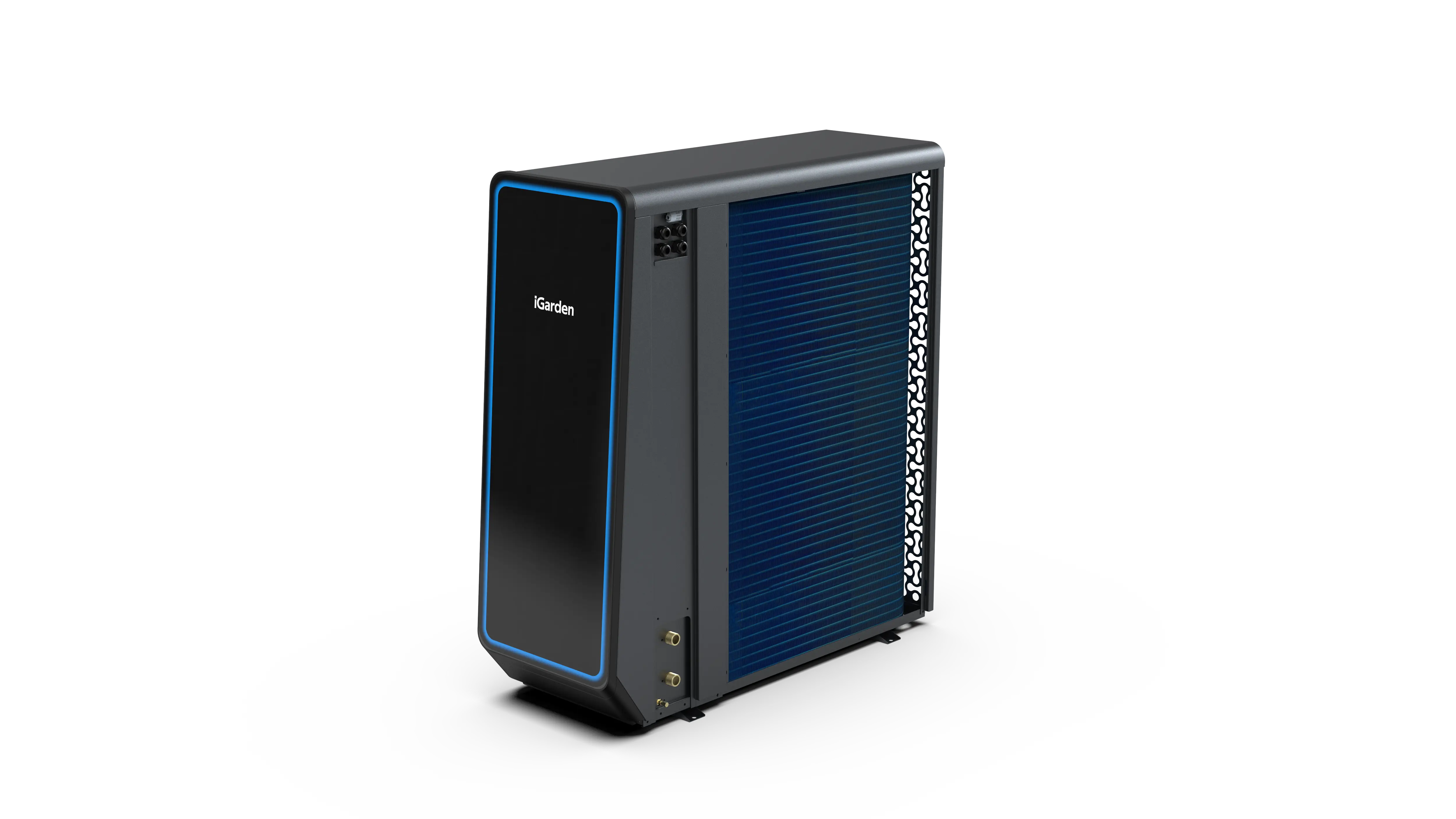

iGarden InverX7 - iGXC16T - Monobloc Air-to-Water Heat Pump with AI Control (16 kW)

iGarden InverX7 iGXC16T 16 kW AI heat pump

The iGarden InverX7 iGXC16T is an intelligent R290 air-to-water heat pump with a nominal heating output of 16 kW. This monobloc heat pump combines AI-controlled modulating inverter technology with high efficiency, quiet operation and a maximum water temperature of 75 °C.

The complete R290 refrigerant circuit is contained within the outdoor unit. The iGXC16T operates from a 380-415 V three-phase power supply with neutral. View the other heat pumps available from Hewa.

AI-controlled inverter technology

The intelligent controller continuously processes operating and temperature data and adjusts inverter output according to current heating demand. This allows the heat pump to modulate efficiently instead of continuously operating at maximum output.

The iGXC16T has a heating-capacity range of 6.41 to 20.64 kW. Its technical COP range is 4.05 to 6.45. Under favourable test conditions, the InverX7 range achieves a COP of up to 7.

A+++ at both 35 °C and 55 °C

The iGarden InverX7 iGXC16T achieves an A+++ energy rating at both 35 °C and 55 °C. With a maximum outlet-water temperature of 75 °C, it can be combined with underfloor heating, low-temperature radiators, fan coils and correctly designed renovation systems.

Heating, active cooling and domestic hot water

In addition to space heating, the InverX7 supports active cooling and control of a suitable external domestic-hot-water cylinder. Wi-Fi, app control, SG Ready, PV Ready and weather-compensated operation support flexible and intelligent system control.

Ready for intelligent energy management

SG Ready and PV Ready allow the InverX7 to be integrated into modern energy systems. External control signals and available photovoltaic energy can therefore be incorporated into the heat pump's operating strategy.

Hydraulic system design

Stable and efficient operation requires sufficient system-water volume and a correctly sized heat-emission system. Depending on the installation, a suitable buffer tank can be used.

The nominal water-flow requirement of the iGXC16T is approximately 3.00 m³/h and the water connections are G1 1/4". Pipe dimensions, circulation, frost protection, condensate drainage and system-water volume must be matched to the individual installation.

Hewa also supplies the pumps, valves, separators and other components required for the hydraulic system within its range of heating connection materials.

Three-phase power for higher output

The iGXC16T operates from a 380-415 V, 50 Hz three-phase power supply with neutral. Maximum electrical power input is 9.5 kW and maximum current is 18.3 A. A 20 A protective device is used as the electrical starting point.

A cable cross-section of 5 x 4 mm² can be used as a technical starting point. Final cable sizing and circuit protection must be determined by a qualified installer based on cable length, installation method and applicable electrical regulations.

Quiet operation and premium design

According to the technical product data, the iGXC16T has a sound-pressure level of 47 dB(A) at one metre and 35 dB(A) at three metres. Actual sound levels depend on factors including installation position, foundation, airflow and vibration isolation.

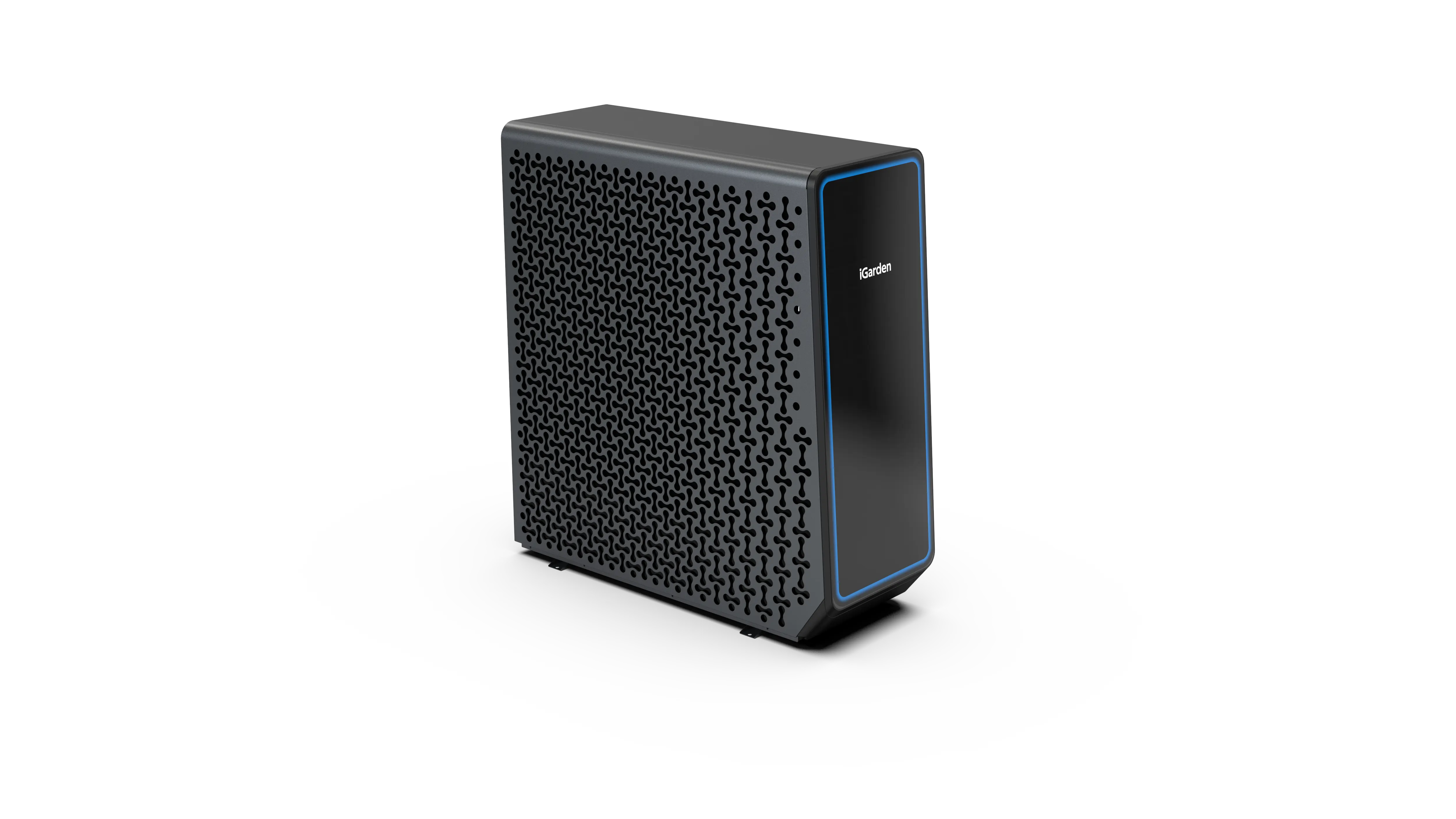

The glass front, integrated lighting and aluminium casing also give the InverX7 a distinctive and premium appearance.

Warranty and support through Hewa

The iGarden InverX7 is covered by a warranty programme consisting of a 3-year exchange guarantee in case of leaks, 5 years on other components and 7 years on the compressor. The applicable installation, registration, commissioning and maintenance conditions apply.
