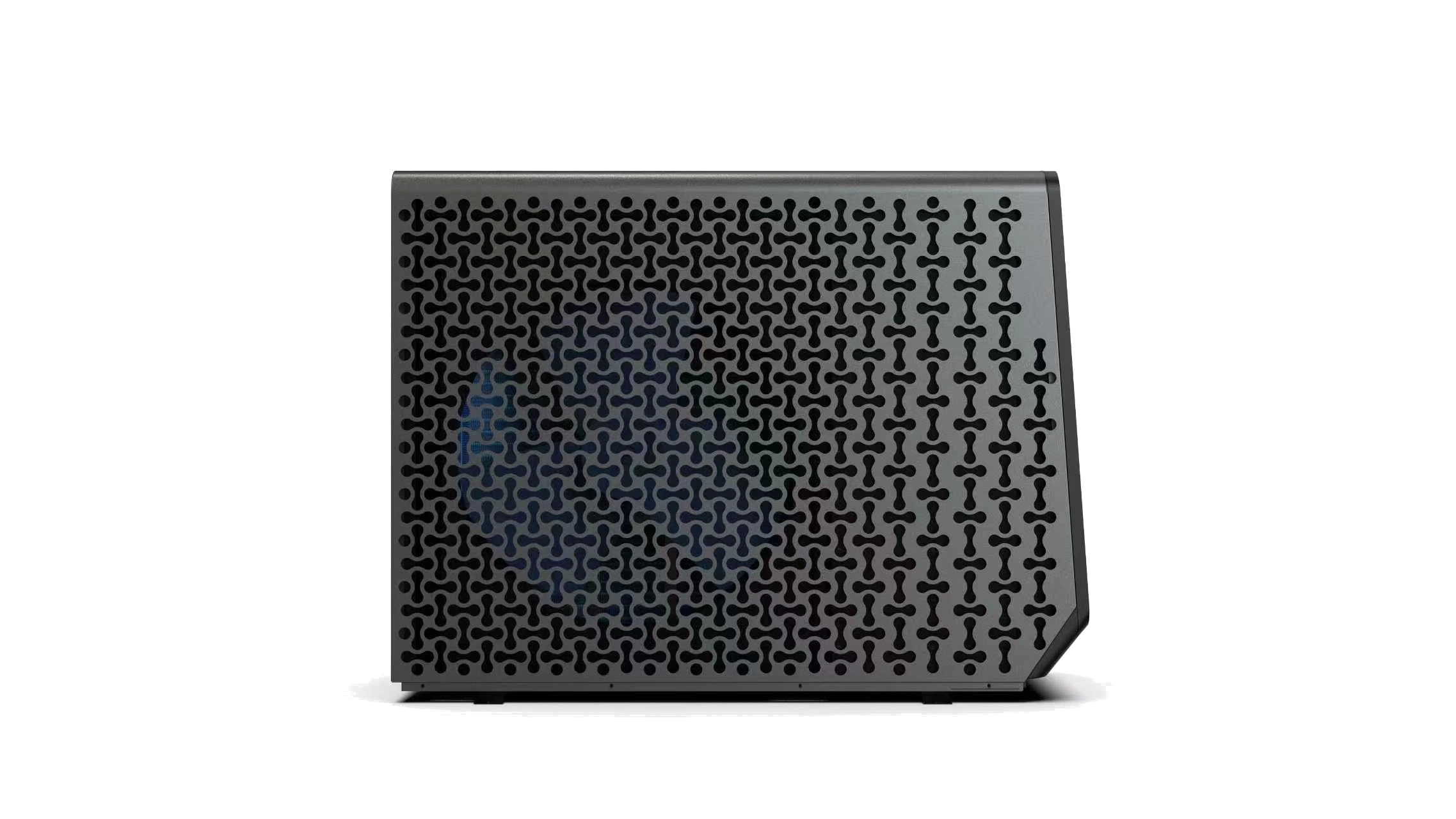

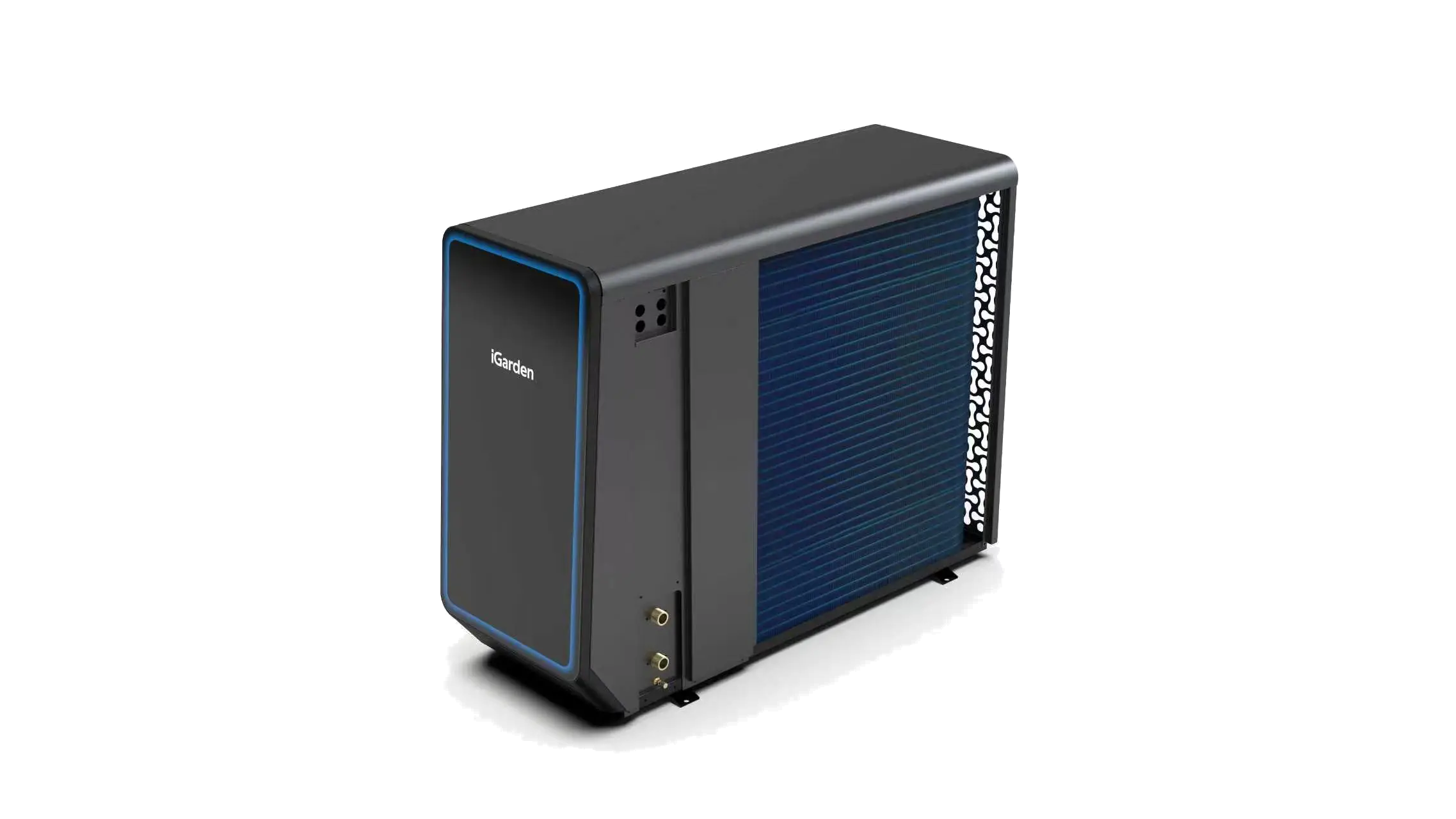

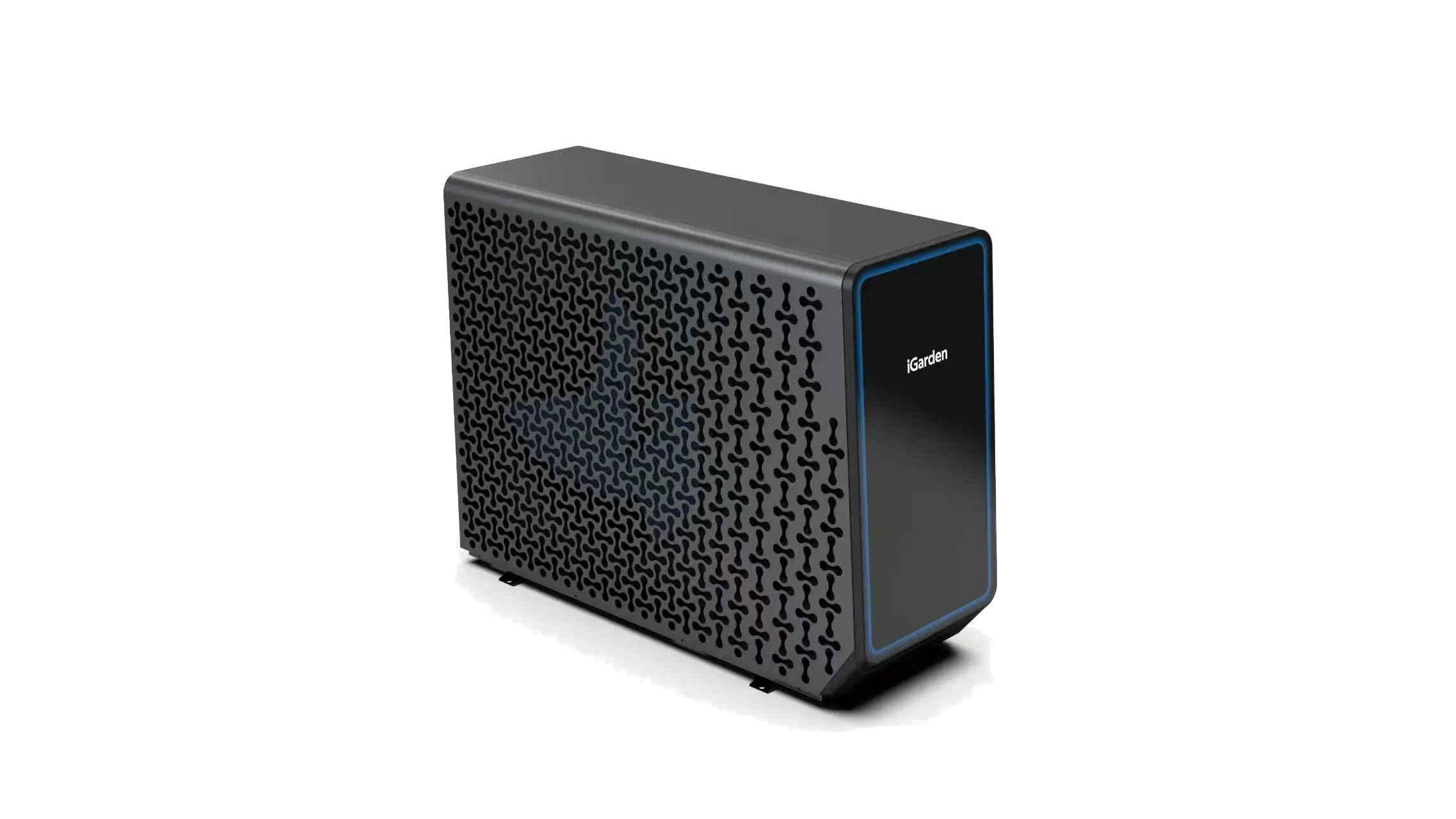

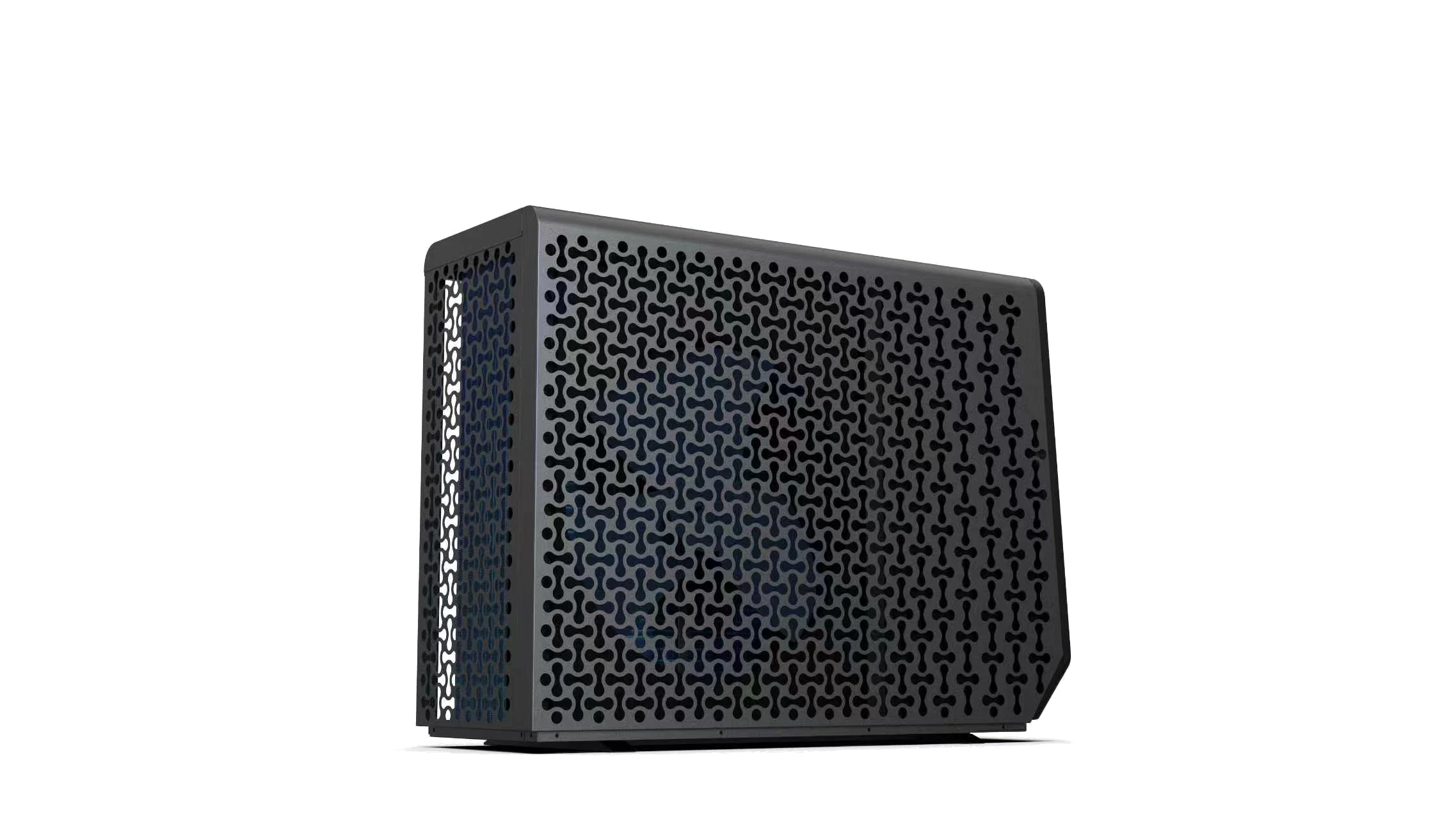

iGarden InverX7 - iGXC11T - Monobloc Air-to-Water Heat Pump with AI Control (11 kW)
Restricted access
On backorder
Delivery deadline: 20 - 30 werkdagen
The iGarden InverX7 iGXC11T is a modulating R290 air-to-water heat pump with a nominal heating output of 11 kW. This three-phase monobloc heat pump supports heating, active cooling and control of an external domestic-hot-water cylinder. With A+++ at 35 °C and 55 °C, a maximum water temperature of 75 °C and a COP of up to 7, the InverX7 combines strong performance with intelligent control and premium design.
Read more
Other variants
Our partner network
iGarden Certified Partners
For homeowners
Let an iGarden Certified Partner contact you
Share your details. Hewa reviews your request and selectively connects you with a suitable iGarden Certified Partner in your region.
For installers
Become an iGarden Certified Partner?
Get direct access to the iGarden range, personal partner support and professional purchasing terms.
- 380-415 V - 50 Hz - 3-phase
- A+++ at 35 °C and 55 °C
- COP of up to 7 under defined test conditions
- Sound-pressure level of 43 dB(A) at 1 metre
- 5-year warranty on other components
- 7-year compressor warranty
iGarden InverX7 iGXC11T 11 kW AI heat pump
The iGarden InverX7 iGXC11T is an intelligent R290 air-to-water heat pump with a nominal heating output of 11 kW. This monobloc heat pump combines AI-controlled modulating inverter technology with high efficiency, quiet operation and a maximum water temperature of 75 °C.
The complete R290 refrigerant circuit is contained within the outdoor unit. The iGXC11T operates from a 380-415 V three-phase power supply with neutral. View the other heat pumps available from Hewa.
AI-controlled inverter technology
The intelligent controller continuously processes operating and temperature data and adjusts inverter output according to the current heating demand. This allows the heat pump to operate efficiently without continuously running at maximum capacity.
The iGXC11T has a heating-capacity range of 3.77 to 13.46 kW. Its technical COP range is 4.13 to 6.95, while the InverX7 range achieves a COP of up to 7.
A+++ at both 35 °C and 55 °C
The iGarden InverX7 iGXC11T achieves an A+++ energy rating at both 35 °C and 55 °C. With a maximum outlet-water temperature of 75 °C, it can be combined with underfloor heating, low-temperature radiators, fan coils and correctly designed renovation systems.
Heating, active cooling and domestic hot water
In addition to space heating, the InverX7 supports active cooling and control of an external domestic-hot-water cylinder. Wi-Fi, app control, SG Ready, PV Ready and weather-compensated operation support flexible and intelligent system control.
Ready for intelligent energy management
SG Ready and PV Ready allow the InverX7 to be integrated into modern energy systems. External control signals and available photovoltaic energy can therefore be incorporated into the heat pump's operating strategy.
Hydraulic system design
Stable and efficient operation requires sufficient system-water volume and a correctly sized heat-emission system. Depending on the installation, a suitable buffer tank can be used.
The nominal water-flow requirement is 1.80 m³/h and the water connections are G1". Hewa also supplies the pumps, valves, separators and other components required for the hydraulic installation within its range of heating connection materials.
Quiet operation and premium design
The iGXC11T has a sound-pressure level of 44 dB(A) at one metre and 30 dB(A) at three metres. Its glass front, integrated lighting and aluminium casing also give the InverX7 a distinctive and premium appearance.
Warranty and support through Hewa
The iGarden InverX7 is covered by a warranty programme consisting of a 3-year exchange Guarantee in Case of Leaks, 5 years on other components and 7 years on the compressor. The applicable installation, registration, commissioning and maintenance conditions apply.
For more information about iGarden and the complete product range, visit our iGarden page.
| Generals | |
|---|---|
| Item number | 760011 |
| EAN Code | 6973156065923 |
| Sizes ((LxWxH):) | 149,5 x 55,5 x 113 cm |
| Specification list | |
| Heating capacity range (kW) | 3.77-13.46 kW |
| Heating power input range (kW/h) | 0.55-3.74 kW |
| COP range | 4.13 - 6.95 |
| Cooling capacity range (kW) | 2.73-12.50 kW |
| Cooling power input range (kW/h) | 0.81-3.57 kW |
| EER range | 2.08-4.20 |
| ErP level (35°C) | A+++ |
| ErP level (55°C) | A+++ |
| Refrigerant | R290 |
| Power supply | 380-415 V - 50 Hz - 3 F |
| Max. power input (kW/h) | 5.9 kW |
| Max. current (A) | 14.6 A |
| Minimum fuse or circuit breaker (A) | 16 A |
| Wire diameter (mm²) | 5 x 2.5 mm² |
| Pipe connection size | G1" aanvoer en retour |
| Max. head (m) | 8 m |
| Noise dB (A) | 43 dB(A) at 1 metre / 29 dB(A) at 3 metres |
| Net weight (kg) | 100 |
| Dimension (W×D×H) mm | 1495 x 555 x 1130 |
| Operation ambient temperature (°C) | -25 tot +43 °C |
| Operating water temperature heating (°C) | 20 tot 75 °C |
| Operating water temperature cooling (°C) | 7 tot 25 °C |
| Operating water temperature domestic hot water (°C) | 20 tot 75 °C |
Possibly also interesting

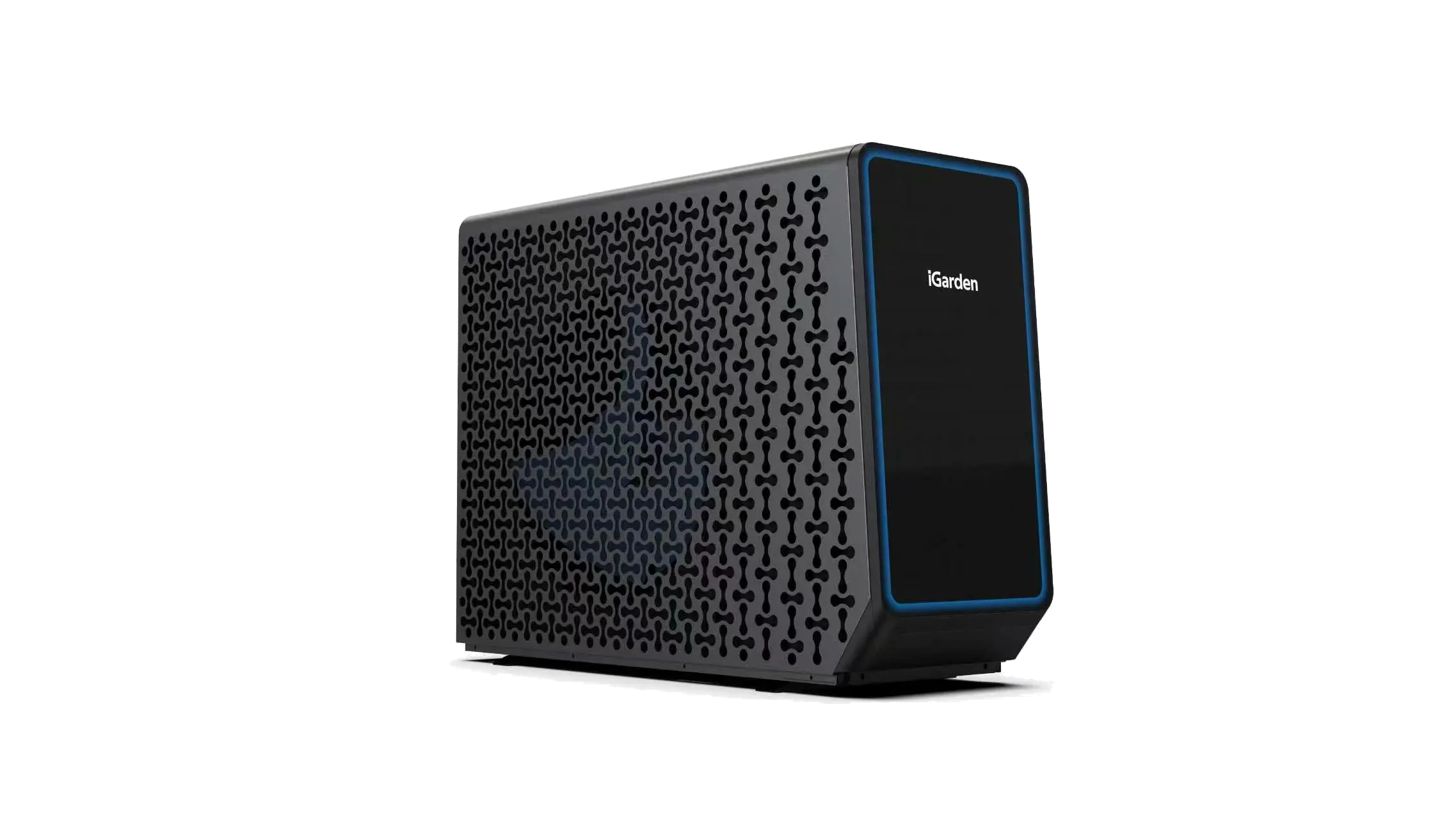

iGarden InverX7 - iGXC8 - Monobloc Air-to-Water Heat Pump with AI Control (8 kW)
Item no. 760008EAN 6973156065978
Restricted access
On backorder
Added
iGarden InverX7 - iGXC13T - Monobloc Air-to-Water Heat Pump with AI Control (13 kW)
Item no. 760013EAN 6973156065947
Restricted access
On backorder
Added

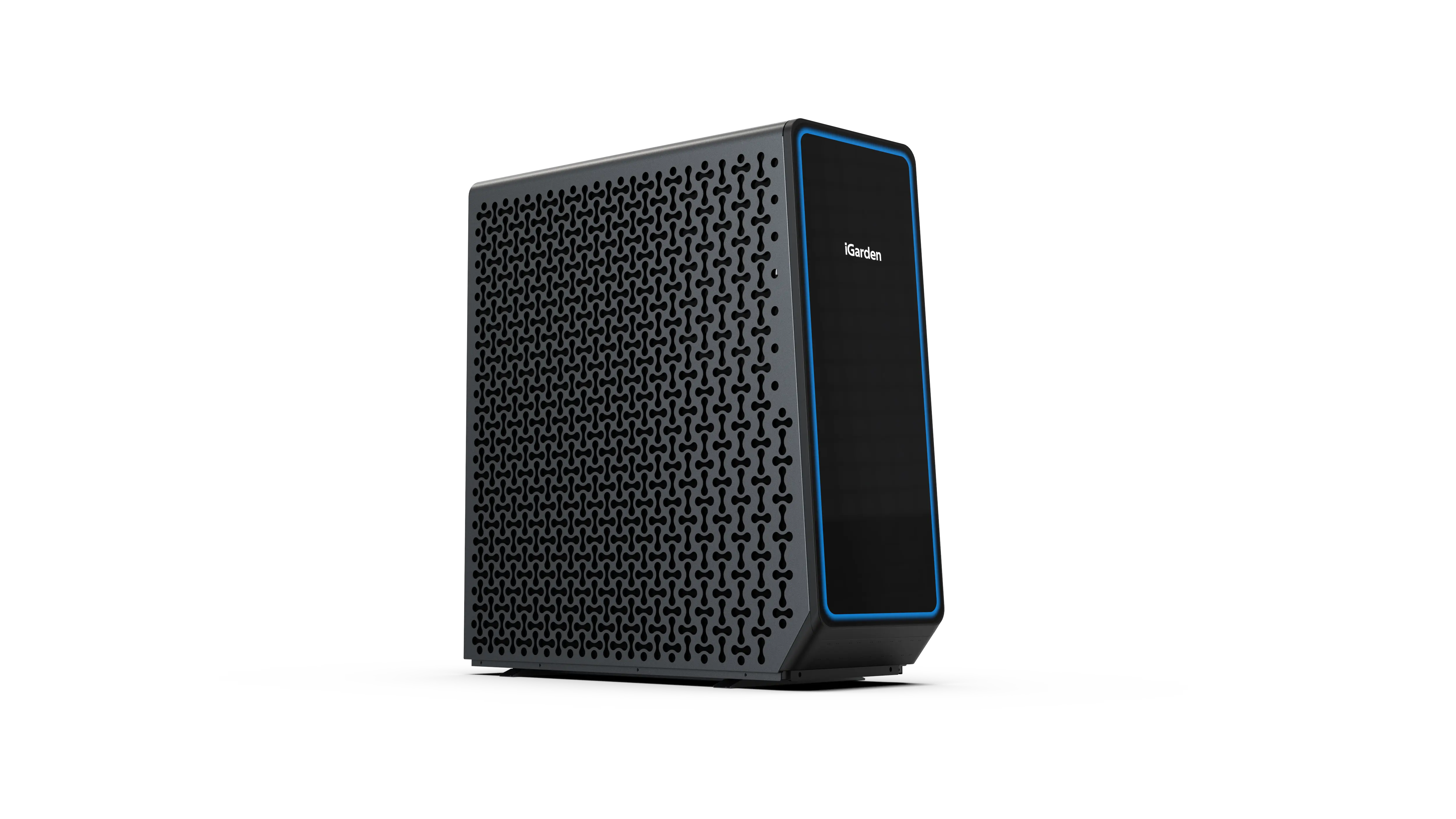

iGarden InverX7 - iGXC16T - Monobloc Air-to-Water Heat Pump with AI Control (16 kW)
