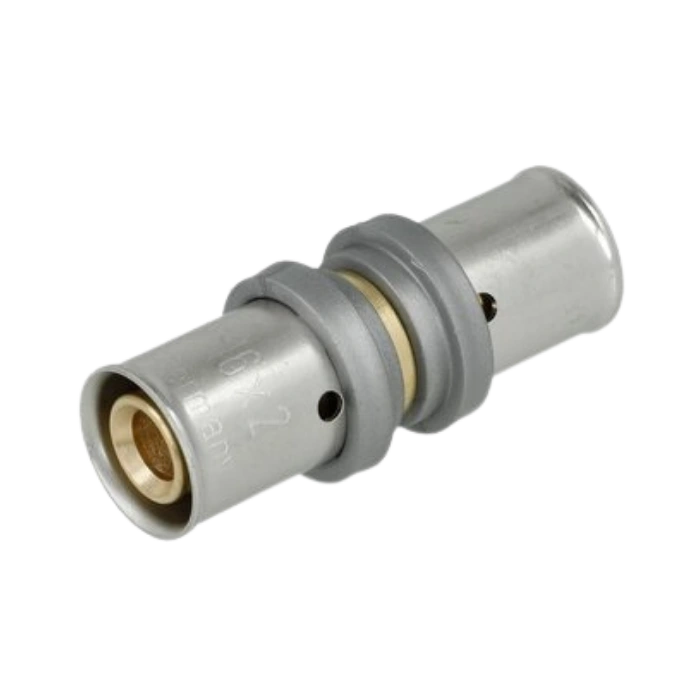

OEG straight press coupling 16 mm

Price excl. VAT€ 3,18Price incl. VAT€ 3,85

Another 17 In stock

Item number: 340002
EAN: 4055668010959

OEG straight press coupling 16 mm for secure and leak-free connection of multilayer piping. Read more

SilverTec® quality fitting from OEG
Suitable for 16 mm multilayer pipe
Compatible with TH and U press tools
Brass CW617N body
EPDM sealing ring
Leak detection if not pressed
Low pressure loss

Compare

Go to comparison

Reliable straight connection for multilayer pipes

The OEG straight press coupling 16 mm is designed for securely connecting multilayer pipes of the same diameter in heating and drinking water systems.

TH Contour for dependable press sealing

The TH Contour ensures even compression around the pipe. Unpressed connections remain intentionally leaking for immediate visual inspection during pressure testing.

Efficient installation on site

Compatible with both TH and U press tools, this coupling allows fast and repeatable installation without soldering or threading.

Part of the OEG press fitting system

Combine with installation materials for a complete system solution.

Generals
Item number	340002
EAN Code	4055668010959
Price excl. VAT	€ 3,18
Price incl. VAT	€ 3,85
Sizes ((LxWxH):)	3 x 2 x 2 cm
Specification list
Type	Straight coupling
Connection size	16 x 2 mm
Press contour	TH / U
Material	Brass CW617N
Seal	EPDM
Max. working pressure	10 bar
Max. operating temperature	95 °C
Application	Press contour TH, Press contour U, Suitable for surface and ceiling cooling, Suitable for surface and ceiling heating, Suitable for sanitary installations, Suitable for drinking water, not pressed, leaking, Suitable for oil-free compressed air application
Weight	0.10 kg
