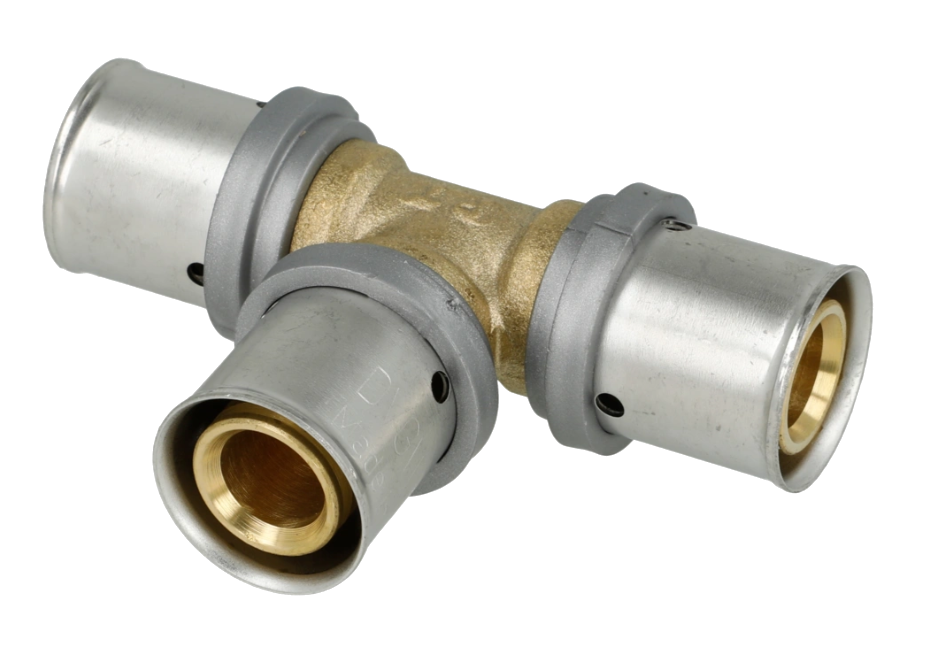

OEG 802030094 - TH Profile Press Tee (20 mm)
- 20 mm press tee fitting
- SilverTec® professional fitting
- Multi-contour press profile
- Compatible with TH press jaws
- Compatible with U-profile jaws up to 32 x 3 mm
- Forced leak detection when unpressed
- 3 inspection windows
Professional press tee for multilayer pipe systems
The OEG 802030094 TH profile press tee (20 mm) from the SilverTec® range is designed for creating secure branch connections within multilayer pipe systems used in potable water, heating and technical installations.
Fast installation with maximum safety
The press connection enables fast installation without soldering or threaded joints, resulting in a durable and reliable connection.
Forced leak detection for installation control
Unpressed connections intentionally remain detectable during pressure testing, allowing installers to identify and correct installation errors immediately.
Multi-contour compatibility
The fitting is fully compatible with TH-profile press jaws and, up to 32 x 3 mm, can also be installed using U-profile press jaws.
Inspection windows for correct insertion depth
Three integrated inspection windows allow visual verification of pipe insertion depth before pressing, improving installation reliability.
Low pressure loss and quiet operation
The optimized internal geometry ensures low pressure loss and helps minimize flow noise within the pipe system.
Suitable for potable water and heating systems
The fitting complies with potable water regulations and is approved according to the UBA Positive List.
Support from Hewa
Hewa supplies SilverTec® press fittings, multilayer pipe systems and installation materials for professional heating and plumbing projects.
| Generals | |
|---|---|
| Item number | 340094 |
| EAN Code | 4055668011482 |
| Price excl. VAT | € 6,57 |
| Price incl. VAT | € 7,95 |
| Sizes ((LxWxH):) | 7 x 5 x 4 cm |
| Specification list | |
| Type | T-piece |
| Connection size | 20 x 2 mm |
| Press contour | TH / U |
| Material | Brass CW617N |
| Seal | EPDM |
| Max. working pressure | 10 bar |
| Max. operating temperature | 95 °C |
| Application | Aluminum multilayer composite pipe, drinking water installations, sanitary installations, surface and ceiling heating, surface and ceiling cooling, radiator connections, oil-free compressed air up to 10 bar |
| Weight | 0.22 kg |
