BURNiT NWB PRIME 110 - Wood boiler (110 kW)

Powerful wood boiler for large heating systems

The BURNiT NWB PRIME 110 wood boiler (110 kW) is designed for projects with high heat demand, such as large workshops, agricultural buildings, commercial facilities, technical rooms and larger heating systems. With 110 kW output, this wood-fired boiler provides a strong foundation for installations where lower output models are not sufficient.

Designed for professional use

This model within the NWB PRIME range is suitable for applications where output, reliability and practical operation must come together. For installers and technical buyers, it is a strong choice when a robust wood boiler is required for a larger hydraulic system with buffer storage, control equipment and heat distribution.

Electronic control with fan operation

The BURNiT NWB PRIME 110 is equipped with intelligent electronic control that operates the fan. This allows the combustion process to run in a more controlled way and helps match heat output to the current demand of the installation. The result is more stable performance and better manageable firing behaviour.

Large combustion chamber for logs up to 50 cm

The large firebox door makes it easier to load logs up to 50 cm. This improves user convenience and makes the boiler suitable for daily operation in larger heating systems. The generous combustion chamber supports practical and efficient use under intensive heating demand.

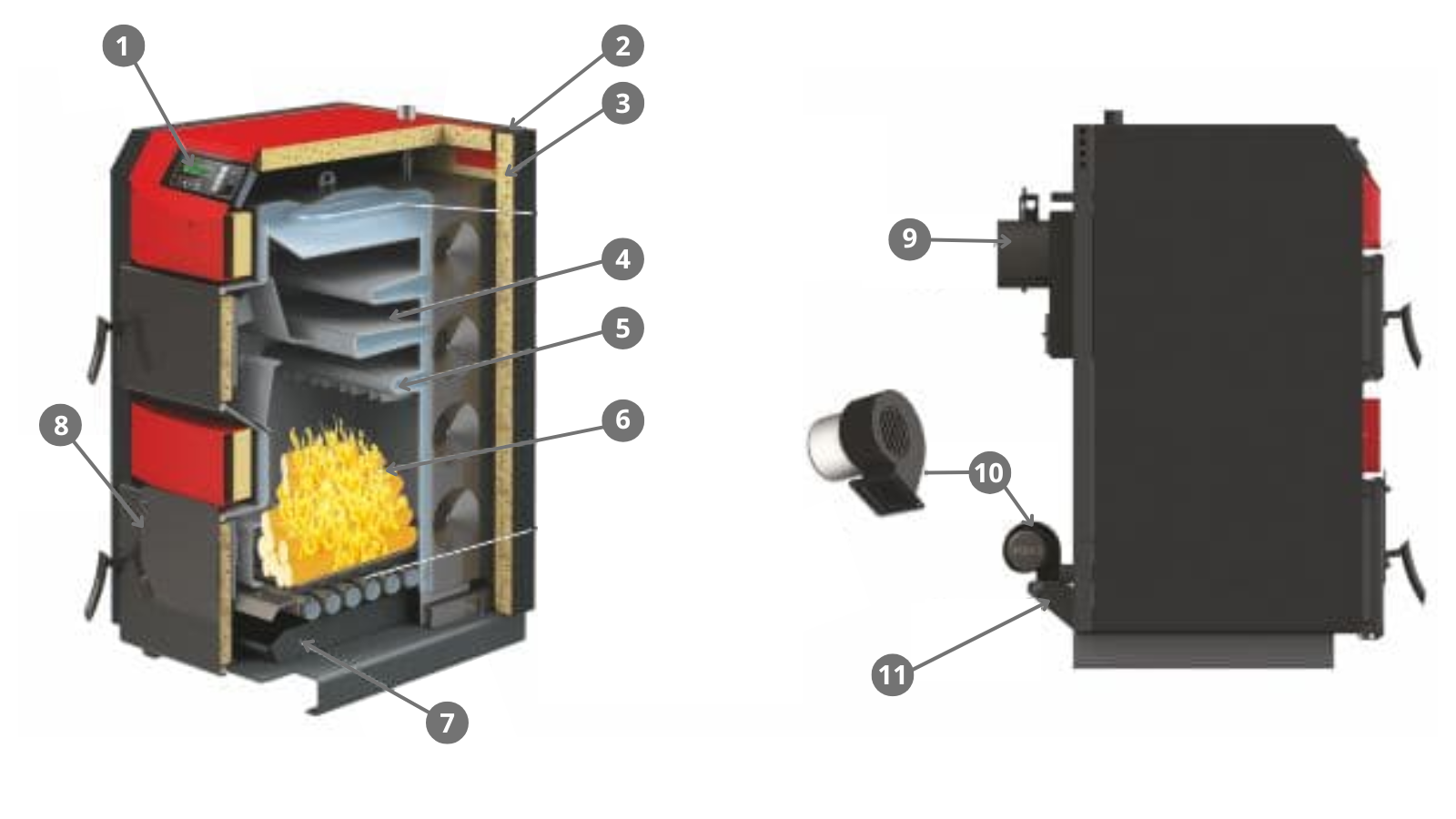

Three-pass flue gas path and full water jacket

The three-pass flue gas path and full water jacket around the combustion chamber ensure effective heat transfer to the heating water. The ribbed combustion chamber and flue gas route are designed to extract as much usable heat as possible from the combustion process and support overall system efficiency.

Flexible extension with other burners

The BURNiT NWB PRIME 110 is prepared for extension with pellet, oil or gas burners. This keeps the system flexible when fuel choices, project requirements or future customer needs change. For larger heating projects, this provides additional long-term planning security.

Safety and certification

This wood boiler is equipped with key safety components, including an STB emergency thermostat, a 3 bar safety valve, a safety heat exchanger and an air inlet valve. The NWB PRIME range is tested and approved according to EN 303-5, which is important for professional use and technical assessment.

Application with buffer tanks and complete system design

For a 110 kW wood boiler, correct system design is essential. This includes sufficient buffer capacity, proper hydraulic connection, suitable control strategy and reliable protection of the heating circuit. The BURNiT NWB PRIME 110 therefore forms a strong base for complete wood-fired heating installations.

Support from Hewa

Hewa supplies wood boilers, buffer tanks, valves and installation materials for professional heating systems. Installers can rely on technical advice and suitable components for a complete and reliable system setup.
