Mikoterm mTronic 7000 - Electric boiler (9 kW)
Price excl. VAT€ 859,46Price incl. VAT€ 1.039,95
Op nalevering
The Mikoterm mTronic 7000 (9 kW) is an electric boiler with internal tank and adjustable 1.5 kW steps. Perfect for hybrid systems or as a backup heater.
Read more
Other variants
- 9 kW output for medium to larger homes and buildings
- Not approved as main heating under efficiency regulations
- Adjustable in 1.5 kW steps for optimal efficiency
- 12.5-litre tank for constant hot water supply
- Fully equipped with pump, expansion vessel and safety components
- Safe and quiet operation with CPU control and relays
- Hybrid compatible with solar, heat pumps and PV systems
Powerful electric heating solution
The Mikoterm mTronic 7000 - Electric boiler (9 kW) is designed for buildings with higher heating demand. With more output than the 6 kW version, it is suitable for medium to larger homes and commercial properties.
Not approved as primary heating system
According to current energy efficiency regulations, an electric boiler like the mTronic 7000 cannot be used as the main heating system in residential buildings. It does not meet the required standards for system efficiency. In practice, it is best applied as a hybrid or auxiliary solution, not as a standalone replacement for gas.
Flexible output control in 1.5 kW steps
A key advantage of the 9 kW model is its adjustable output setting. The boiler can modulate in 1.5 kW increments, ensuring the power output always matches the current heat demand. This improves efficiency and reduces wear on components.
Integrated tank and complete equipment

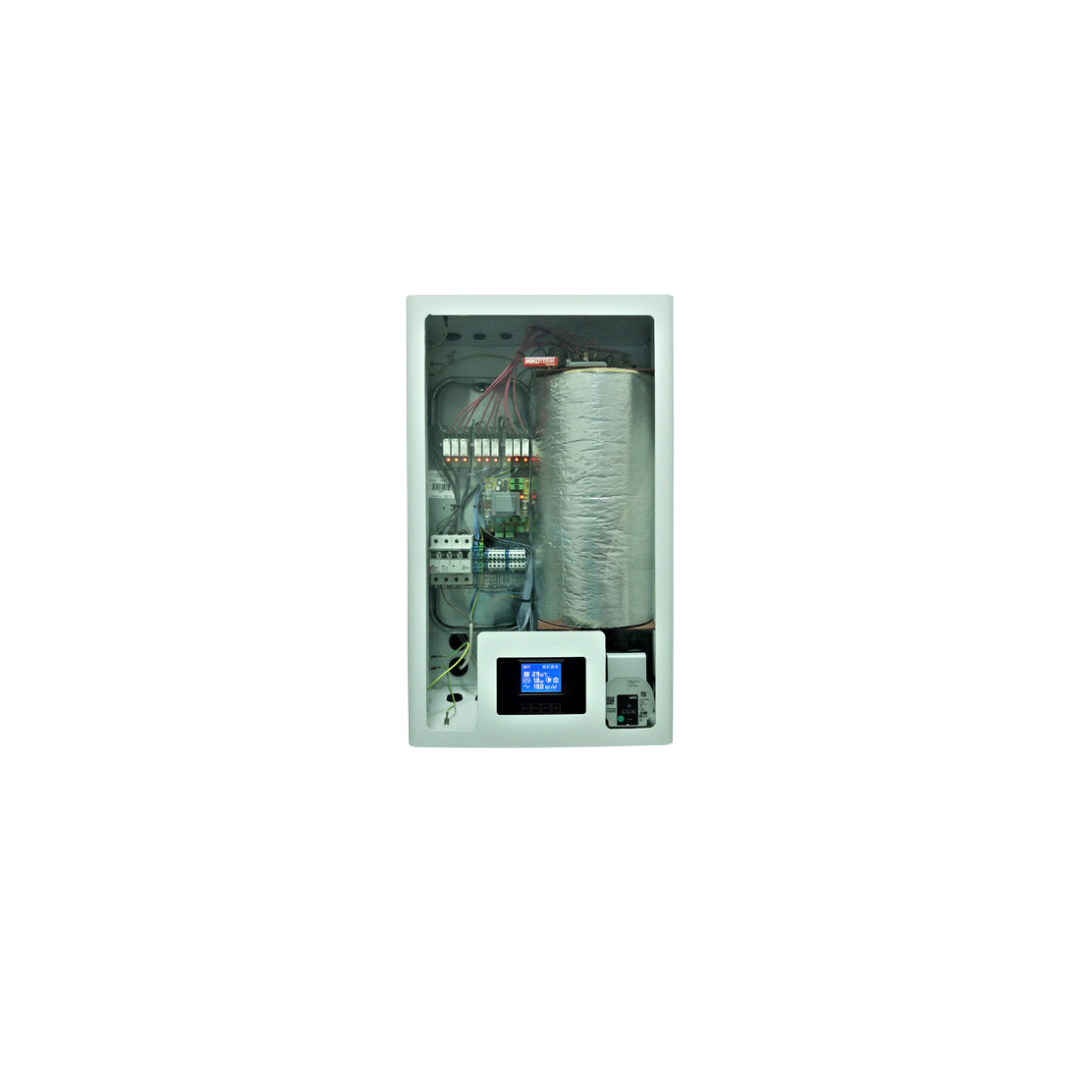

The integrated 12.5-litre tank ensures constant hot water supply. The unit also includes an A-label pump, expansion vessel, safety valve and overpressure valve – ready for direct installation into existing systems.
Quiet and safe operation
With silent relays, the boiler operates almost noiselessly. The CPU unit continuously monitors all parameters, automatically intervenes when needed and provides a full safety shutdown in case of faults.
Designed for hybrid installations
The mTronic 7000 (9 kW) can be easily combined with a buffer tank, a solar water heater or a heat pump water heater, making it highly suitable for sustainable projects.
Support from Hewa
Hewa supplies the Mikoterm mTronic 7000 - Electric boiler (9 kW) directly from stock and supports installers with technical documentation, advice and fast delivery.
| Generals | |
|---|---|
| Item number | 380109 |
| EAN Code | 8721082877794 |
| Price excl. VAT | € 859,46 |
| Price incl. VAT | € 1.039,95 |
| Sizes ((LxWxH):) | 23 x 43 x 71 cm |
| Specification list | |
| Power (kW) | 9 kW |
| Power efficiency (%) | 99 % |
| Number of elements | 6 |
| Power distribution (kW) | 6 x 1.5 kW |
| Power supply | 3N ~ 400/230VAC 50Hz |
| Protection level | IP40 |
| Fuses required for single-phase supply (A) | 1 x 50 A |
| Minimum cross-section of single-phase cable (mm²) | 3 x 6 mm² |
| Fuses required for three-phase supply (A) | 3 x 20 A |
| Minimum cross-section of three-phase cable (mm²) | 5 x 2.5 mm² |
| Safety valve (bar) | 3 bar |
| Min. allowable operating pressure (bar) | 0.3 bar |
| Max. allowable operating pressure (bar) | 2.6 bar |
| Temperature range (°C) | 10 - 80 °C |
| Safety thermostat (°C) | 95 °C |
| Water volume in boiler (L) | 12.5 L |
| Expansion vessel (L) | 8 L |
| Water pipe connection size | G 3/4" M |
| Weight (kg) | 25 kg |
| Dimension (W×D×H) mm | 430x230x710 mm |
| Processor unit | EK_CPU_1_3 |
