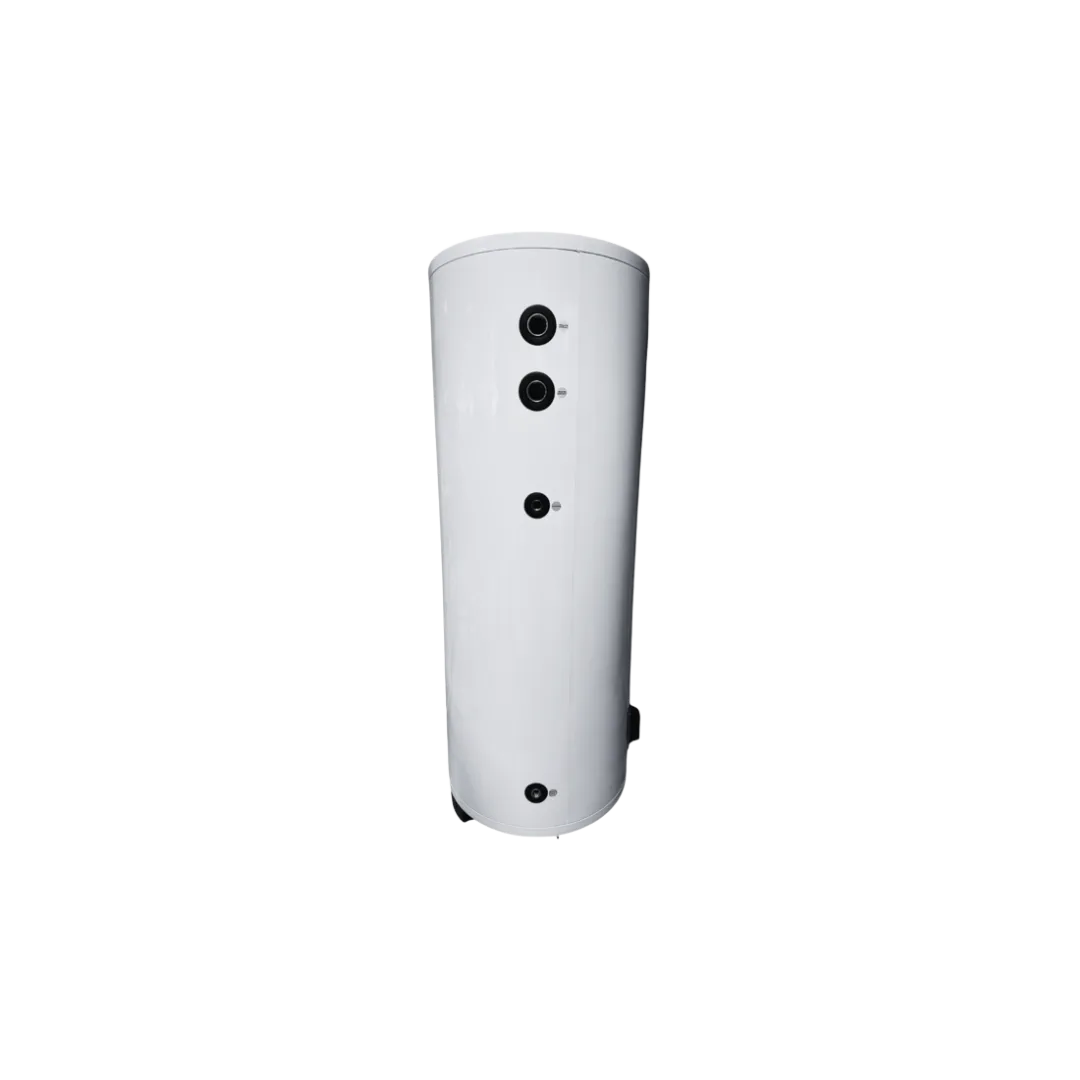

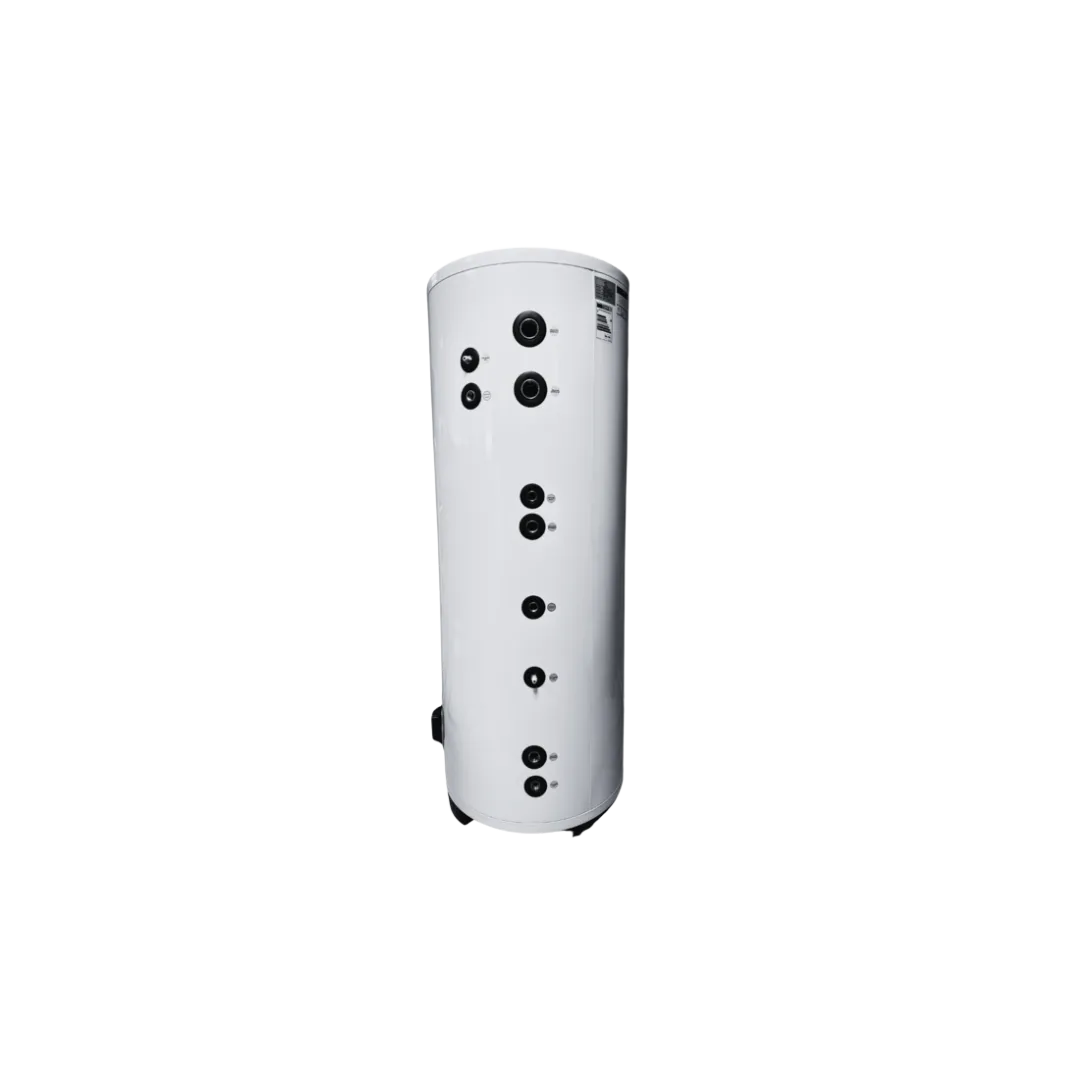

ALPS EXCLUSIVE WKB-HV-300/150L(V2) – Stainless Combination Tank (300/150L)
Other variants
- 2-in-1: 300L DHW + 150L heating buffer
- Thermally separated tanks, minimal losses
- Stainless steel design, corrosion-resistant and low-maintenance
- High-performance heat exchanger for fast heating
- Suitable for heating and cooling applications
- Space-saving, installer-friendly unit
Why choose the ALPS EXCLUSIVE Combination Tank 300/150L(V2)?
Need a solution for high hot-water demand and stable heating support? The ALPS EXCLUSIVE WKB-HV-300/150L(V2) combines a 300-litre DHW tank with a 150-litre heating buffer in one compact stainless-steel unit.
Thermal separation for maximum efficiency
The thermally separated sections minimise energy losses. The buffer reduces boiler/heat pump cycling, while the DHW tank ensures a steady supply – even at peak times.
Efficient heat exchanger
The large heat exchanger provides rapid heating and maximises available energy. Ideal for pairing with **/warmtepompen** (heat pumps), **/zonneboilersystemen** (solar), or an existing **/cv-installatie**.
Heating and cooling in one
The buffer not only supports heating but also low-temperature cooling, e.g. with underfloor or surface systems in summer.
Durable stainless steel build
Made of high-grade stainless steel, corrosion-resistant and built for longevity. Thick PU insulation reduces heat loss, improves efficiency and lowers running costs.
Easy to integrate
- Compact footprint: DHW and buffer in one unit
- Connections designed for quick installation
- Prepared for optional electric element
- Suitable for new-build and retrofit systems
Who is this model for?
- Families with high hot-water demand
- Small commercial uses such as B&Bs or sports clubs
- Hybrid systems combining multiple energy sources
- Projects prioritising efficiency and space saving
Conclusion
The ALPS EXCLUSIVE WKB-HV-300/150L(V2) delivers hot-water comfort and heating support in one compact stainless-steel tank. With large capacity, efficiency and long service life, it is a future-ready solution. Hewa provides full support with selection, delivery and installation.
| Generals | |
|---|---|
| Item number | 394315 |
| EAN Code | 8721082877947 |
| Price excl. VAT | € 1.817,36 |
| Price incl. VAT | € 2.199,01 |
| Sizes ((LxWxH):) | 70 x 70 x 200 cm |
| Specification list | |
| Volume | 300L DHW 150L BT |
| Diameter | 700 mm |
| Height | 2000 mm |
| Inner tank material | SUS 316L |
| Insulation layer thickness | 60 mm |
| Insulation | Polyurethane |
| Working pressure buffer tank | 4 bar |
| Working pressure DHW tank | 4 bar / 6 bar |
| Empty weight | 101 kg |
| Circulation 1 inlet | G 1 1/2" F |
| Circulation 1 outlet | G 1 1/2" F |
| Circulation 2 inlet | G 1 1/2" F |
| Circulation 2 outlet | G 1 1/2" F |
| Circulation 3 inlet | G 1 1/2" F |
| Circulation 3 outlet | G 1 1/2" F |
| Temperaturesensor port | DN 15 / 1/2" G F | Prepared immersion tube |
| Drain | G 3/4" F |
| Air vent | G 1/2" F |
| Heat exchanger inlet | G 1" F |
| Heat exchanger outlet | G 1" F |
| Electric (backup) heater | G 1 1/2" F |
| Domestic hot water outlet | G 3/4" F |
| Domestic cold water inlet | G 3/4" F |
| Magnesium port | G 3/4" F |
| Pressure valve | G 3/4" F |
| Drain | G 3/4" F |
| Heat exchanger material | SUS 316L |
| Heat exchanger length | 33 m (25 mm) |
| Heat exchanger surface area | 2.6 m2 |
| Recirculation port | G 3/4" F |
| Inhoud | 300/150L |
