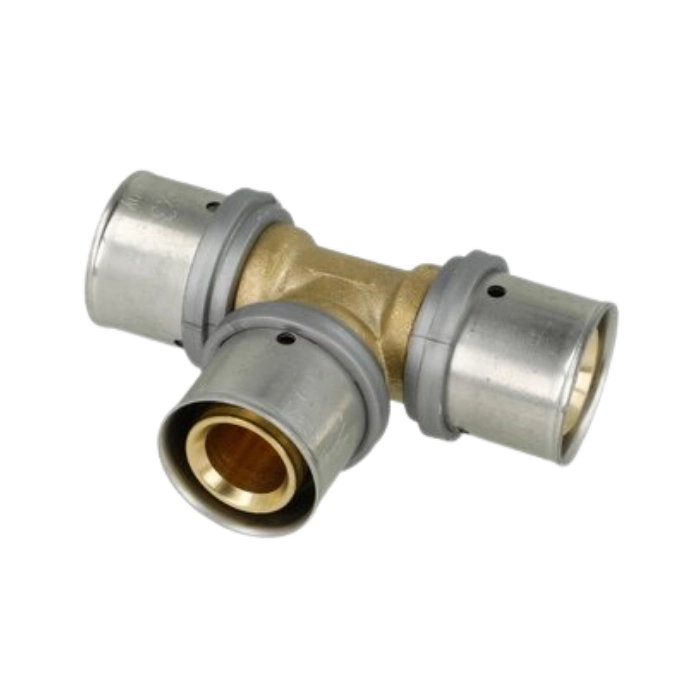

OEG T-piece TH Contour 32 mm
- Quality product from OEG
- Press T-piece for 32 mm multilayer pipes
- Compatible with TH and U press contours
- EPDM seal for leak-free connection
- Leaks when not pressed (safety feature)
- Fast installation without soldering
- Fast installation without soldering
High-capacity T-piece for 32 mm multilayer pipe systems
The OEG T-piece TH Contour 32 mm is designed for safely distributing pipelines in multilayer composite pipe systems with higher flow requirements. It is ideal for main lines in heating and water installations.
TH Contour technology for reliable sealing
The TH Contour ensures uniform pressing around the pipe. Combined with the EPDM seal, this results in a durable, leak-free connection. Unpressed joints remain intentionally leaking for installation safety.
Fast installation without open flame
Installation is quick and efficient using TH or U contour press tools, eliminating the need for soldering or welding.
Wide range of applications
Suitable for potable water systems, surface heating and cooling, radiator connections and oil-free compressed air applications up to 10 bar.
Part of a complete OEG press system
Combine this T-piece with installation materials for a complete professional solution.
| Generals | |
|---|---|
| Item number | 340098 |
| EAN Code | 4055668011505 |
| Price excl. VAT | € 14,10 |
| Price incl. VAT | € 17,06 |
| Sizes ((LxWxH):) | 8 x 4 x 4 cm |
| Specification list | |
| Type | T-piece |
| Connection size | 32 x 3 mm |
| Press contour | TH / U |
| Material | Brass CW617N |
| Seal | EPDM |
| Max. working pressure | 10 bar |
| Max. operating temperature | 95 °C |
| Application | Aluminum multilayer composite pipe, drinking water installations, sanitary installations, surface and ceiling heating, surface and ceiling cooling, radiator connections, oil-free compressed air up to 10 bar |
| Weight | 0.11 kg |
