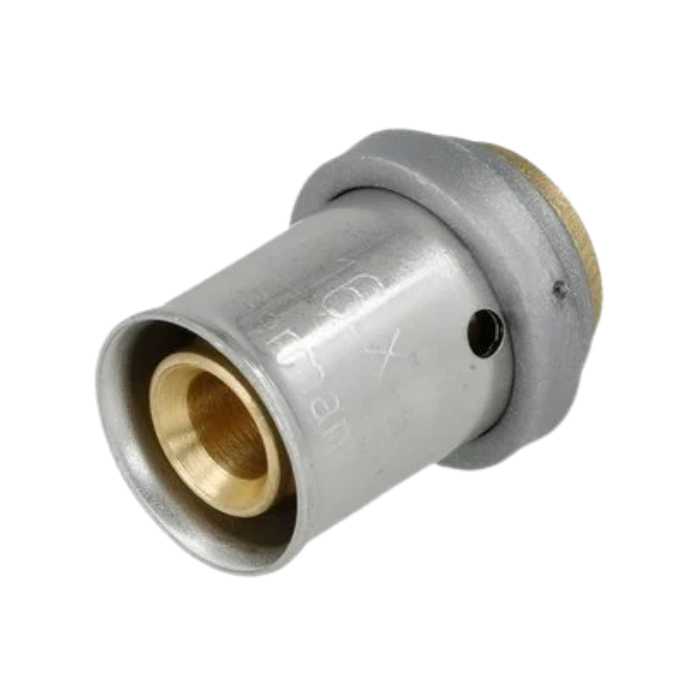

OEG press end cap 16 mm
Price excl. VAT€ 3,55Price incl. VAT€ 4,30
Another 16 In stock
OEG press end cap 16 mm for professional sealing of multilayer piping systems.
Read more
- Quality fitting from OEG
- End cap for 16 mm multilayer pipe
- Compatible with TH and U press tools
- Brass CW617N with SilverTec coating
- EPDM sealing ring
- Visual leak detection if not pressed
- Suitable for temporary or permanent sealing
Safe sealing of multilayer pipes
The OEG press end cap 16 mm is designed to securely seal multilayer pipes in heating and plumbing installations.
TH Contour for reliable press sealing
The TH Contour ensures even compression around the pipe, creating a durable and leak-free seal. Unpressed fittings remain intentionally leaking for visual installation control.
Flexible use during installation and future expansion
Ideal for closing unused connections or preparing pipework for future system extensions.
Part of the OEG press fitting system
Combine with installation materials for a complete installation solution.
| Generals | |
|---|---|
| Item number | 340230 |
| EAN Code | 4055668012076 |
| Price excl. VAT | € 3,55 |
| Price incl. VAT | € 4,30 |
| Sizes ((LxWxH):) | 3 x 2 x 2 cm |
| Specification list | |
| Type | End cap |
| Connection size | 16 x 2 mm |
| Press contour | TH / U |
| Material | Brass CW617N |
| Seal | EPDM |
| Max. working pressure | 10 bar |
| Max. operating temperature | 95 °C |
| Application | Press contour TH, Press contour U, Suitable for surface and ceiling cooling, Suitable for surface and ceiling heating, Suitable for sanitary installations, Suitable for drinking water, not pressed, leaking, Suitable for oil-free compressed air application |
| Weight | 0.03 kg |
