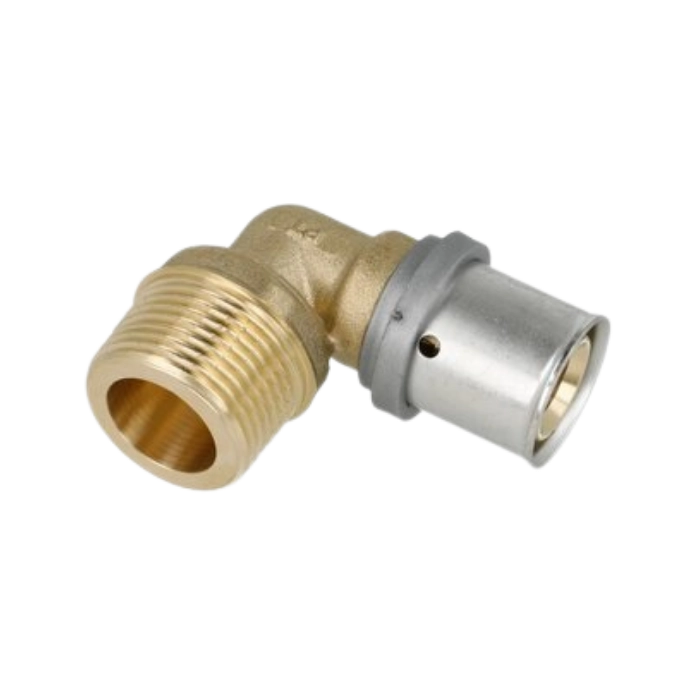

OEG 90° press elbow reducer 20 mm x G 3/4" M

Price excl. VAT€ 4,89Price incl. VAT€ 5,92

Another 19 In stock

Item number: 340072
EAN: 4055668011376

OEG 90° press elbow reducer 20 mm x G 3/4" M for compact connections between multilayer pipes and male threaded components. Read more

Quality fitting from OEG
90° elbow with size reduction
Compatible with TH and U press tools
Brass CW617N with SilverTec coating
EPDM sealing ring
Visual leak detection when not pressed
Ideal for confined installation spaces

Compare

Go to comparison

Compact press elbow with threaded transition

The OEG 90° press elbow reducer 20 mm x G 3/4" M is designed for installations where pipe direction and connection size need to change simultaneously.

TH Contour for reliable pressing

The TH Contour ensures even compression around the multilayer pipe. Combined with the EPDM seal, this creates a durable, leak-free joint.

Reduced number of fittings

By integrating the elbow and reducer in one fitting, installation time is reduced and system reliability is increased.

Suitable for heating and plumbing systems

Commonly used for radiator connections, manifolds and compact installations where space is limited.

Part of the OEG press system

Combine with installation materials for a complete solution.

Generals
Item number	340072
EAN Code	4055668011376
Price excl. VAT	€ 4,89
Price incl. VAT	€ 5,92
Sizes ((LxWxH):)	5 x 3 x 3 cm
Specification list
Type	90° elbow reducer, male thread
Connection size	20 x 2 mm x G 3/4" M
Press contour	TH / U
Material	Brass CW617N
Seal	EPDM
Max. working pressure	10 bar
Max. operating temperature	95 °C
Application	Press contour TH, Press contour U, Suitable for surface and ceiling cooling, Suitable for surface and ceiling heating, Suitable for sanitary installations, Suitable for drinking water, not pressed, leaking, Suitable for oil-free compressed air application
Weight	0.11 kg
