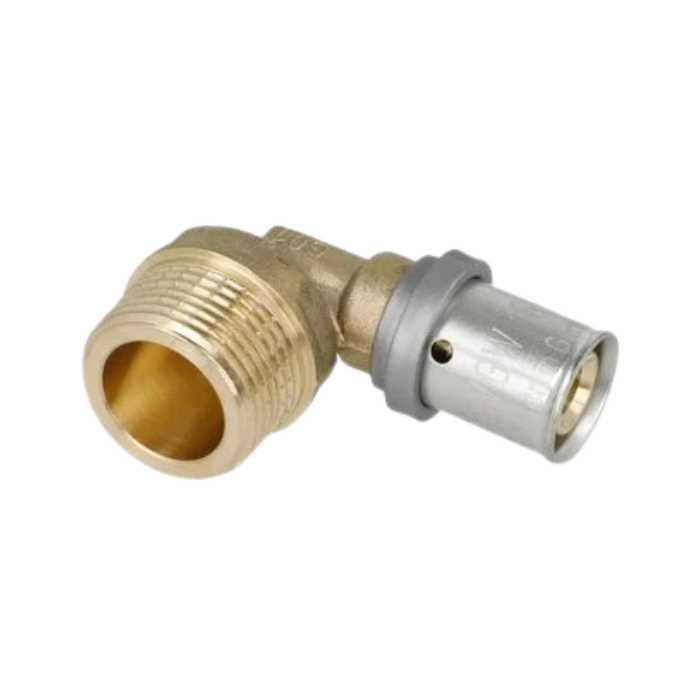

OEG 90° press elbow reducer 16 mm x G 3/4" M

Price excl. VAT€ 4,08Price incl. VAT€ 4,94

Another 9 In stock

Item number: 340069
EAN: 4055668011352

OEG 90° press elbow reducer 16 mm x G 3/4" M for compact connections between multilayer pipes and male threaded fittings. Read more

Quality fitting from OEG
90° elbow with size reduction
Compatible with TH and U press tools
Brass CW617N with SilverTec coating
EPDM sealing ring
Visual leak detection if not pressed
Ideal for radiator and valve connections

Compare

Go to comparison

Compact press elbow with threaded transition

The OEG 90° press elbow reducer 16 mm x G 3/4" M is designed for installations where a right-angle connection to a male threaded component is required.

TH Contour for controlled pressing

The TH Contour ensures even compression around the multilayer pipe. Together with the EPDM seal, this creates a durable, leak-free connection.

Efficient installation in confined spaces

By combining direction change and size reduction in one fitting, installation time is reduced and system reliability is improved.

Widely applicable in HVAC systems

Commonly used for radiator connections, manifolds and compact plumbing and heating installations.

Part of the OEG press fitting system

Combine with installation materials for a complete solution.

Generals
Item number	340069
EAN Code	4055668011352
Price excl. VAT	€ 4,08
Price incl. VAT	€ 4,94
Sizes ((LxWxH):)	6 x 3 x 3 cm
Specification list
Type	90° elbow reducer, male thread
Connection size	16 x 2 mm x G 3/4" M
Press contour	TH / U
Material	Brass CW617N
Seal	EPDM
Max. working pressure	10 bar
Max. operating temperature	95 °C
Application	Press contour TH, Press contour U, Suitable for surface and ceiling cooling, Suitable for surface and ceiling heating, Suitable for sanitary installations, Suitable for drinking water, not pressed, leaking, Suitable for oil-free compressed air application
Weight	0.2 kg
