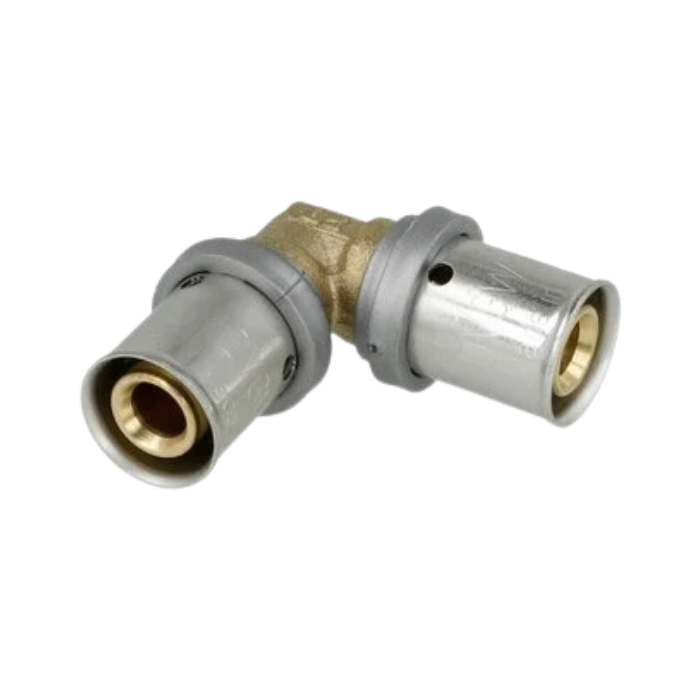

OEG 90° press elbow 16 mm
Price excl. VAT€ 3,99Price incl. VAT€ 4,83
Another 15 In stock
OEG 90° press elbow 16 mm for clean right-angle connections of multilayer composite pipes.
Read more
- Quality fitting from OEG
- 90° elbow without size reduction
- Compatible with TH and U press tools
- Brass CW617N with SilverTec coating
- EPDM sealing ring
- Visual leak detection when not pressed
- Visual leak detection when not pressed
Compact 90° press elbow for precise pipe routing
The OEG 90° press elbow 16 mm is designed for installations where pipes need to be routed at a right angle in confined spaces.
TH Contour for secure pressing
The TH Contour ensures even compression around the multilayer pipe. Together with the EPDM seal, it provides a durable, leak-free joint.
Maintains smooth flow
The fixed 90° shape avoids tight bends, helping to maintain consistent flow and system efficiency.
Commonly used in compact systems
Widely applied in radiator connections and plumbing installations in residential buildings.
Part of the OEG press fitting range
Combine with installation materials for a complete solution.
| Generals | |
|---|---|
| Item number | 340058 |
| EAN Code | 4055668011291 |
| Price excl. VAT | € 3,99 |
| Price incl. VAT | € 4,83 |
| Sizes ((LxWxH):) | 4 x 2 x 2 cm |
| Specification list | |
| Type | 90° elbow |
| Connection size | 16 x 2 mm |
| Press contour | TH / U |
| Material | Brass CW617N |
| Seal | EPDM |
| Max. working pressure | 10 bar |
| Max. operating temperature | 95 °C |
| Application | Press contour TH, Press contour U, Suitable for surface and ceiling cooling, Suitable for surface and ceiling heating, Suitable for sanitary installations, Suitable for drinking water, not pressed, leaking, Suitable for oil-free compressed air application |
| Weight | 0.07 kg |
Possibly also interesting

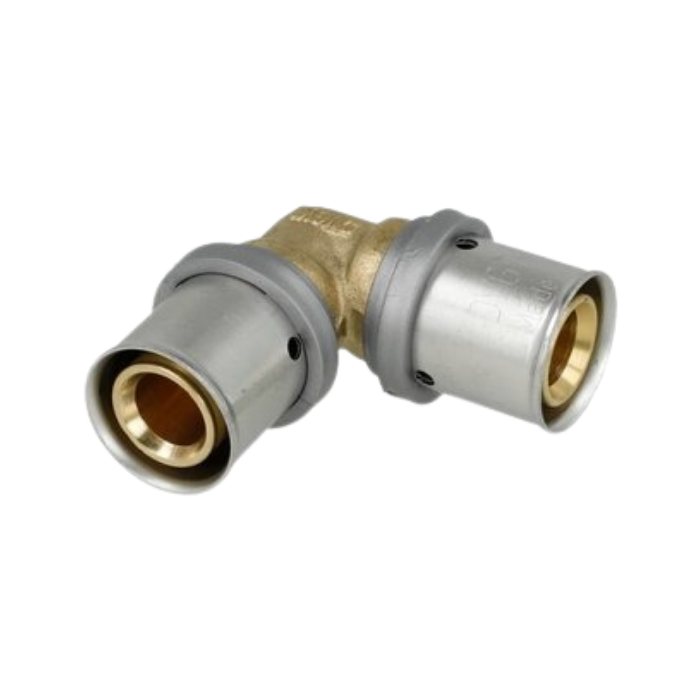

OEG 90° press elbow 20 mm
Item no. 340060EAN 4055668011307
Price excl. VAT€ 4,23Price incl. VAT€ 5,12
In stock
Added
OEG 90° press elbow 26 mm
Item no. 340062EAN 4055668011314
Price excl. VAT€ 8,06Price incl. VAT€ 9,75
In stock
Added

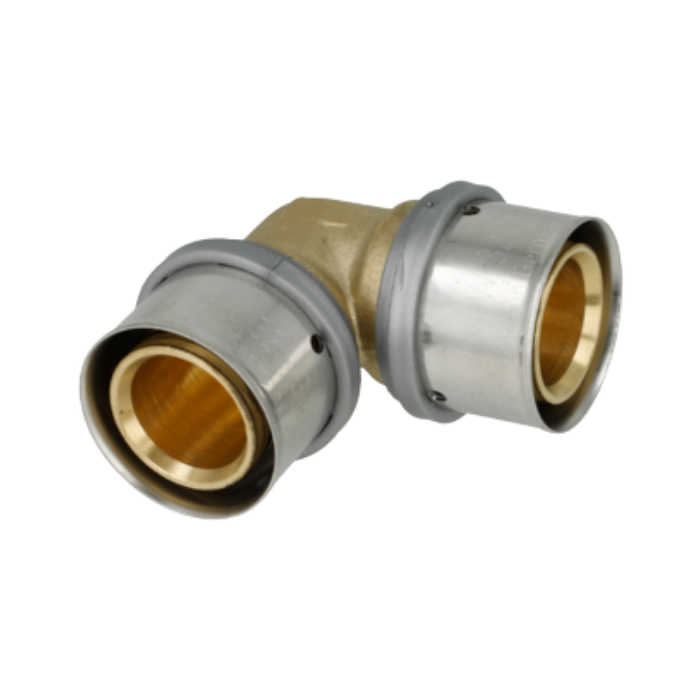

OEG 90° press elbow 32 mm
