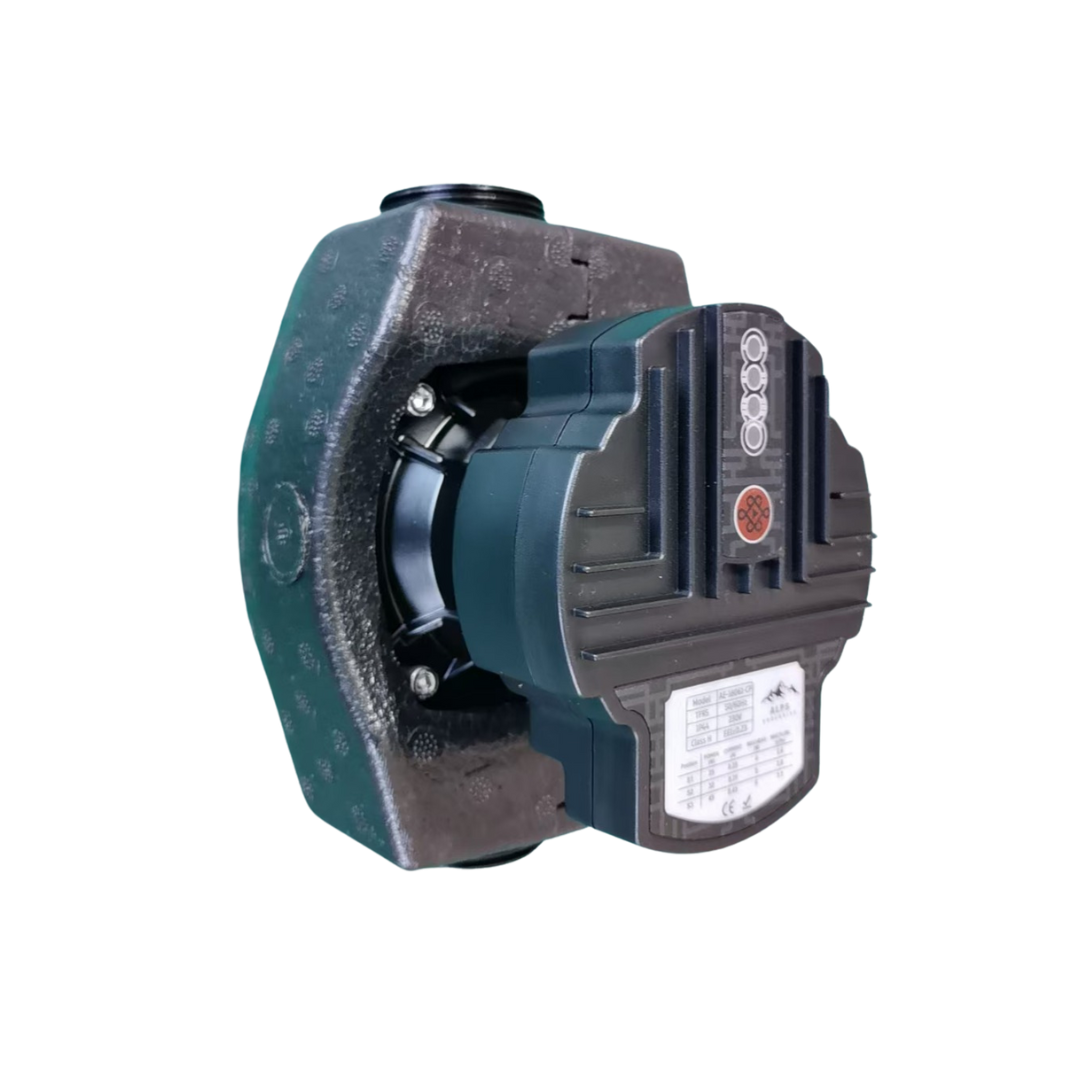

ALPS EXCLUSIVE AE-18061-CP - Circulation pump DN25 (180 mm, energy-efficient)
Price excl. VAT€ 115,66Price incl. VAT€ 139,95
Another 226 In stock
ALPS EXCLUSIVE AE-18061-CP circulation pump DN25 (180 mm). Energy-efficient with Auto-mode, three speeds and quiet operation. Standard size for larger systems.
Read more
Other variants
- Standard circulation pump DN25, 180 mm installation
- Three speeds + Auto-mode
- Energy-efficient A-label motor

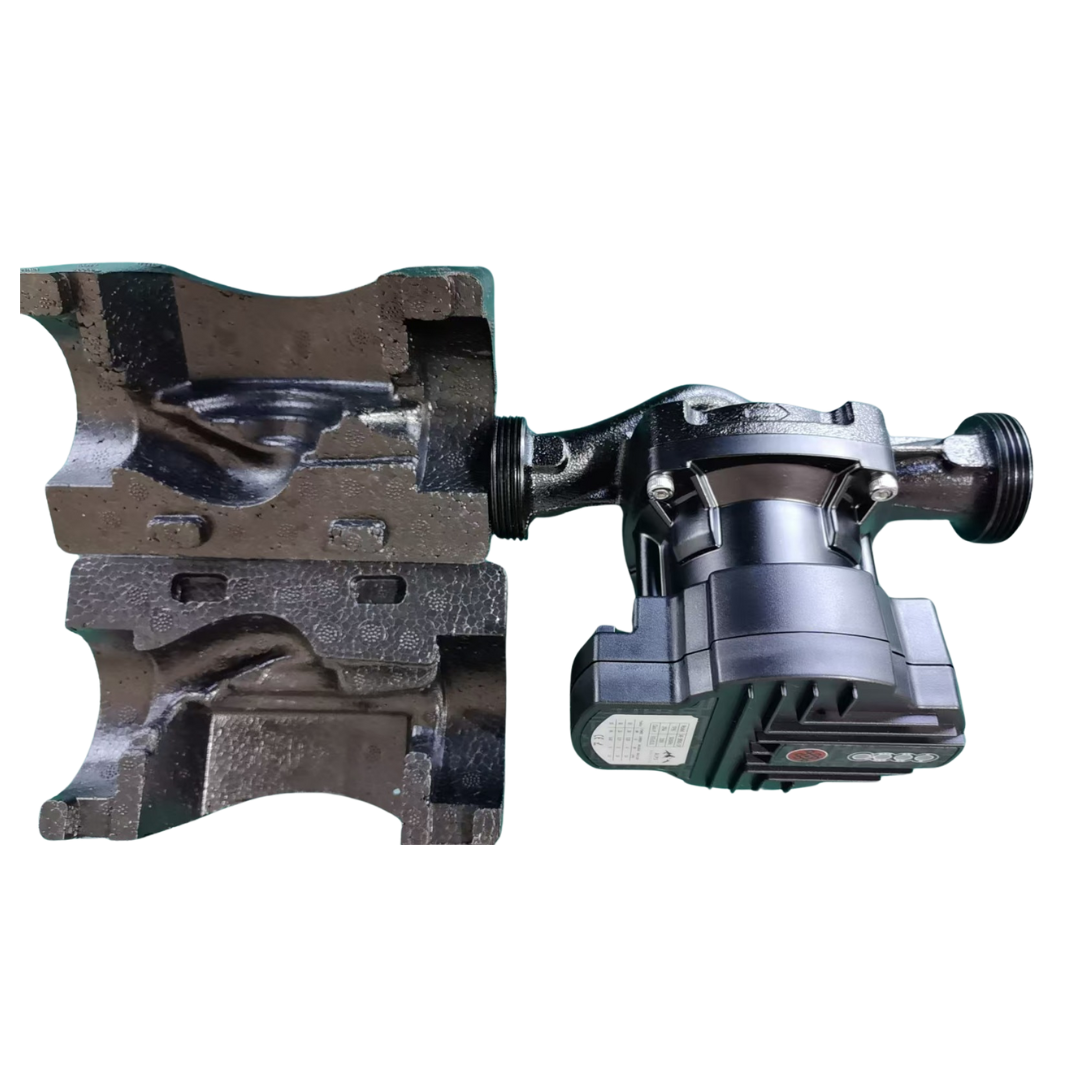

- Supplied with thermal insulation
- Includes DN40 → DN25 adapter fittings
- Quiet operation for residential and commercial use
- Universal applicability for larger installations
Universal circulation pump for larger systems
The ALPS EXCLUSIVE AE-18061-CP is a powerful circulation pump for DN25 pipes with a 180 mm installation length. This standard size makes it the ideal choice for larger heating systems and new installations. The pump combines quiet operation with energy efficiency, making it both practical and sustainable.
Technical features
The AE-18061-CP offers three manually selectable speeds and an automatic pressure-controlled mode (Auto-mode). In Auto-mode, the flow rate adjusts dynamically to the current heating demand, reducing energy use while maintaining comfort. Thermal insulation minimizes heat loss. Standard connections are DN25 (G 1" F female), supplied with adapter fittings from DN40 (G 1 1/2" M male).
Applications
This circulation pump is used in larger heating systems, underfloor heating and cooling circuits. With its 180 mm installation length, it fits most standard setups in the industry. Its quiet operation makes it suitable for both residential and commercial environments. For installers, it is a universal choice that is easy to integrate.
Conclusion and recommendation
The ALPS EXCLUSIVE AE-18061-CP is the ideal solution for installers looking for a reliable, energy-efficient and universal circulation pump. With Auto-mode, three speeds and included adapter fittings, this model offers wide applicability and easy installation.
Support from Hewa
Hewa supplies the ALPS EXCLUSIVE AE-18061-CP as part of a comprehensive range of circulation pumps and heating components. Installers benefit from documentation, support and reliable delivery. Contact us for advice or a tailored quotation.
| Generals | |
|---|---|
| Item number | 392518 |
| EAN Code | 8721225900327 |
| Price excl. VAT | € 115,66 |
| Price incl. VAT | € 139,95 |
| Sizes ((LxWxH):) | 14 x 12 x 18 cm |
| Specification list | |
| Connection size | G 1 1/2" F |
| Threaded connection | G 1" F |
| Head (m) | 6 m |
| Operation mode | Automatic, Constant pressure, Proportional pressure, Constant speed |
| Maximum flow rate (m³) | 2.4 m³ |
| Plug type | 230 V: Molex HX 45001-RT | HX 55001-3R |
| Cable length (m) | 2.5 m |
| Maximum operating pressure (bar) | 10 bar |
| Media temperature (°C) | 2 - 110 °C |
| Protection | IP44 |
| Voltage (V) | 230 V |
| Noise level (dB) | 37 dB |
| Power (W) | 45 W |
| Suitable for | Water |
| Total length (mm) | 180 mm |
