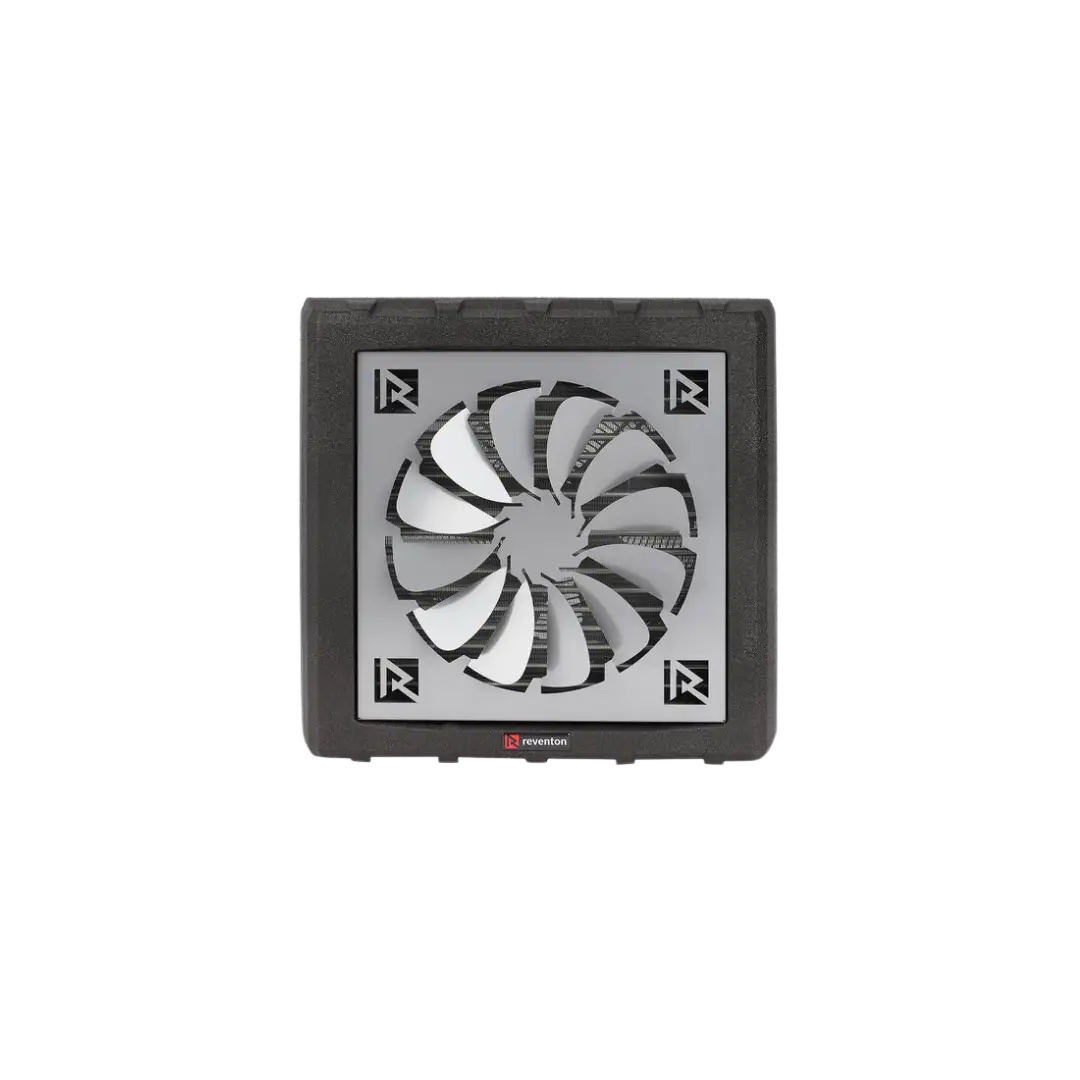

Reventon DHC-3S-1766 - Destratification fan

Smart air circulation for lower costs and greater comfort

Why use a destratification fan?

In tall buildings, warm air automatically rises to the ceiling, while the lower layers remain cold. This phenomenon – stratification – not only causes discomfort, but also leads to unnecessarily high energy costs. The Reventon DHC-3S-1766 effectively solves this problem by recirculating warm air from above back to the working areas. This creates an even temperature distribution and means your heating system does not have to work as hard.

Efficient and sustainable

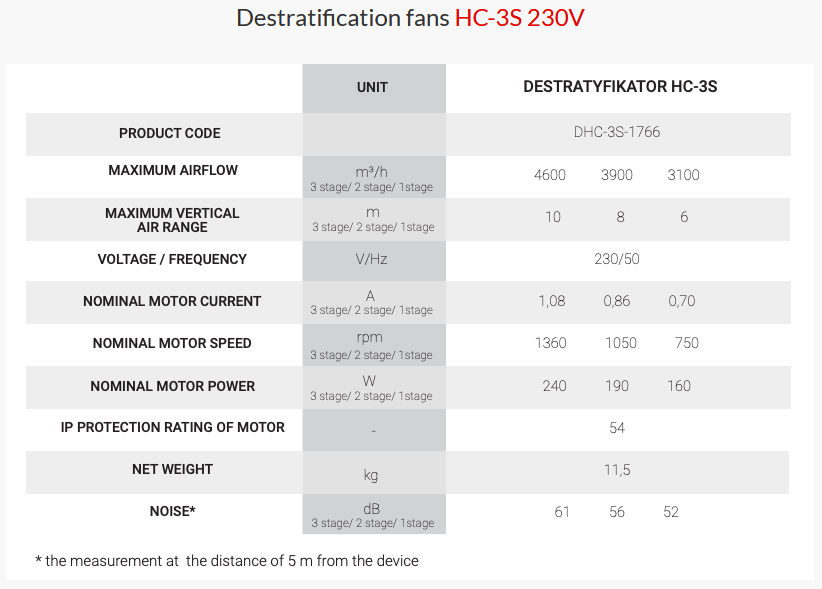

With a maximum air flow of 4,600 m³/h and a range of up to 10 metres, the DHC-3S-1766 is capable of moving large volumes of air. The energy-efficient 3-speed motor operates efficiently and contributes to immediate savings on energy costs.

The unit has an IP54 protection rating and a robust EPP housing, which is lightweight yet very strong, insulating and recyclable.

Comfortable and quiet

Despite its powerful performance, the DHC-3S-1766 is surprisingly quiet. With a noise level of only 52–61 dB (at 5 metres), it is ideal for use in areas where people work, exercise or spend time. Think of warehouses, logistics centres, workshops, sports halls or event halls.

Flexible installation and operation

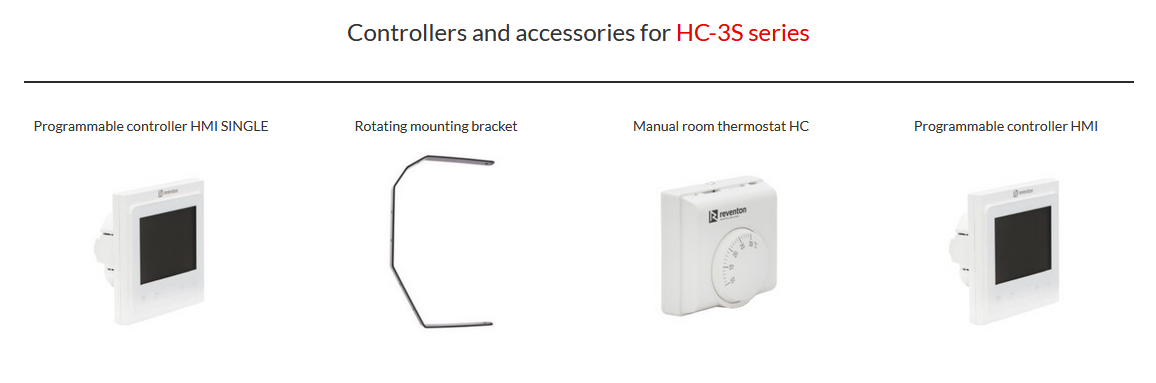

The destratification fan is easy to install in both new and existing buildings. With the optional swivel mounting bracket, the unit can be positioned in multiple directions to optimise air circulation in the space. Various control options are available:

• Standard 3-position controller with thermostat
• Advanced HMI controller with programmable functions, automatic speed control and integration into building management systems via Modbus

Practical advantages

The DHC-3S-1766 is not only powerful, but also easy to maintain. Thanks to its well thought-out design, periodic cleaning is easy and the service life is long. This makes the fan a sustainable investment that pays for itself in a short time through energy savings.

Applications

The Reventon DHC-3S-1766 is widely applicable in, among other things:

• Warehouses and distribution centres
• Production halls and workshops
• Sports facilities and event halls
• Large shops or showrooms
• Public buildings with high ceilings

Hewa: your partner for efficient climate solutions

At Hewa, we help installers to realise sustainable and energy-efficient climate systems. Would you like to combine this fan with heating solutions such as heat pumps or heat storage in buffer tanks? We are happy to think along with you and deliver quickly from stock.

Ready to save energy?

With the Reventon DHC-3S-1766, you are choosing a smart, sustainable and efficient way to improve your indoor climate. Less heat loss, lower costs and greater comfort – that's what this destratification fan delivers.
