Lamborghini Smeraldo 27-3 + 2x 12K - Multi-split air conditioning combination (7.9 kW / 27,000 BTU)

Versatile solution for larger spaces with expansion option

The Lamborghini Caloreclima Smeraldo 27-3 + 2x 12K is a smart and powerful multi-split combination that is ideal for larger homes, practical situations or light commercial applications. The set consists of a 7.9 kW outdoor unit and two wall-mounted models of 3.5 kW (12K) each, with the option of expanding to a third indoor unit.

This configuration offers flexibility and capacity: you can cool and heat two spacious rooms independently of each other, with the option of adding a third zone at a later date.

Advantages for installers

As an installer, you benefit from a well-thought-out combination:

• Pre-filled outdoor unit with R32 for quick installation
• Built-in WiFi in both indoor units for easy configuration
• Logical connection structure with room for expansion
• Energy-efficient control via DC inverter technology
• Lightweight indoor units with click frame for quick installation

Thanks to its quiet operation of only 22 dB(A) (lowest setting), this solution is also suitable for noise-sensitive environments such as bedrooms, consultation rooms or meeting rooms.

Technical performance you can rely on

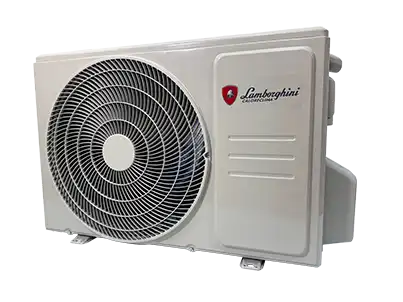

The outdoor unit (Smeraldo 27-3) delivers a nominal cooling capacity of 7.9 kW and a heating capacity of up to 8.4 kW. The two connected 12K wall-mounted models operate independently, each with a cooling capacity of 3.5 kW – ideal for rooms from 30 to 45 m² per unit.

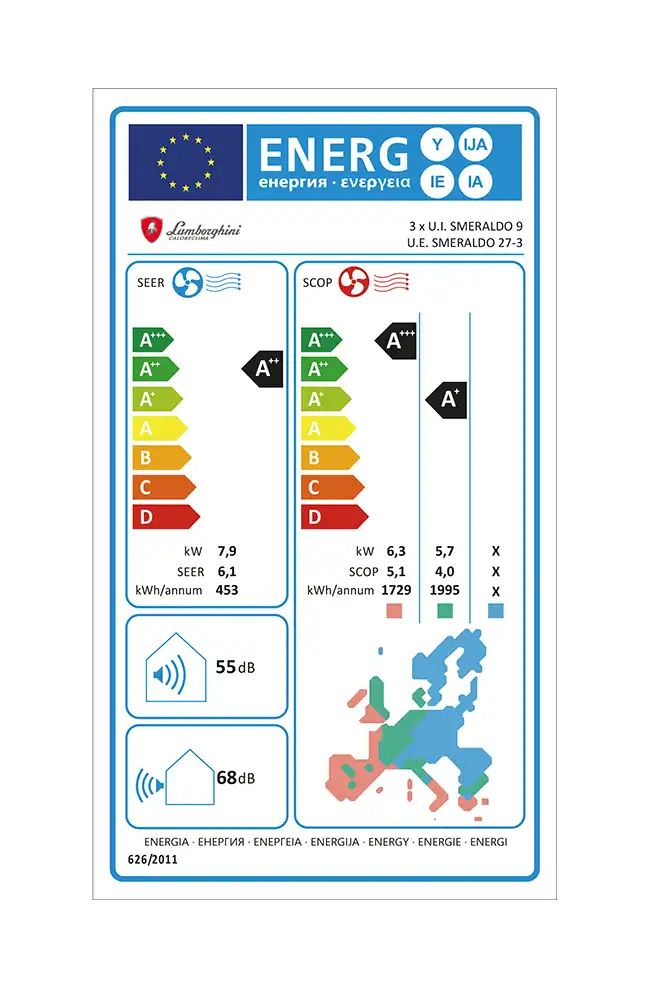

• SEER: 6.0 (class A++)
• SCOP: 4.0 (class A+)
• Refrigerant: R32 (environmentally friendly, GWP 675)
• Indoor unit sound pressure: 22 – 43 dB(A)

Thanks to inverter technology, the compressor operates smoothly and energy-efficiently, even when only one room is in use.

Smart features included as standard

Each 12K indoor unit is equipped with:

• WiFi module (included free of charge)
• Voice control via Alexa or Google Home
• Super Ioniser for active air purification
• Quadruple air filtration (Cold Catalyst, Active Carbon, Silver Ion, BioHEPA)
• i-Clean function for automatic drying cycle
• Boost mode, night programme, weekly timer

Operation is easy via the remote control or via the app on a smartphone or tablet – ideal for end users.

Support from Hewa

At Hewa, you can count on:

• Combination advice for pipe routes, distributors and extensions
• Installation accessories such as wall brackets, Y-distributors and pipe sets from stock
• Documentation and configuration assistance for multiple connections
• Delivery guarantee per project phase, even when expanding to a third indoor unit

Whether you want to equip a home with multiple zones or control each room in your practice, we can help.

Important installation requirements

Like all systems with fluorinated refrigerants, this multi-split combination may only be installed by a certified F-gas technician, as stipulated in the European F-gas Regulation (EU Regulation No. 517/2014).

Want to know more or order directly?

Would you like to know whether this combination is suitable for your project or situation? Please contact the Hewa team. We will help you with a customised configuration and can deliver the necessary materials directly from stock.

Request your quote now or call us (+31 (0)85 060 8876) for technical advice.
