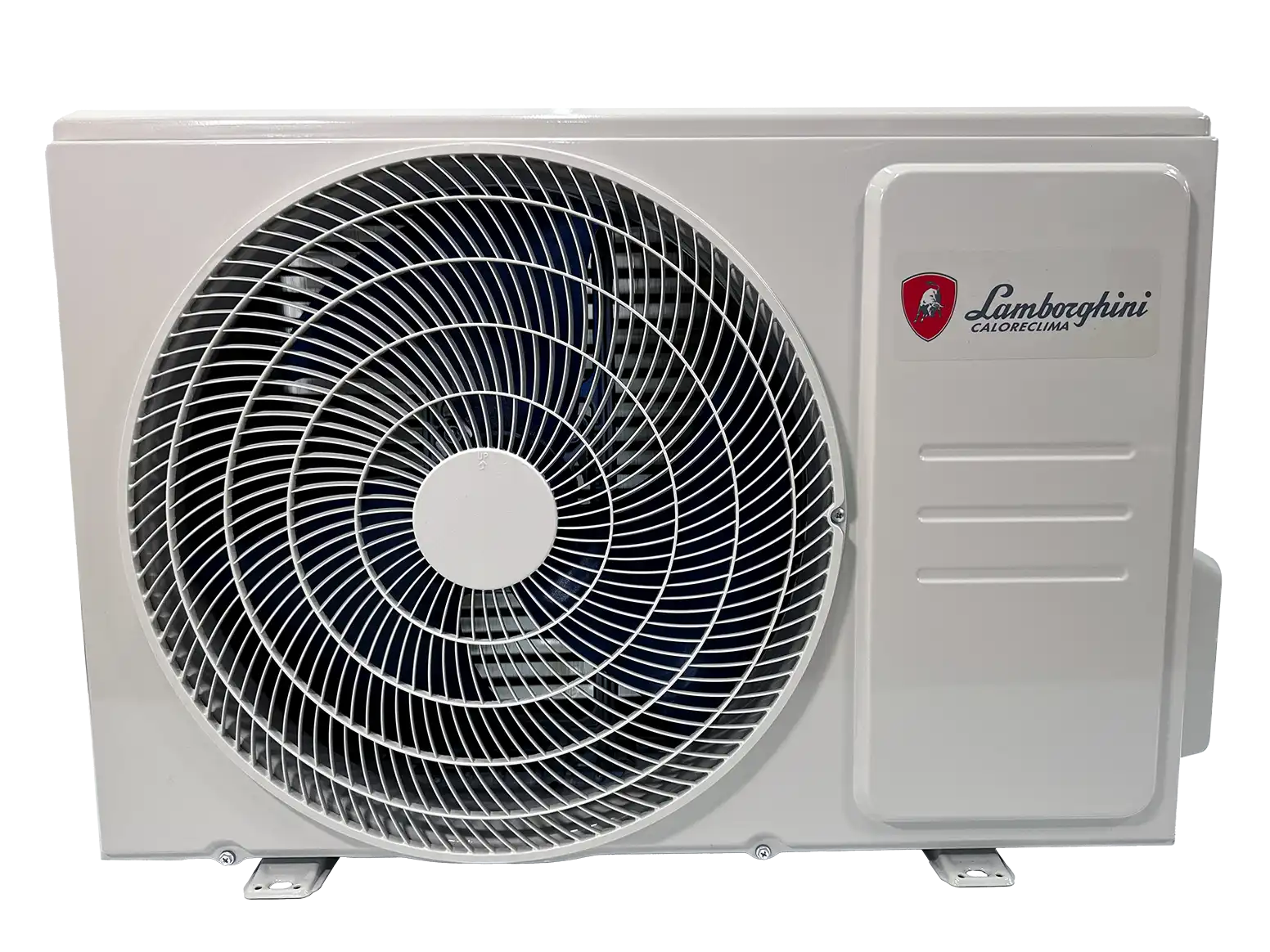

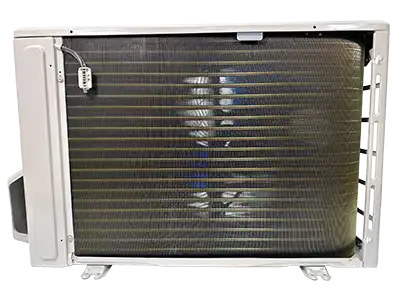

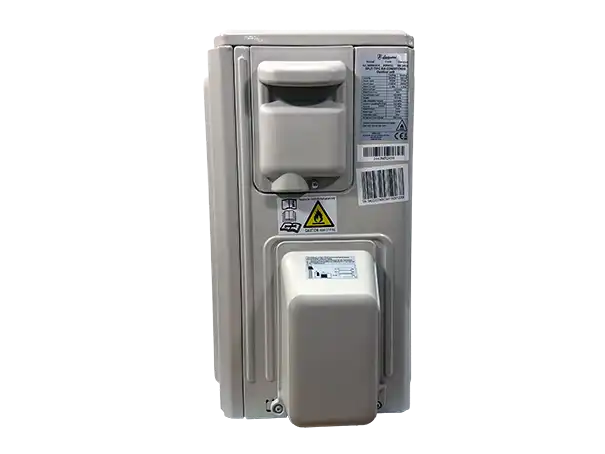

Lamborghini Caloreclima 18-2 - Multi-split air conditioning outdoor unit (5.3 kW)

One outdoor unit, two climate zones

Would you like to heat or cool two rooms independently of each other without installing multiple outdoor units? The Lamborghini Caloreclima 18-2 offers exactly that solution. This multi-split outdoor unit has a nominal cooling capacity of 5.3 kW and is designed for connection to two indoor units of, for example, 2.5 or 3.5 kW.

Ideal for homes, apartments, office floors or practical situations.

Thanks to its compact size and quiet noise profile, the unit is ideal for installation on a balcony, on the façade or on a roof – without compromising on performance.

Efficiency and comfort in balance

The outdoor unit is equipped with an advanced DC inverter compressor, which continuously adjusts the speed to the current heat demand. This prevents unnecessary peak loads and ensures quieter, more efficient operation.

With a SEER of 6.3 and a SCOP of 4.0, this unit is in energy class A++ and meets the highest requirements for long-term use. The system also performs reliably in winter, with a heating capacity of up to 5.57 kW.

The R32 refrigerant charge is not only powerful, but also more environmentally friendly thanks to its low GWP value of 675. This means that the system complies with current and future regulations.

Practical advantage for installers

This outdoor unit has been developed for quick and easy installation. Everything revolves around simplicity, reliability and flexibility:

• Pre-filled pipes with R32 save installation time
• Connection to 230V / 1-phase makes it versatile

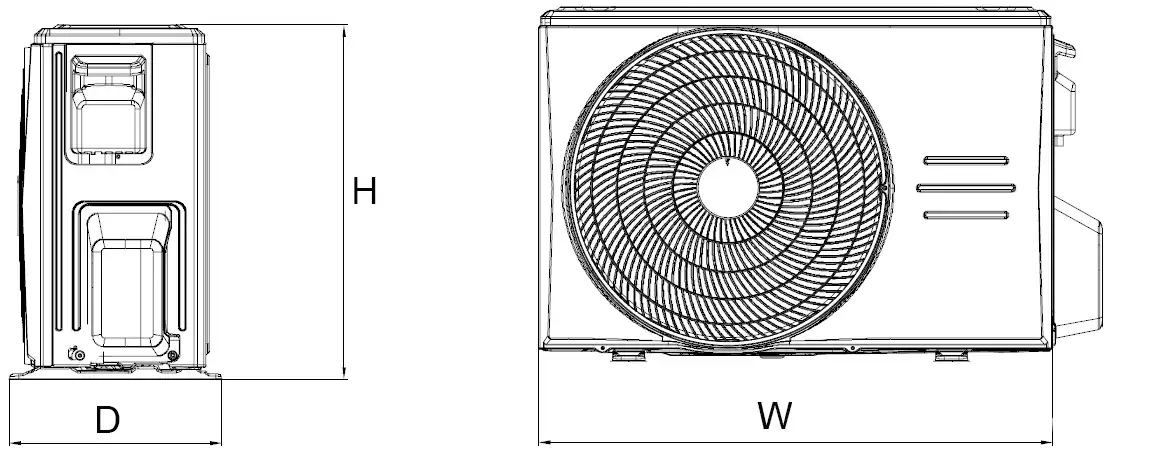

• Compact dimensions and low weight facilitate installation
• Easy connection to indoor units via clearly arranged connection ports
• Maximum sound pressure of only 54 dB(A) – suitable for densely built-up areas

Whether you are working on a renovation or a new construction project, this unit fits effortlessly into your installation planning.

Technical support from Hewa

Hewa helps you with every step of your multi-split project. We deliver the outdoor unit and compatible indoor units (such as the Lamborghini 9K or 12K) from stock and provide support with:

• Combination tables and piping diagrams
• Installation drawings and electrical plans
• Advice on pipe routes, Y-distributors and drainage
• Accessory packages such as wall brackets, frames and pipe ducts
• Project support for larger installations or capacity calculations

This prevents surprises during installation and delivery.

Important note

According to the European F-gas Regulation (EU Regulation 517/2014), this product may only be installed by a certified F-gas technician. This applies to the entire installation, including pipe connections and commissioning.

Ready to get started?

Would you like to use this outdoor unit in a project with two zones? Then please contact us. We will be happy to advise you on compatible indoor units, installation materials and a customised configuration.

Request a quote now or contact our technical department.
