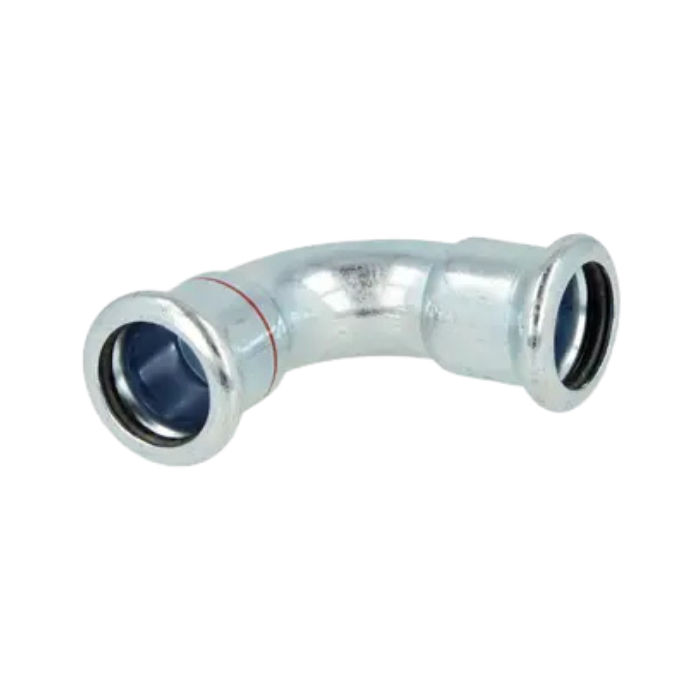

OEG 802004503 - C-steel press fitting M-profile 90° elbow (22 mm)

Price excl. VAT€ 2,38Price incl. VAT€ 2,88

Another 26 In stock

Item number: 344503
EAN: 4055668022426

C-steel 90° elbow press fitting with M-profile for 22 mm pipes. For right-angle direction changes in heating and HVAC systems. Read more

Standard 90° elbow for 22 mm pipes
F/F design for compact installation
Compatible with M-profile press jaws
Leak detection on unpressed connections
Permanently sealed after pressing
Corrosion-resistant C-steel Q195
Fast installation without welding

Compare

Go to comparison

Right-angle 90° elbow for compact pipe routing

In professional heating and HVAC installations, sharp direction changes are often required. The OEG 802004503 C-steel press fitting M-profile 90° elbow (22 mm) provides a reliable solution for installers.

Controlled installation with leak detection

The integrated O-ring ensures that unpressed connections will intentionally leak, making installation errors easy to detect during pressure testing. Once pressed, the fitting provides a permanently sealed connection.

Durable and corrosion-resistant construction

Manufactured from electro-galvanised C-steel Q195, this elbow fitting offers long-term reliability in heating, HVAC and oil-free compressed air systems.

Efficient installation with M-profile tools

No welding or soldering required. Fully compatible with M-profile press tools for fast, safe and consistent installation.

Complete your system

Combine this elbow with compatible components from connection materials.

Support from Hewa

Hewa supports installers with technical expertise, documentation and reliable stock availability.

Generals
Item number	344503
EAN Code	4055668022426
Price excl. VAT	€ 2,38
Price incl. VAT	€ 2,88
Sizes ((LxWxH):)	4 x 3 x 3 cm
Specification list
Type	90° elbow F/F
Connection size	22 mm
Press contour	M
Material	carbon steel Q195
Max. working pressure	16 bar
Max. operating temperature	-10 °C to +110 °C
Weight	0.08 kg
